Using the Manage Maps Feature in Garmin Express for the zūmo XT

You can use the Manage Maps feature in the Garmin Express™ software to add or remove available maps from your device. This can be helpful if you accidentally removed needed map files from your device, or if you would like to change which maps are currently installed.

If you need to reinstall maps currently installed on your automotive device due to an issue with the map, or the Manage Maps option is not available, see Reinstall or Change Map on an Automotive Device instead.


Wi-Fi updates are recommended for the zūmo® XT GPS navigator. See Wireless Map and Software Update Instructions for instructions.

  • Garmin Express™ software can be used to move mapping to a memory card.

  • The zūmo® XT Wi-Fi feature cannot be used for this process.

To Manage Maps in Garmin Express:

1. Open Garmin Express and select your zūmo® XT

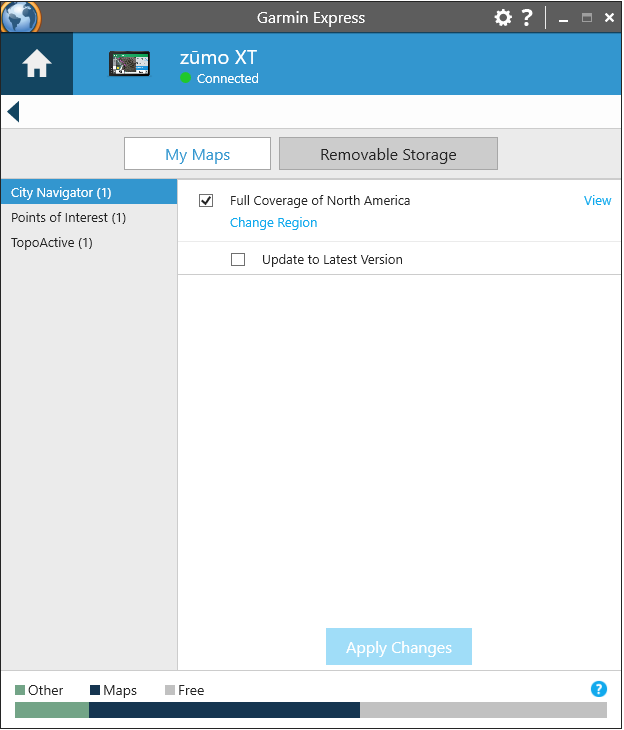

2. Click Manage Maps



3. Select any map regions you want installed on your zūmo® XT

    • Check marks indicate maps currently installed on your zūmo® XT.
    • Click View to see the map coverage for a region.



4. Click Points of Interest or TopoActive maps to manage other types of mapping

NOTE: Do not uninstall any mapping required to remain on the device.  For example, iOverlander Points of Interest are required for the device to operate.  Removing City Navigator maps would make the device unable to route.  See  "No Detailed Maps Found That Support Routing" or "No Map Data Available" Message on a Garmin Automotive Device if you accidentally removed your City Navigator map.

    • Uncheck any maps you want to remove from your zūmo® XT
      • These maps can be reinstalled later.
    • Some maps will have an information icon.
      • Some maps are required for your device to operate and cannot be removed.
      • Some maps may be too large to fit on your device's internal storage.
    • The bar at the bottom will show the amount of free space remaining on your zūmo® XT.
      • You will see the free space decrease or increase as you as choose mapping to add or remove.

5. You can also install mapping to a memory card if your zūmo® XT is low on space

    • Click the Removable Storage tab and select the option of your choice.

6. Click Move

7. Click Apply Changes once you have chosen all the mapping you want to add or remove



8. Click Continue
