Pairing Your Rally 100 With A Right Side Upgrade Pedal

The following Rally 100 series pedals are capable of upgrading to a dual sided power meter with the purchase of a right side upgrade pedal:

• Rally™ RK100

• Rally™ RS100

• Rally™ XC100

Your left side Rally pedal must first be paired to your compatible Garmin Edge® cycling computer or the Garmin Connect™ App. Refer to your compatible Edge's owner's manual for steps to pair.

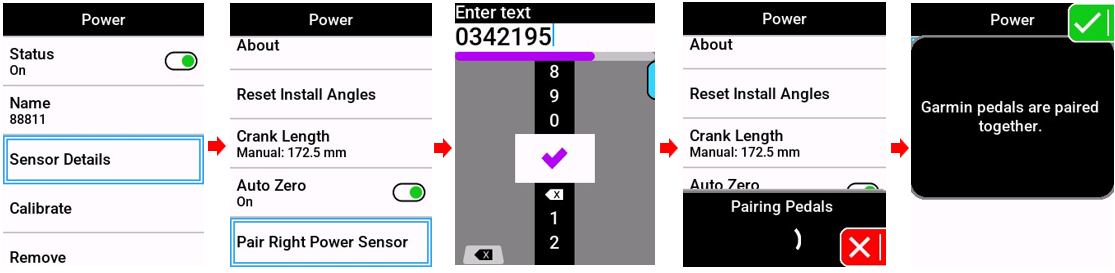

Pairing on Edge

NOTE: Steps may vary slightly between Edge models. The follow screenshots are shown on an Edge® 540 cycling computer.

1. Select the Edge's list of Sensors.

2. Select the Rally 100 power meter.

3. Select Sensor Details.

4. Select Pair Right Power Sensor.

5. Enter the right side pedal's 7 digit ANT ID (etched on the spindle).

6. Select Enter.

7. Allow the Edge to connect the right side, this may take several minutes.

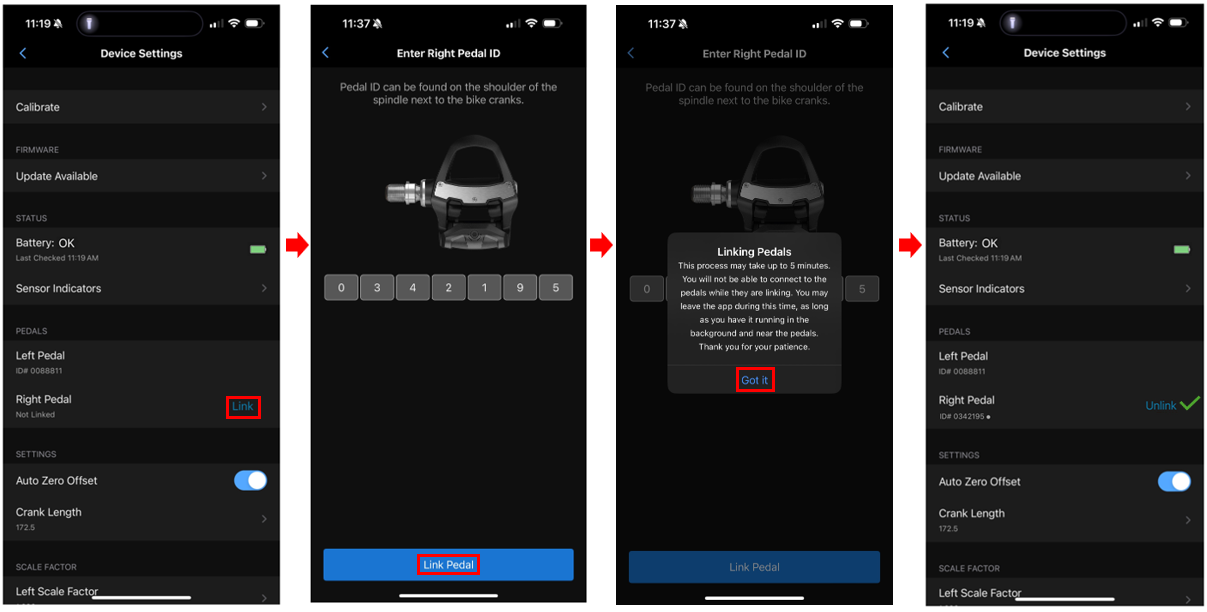

Pairing on the Garmin Connect App

NOTE: If you use a 3rd party cycling computer or compatible Garmin watch, you will need to use these steps to pair the right side pedal.

1. Open the Garmin Connect app.

2. Access the menu by selecting More (bottom right).

3. Select the Rally power meter.

4. Select General.

5. Select Link (next to Right Pedal).

6. Enter the right pedal's 7 digit ANT ID, which can be found etched on the spindle.

7. Select Link Pedal.

8. The pairing can take several minutes.

9. When the right pedal is successfully linked, you will see Unlink as the option.
