Creating, Editing, or Deleting a Trip on an Automotive Device Using Trip Planner

Creating a multiple-point trip allows navigation among several points, including shaping points. Trips can be saved to the device's internal storage for use at a later date by using Trip Planner. The device will store up to 100 trips.

This Video is a Quick and Easy way to Learn about Trip Planner.


To Create a Trip

1. Touch Apps

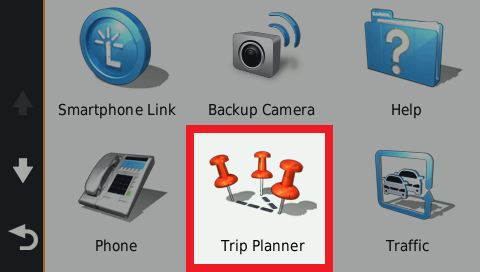

2. Touch Trip Planner

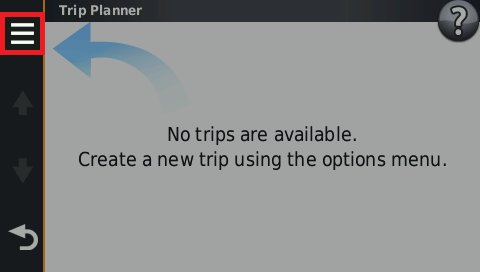

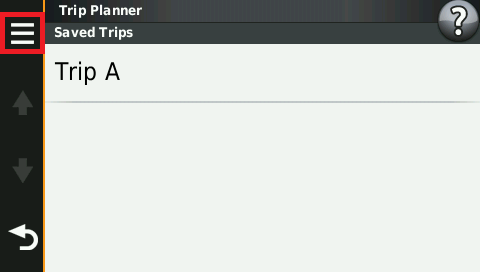

3. Touch the menu button

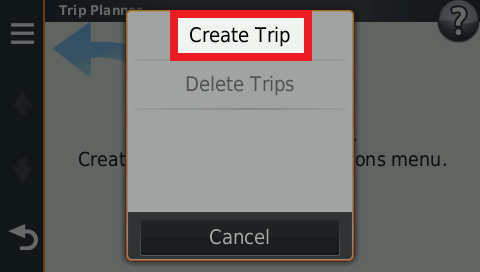

4. Touch Create Trip

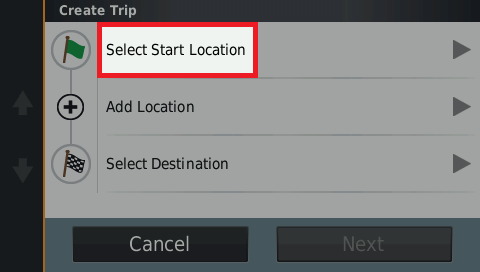

5. Touch Select Start Location
NOTE: The Start Location is the first stop on the route. You can use your current location as the starting location, but it isn't necessary. The device will skip your current location if that is where you are when it begins to navigate.
6. Locate a starting point using the search options

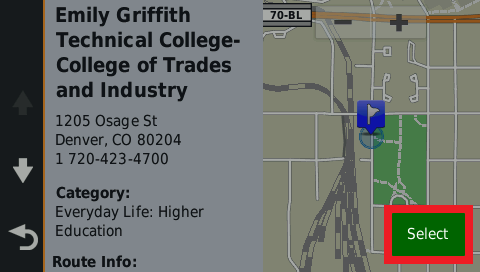

7. Touch a start location and touch Select

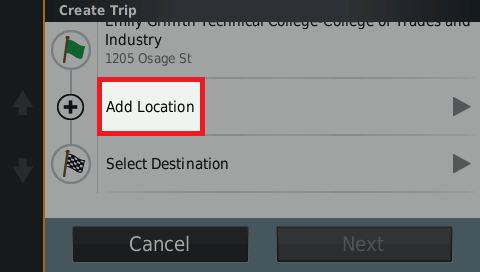

8. Touch Add Location to add a second point
9. Follow steps 6 through 8 to locate and add up to 30 total points.

Editing Options

Touch a location to make changes.

  • Touch the  add icon to add a stop between locations
  • Touch the  wrench icon to change a location
  • Touch  to change the order of points
    • Touch and hold the  move icon next to a point and drag it to a location on the list.

    • Touch the  delete icon to remove a point
      • Then touch Yes

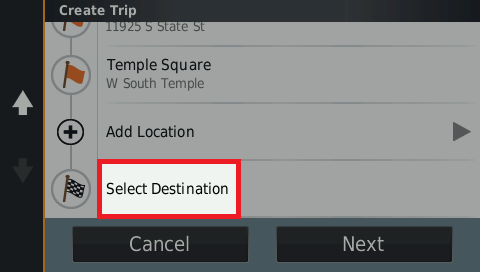

10. Touch Select Destination and follow steps 6 and 7 to select a destination

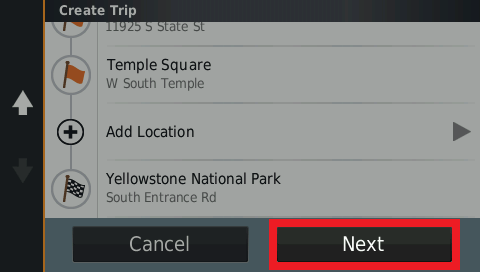

11. Touch Next. The route will now calculate

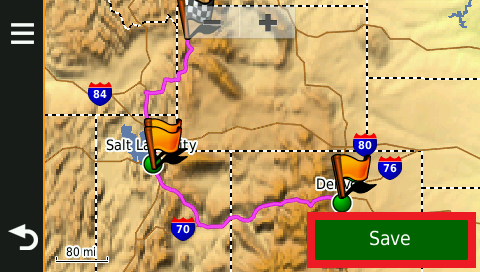

12. Touch Save

The trip is now saved to Trip Planner and can be found under Saved Trips.


To Edit a Trip

1. Touch Apps
2. Touch Trip Planner

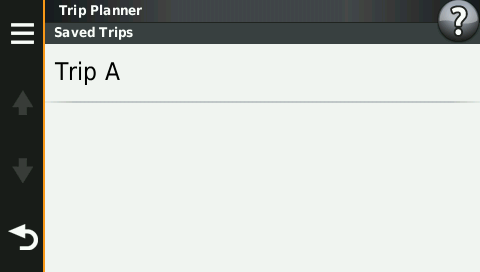

3. Touch the name of the trip

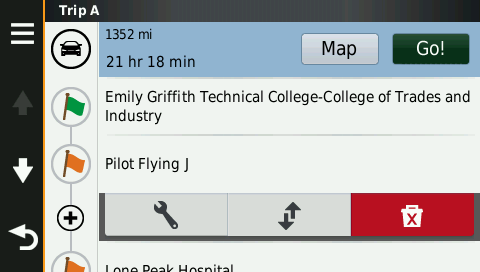

4. Touch a point to show additional options if changes need to be made.

Editing Options

  • Touch the  add icon to add a stop between locations
  • Touch the  wrench icon to change a location
  • Touch  to change the order of points
  • Touch and hold the  move icon next to a point and drag it to a location on the list

NOTE: To reverse the order of the trip, the order of points would need to be rearranged manually.  This would replace the trip originally entered and would not create a new trip.

  • Touch the  delete icon to remove a point
    • Then touch Yes

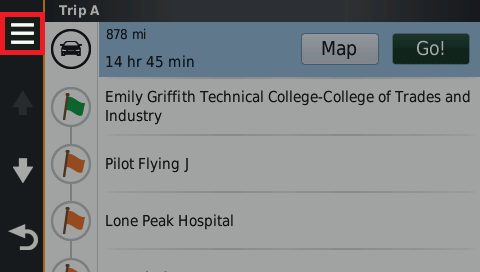

5. Touch the  menu button for additional editing options

Select from the following options:


Trip Settings

  • Rename Trip: Change the name of the trip
  • Shape Route
  • Route Preference: Designates the preferred way to have the device route the trip
  • Edit Schedule: Changes the departure and arrival times
  • Delete Trip: Removes the trip from Trip Planner
  • Optimize Order: Have the device calculate the most efficient order to travel to all the entered points
    • The start point and end point will not be changed when optimized
    • You must have at least four waypoints to optimize the order
  • View Turns: Lists turn-by-turn written directions

To Delete a Trip

1. Touch Apps

2. Touch Trip Planner

3. Touch the  menu button

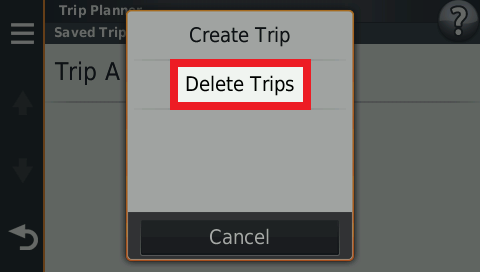

4. Touch Delete Trips

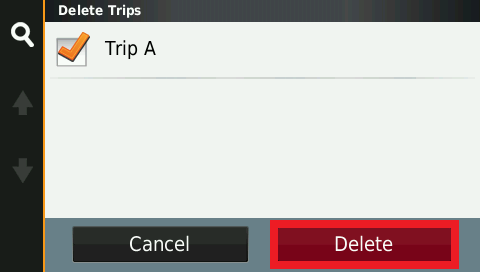

5. Select the trip(s) to delete and touch Delete

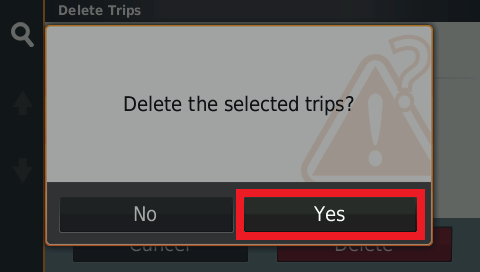

6. Touch Yes

The selected trip(s) will now be deleted.


To Navigate a Trip Using Trip Planner

1. Select Apps



2. Select Trip Planner

4. Select the Trip

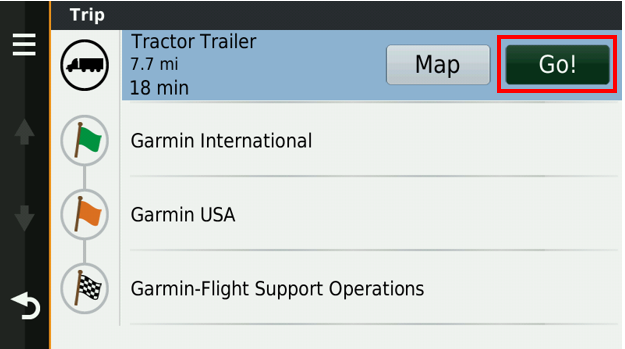

5. Touch Go

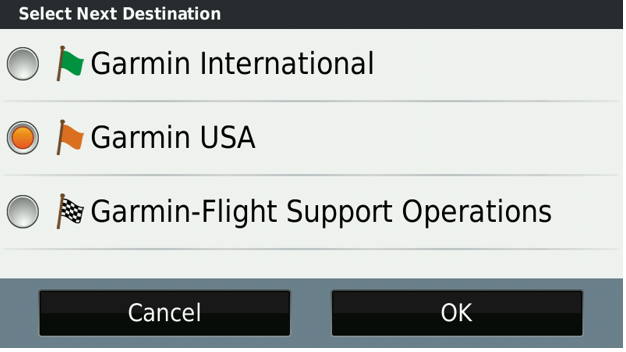

6. Select the Next Destination of the Route

  • Select the Green Flag to route from your current location to the beginning of the route and then the full trip

  • Select the Orange Flag to skip the starting location and route from your current location to the waypoint selected in the route and then the remaining trip destinations in order

  • Select the Checkered Flag to route from your current location skipping all the points in the route and taking you the quickest way to the destination point

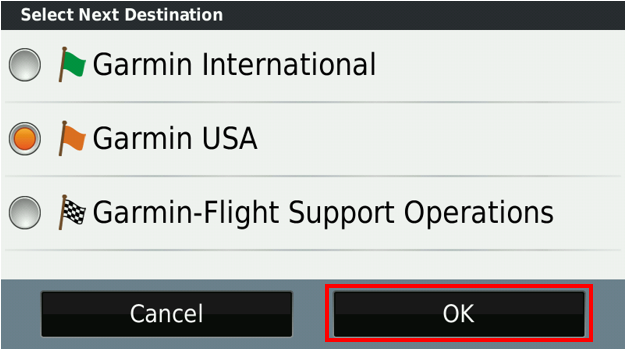

7. Touch OK

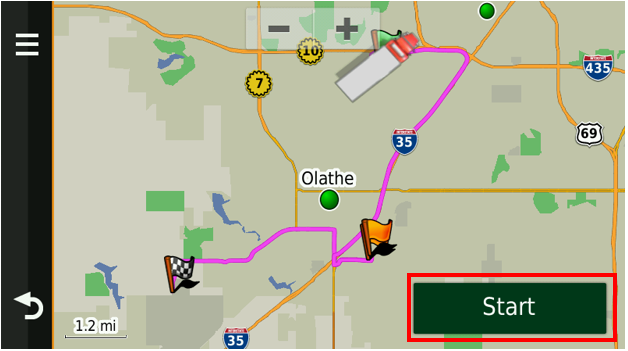

8. Touch Start
