Cortex® AIS Functionality Status

A good diagnostic tool for the functionality of transponder is to check the AIS status page.

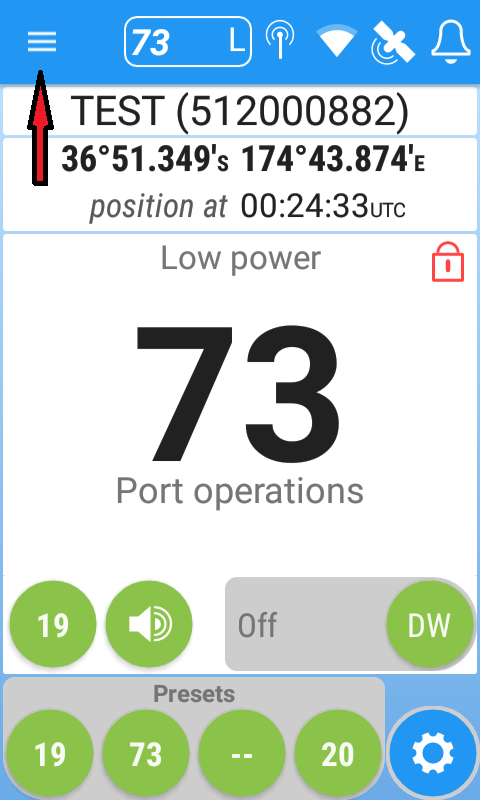

From any view-tap the menu button or icon on the handset.

Cortex AIS Functionality Status

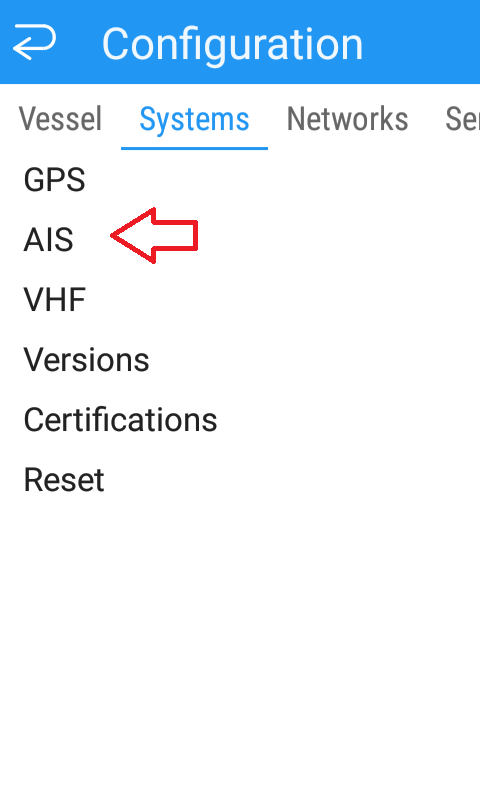

Next tap the configuration (wrench) > systems > AIS.

Cortex Configuration


Here the health of the transponder is displayed, including Transmit (TX) and Receive (RX) of both AIS channels, number of messages sent and received and RSSI which is noise around the device.

  • Typical Values: +/- 120 dBm

    • RSSI Above -77 dBm triggers a “background noise warning” (e.g. blinking green LED on XB8000 / XB6000)

    • Values above -100 dBm (e.g., -99, -98, …) indicate external noise source

Cortex AIS Functionality Ranges
