Customizing the Watch Face on a tactix 8 AMOLED Watch

Garmin tactix® 8 AMOLED watches offer the ability to customize what data is displayed on the watch face. The selected watch face may change what can be customized, what options are available, or how the data appears. The instructions below are for customizing the pre-loaded watch faces. For instructions on customizing watch faces that have been downloaded from the Connect IQ™ Store, see - How to Customize a Watch Face Through Connect IQ Store. The video below will walk you through the steps to customize your watch face.

Customizing the Watch Face

The tactix 8 AMOLED watch allows you to save your customizations to different watch face templates. You can have up to ten saved watch faces, and you can use the same template to create multiple versions of the same watch face.

  1. From the watch face, hold Watch with black circle on middle left side.

  2. Select Watch Face.

  3. PressWatch with black circle on middle left sideor Watch with black circle in lower left corner to scroll through your saved watch faces.

  4. Scroll to a saved watch face or select Add New to add a new saved watch face.

  5. Press Watch with black circle in upper right corner on the face you want to customize, then select an option.

    NOTE: Not all watch faces will have all of the following options.

    • Select Styles to change the style of the background which may include shading, color, or in some cases whether the face is digital or analog.

    • Select Data to change what data options appear.

      1. The field that is being customized will pulse and what is currently shown there will be listed at the bottom of the screen.

      2. Press Watch with black circle in upper right corner to customize the pulsing field or scroll to a different field.

      3. Scroll to see the available data options, the name of the data will show at the bottom of the screen.

      4. Press Watch with black circle in upper right corner to save the changes and move on to the next data field.

      5. Select Done after all fields have been customized.

    • Select Accent Color to change the color that is adjustable on the watch face.

    • Select Data Color to change the color of the data that appears on the watch face.

    • Select Alt. Time Zones to add or edit an alternate time zone. Alternate time zones point to the time based on a 24 hour dial, and the watch face will only show one alternate time zone at a time.

  6. Select Apply to save changes and use the current watch face.

If you are uncertain what a symbol on your watch face means, you can touch and hold on the field to be taken to the associated widget glance, or you can follow the steps above to customize the data on the watch face. When the data field you want to know more about is pulsing, it will list what the field is showing at the bottom of the screen.


Available Watch Face Templates

The watch face templates shown below can be customized using the steps above.

Watch Faces Templates Available on tactix 8 AMOLED Edition Watches

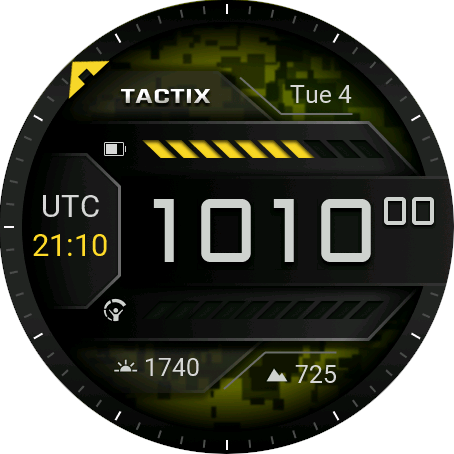

tactix8AMOLED2

Delta

This watch face will show a UTC time zone hand that corresponds with the 24 hour indicator on the watch bezel.

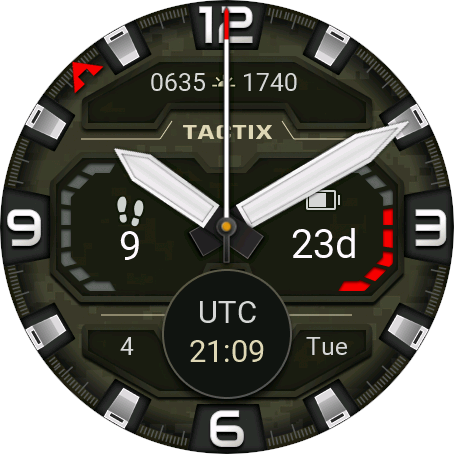

tactix8AMOLED1

Alpha

This watch face will show a UTC time zone hand that corresponds with the 24 hour indicator on the watch bezel.

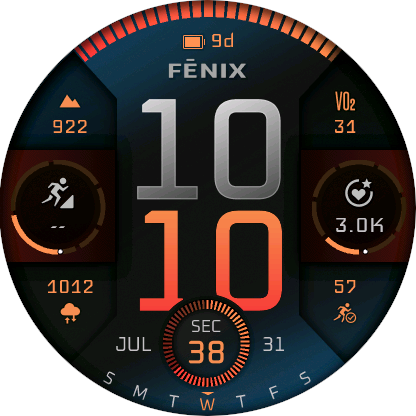

Digital Watch Face with a Gauge Data Field at the Top and 7 Text Data FieldsIron Grit

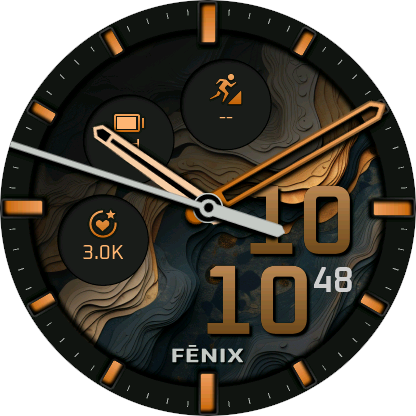

Analog Watch Face with Digital Time and 3 Circular Data Fields on a Background with Rock Striations like a Canyon Wall

Rock

Adjusting the Styles of this watch face changes the color of the time numbers and background colors.

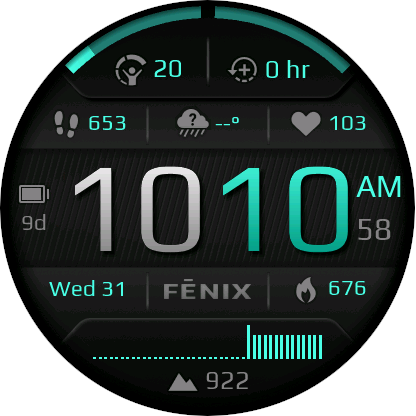

Digital watch face with data fieldsData Dash

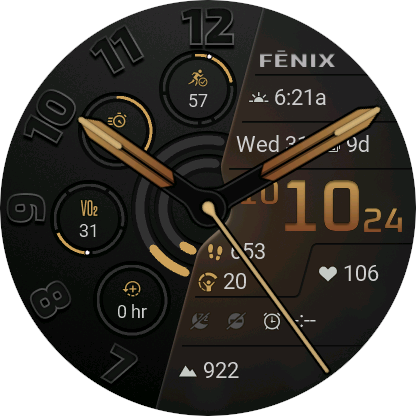

Analog Watch Face With 4 Circle Data Fields With Gauges on the Left, 2 Gauge Data Fields in the Middle, 7 Text Data FieldsFrost

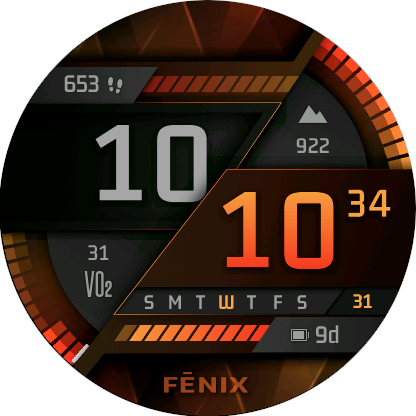

Digital Watch Face with 4 Gauge Style Data Fields

Razor

Adjusting the Styles on this watch face changes the background shading pattern.

Digital Watch Face With 3 Gauge Data Fields on Top and both Sides and 1 Circular Data field at the BottomPropulsion
Digital Watch Face With 2 Gauge Data Fields on either Side and 2 Text Data Fields on Top and Bottom

Radial Precision

Adjusting the Styles of this watch face switches between an analog or digital time option.

Digital Watch Face With 2 Gauge Data Fields on either Side, 1 Text Data Field at the Top, and 2 Text Data Fields at the BottomBold Stack

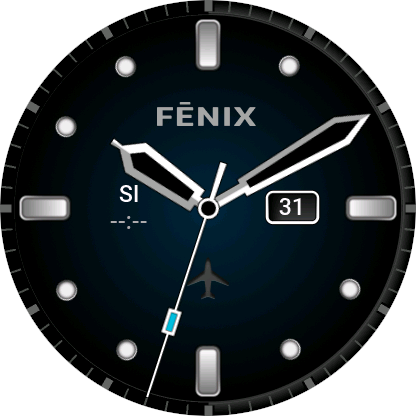

Analog Watch Face With 4 Text Data Fields

Deep Sea

This watch face can show an alternate time zone hand and track your no fly time after scuba diving.

Digital watch face with 3 data fields

Industrial

Digital watch face with data fields around the outside edge

Portal

Contours Watch Face

Contours




Deleting a Saved Watch Face

You can have up to ten saved customized watch faces. After you have saved 10 watch faces, if you want to create a new watch face, you will need to delete one of your saved customizations in order to add a new  customized watch face. Deleting a saved watch face does not delete the watch face template from your watch.

  1. From the watch face, hold Watch with black circle on middle left side .

  2. Select Watch Face.

  3. PressWatch with black circle on middle left sideor Watch with black circle in lower left corner to scroll through your saved watch faces.

  4. Press Watch with black circle in upper right corner to select the face that you want to delete.

  5. Select Delete.
