How to Manually Shape a Route on a Tread

The calculated route can be manually shaped to change its course. Adding a shaping point will allow you to customize the calculated route to take a certain road or go through a certain area without adding a via point or destination to the route.

To Manually Shape the Route:

1. Touch anywhere on the map

2. Touch Shape Route

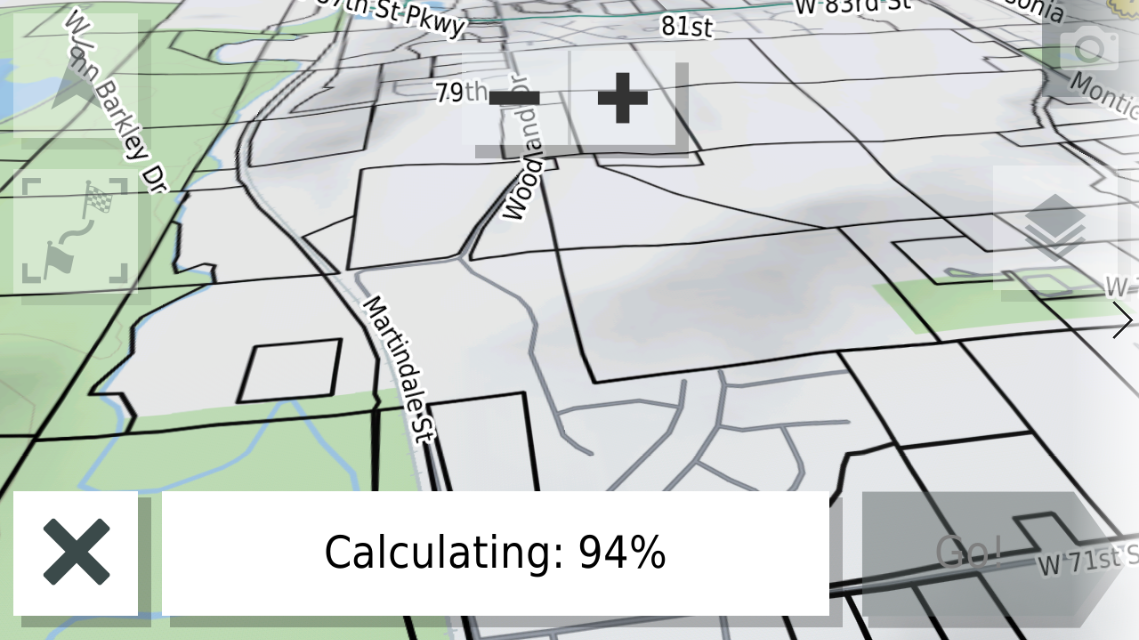

Allow the route time to calculate



4. Touch the map again to add another location

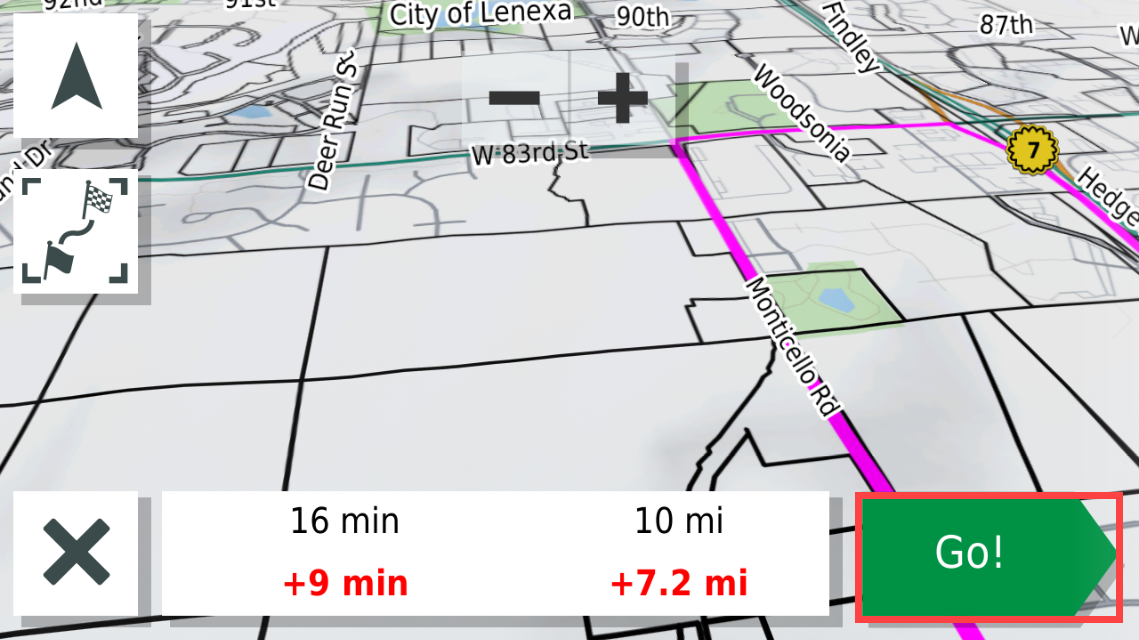

5. When you have finished shaping the route, touch Go!



This will shape the route to the way you want it to go. You can add up to 30 shaping points to your route.


These Changes Can be Saved to Your Route for Future Use by Going into Route Planner:

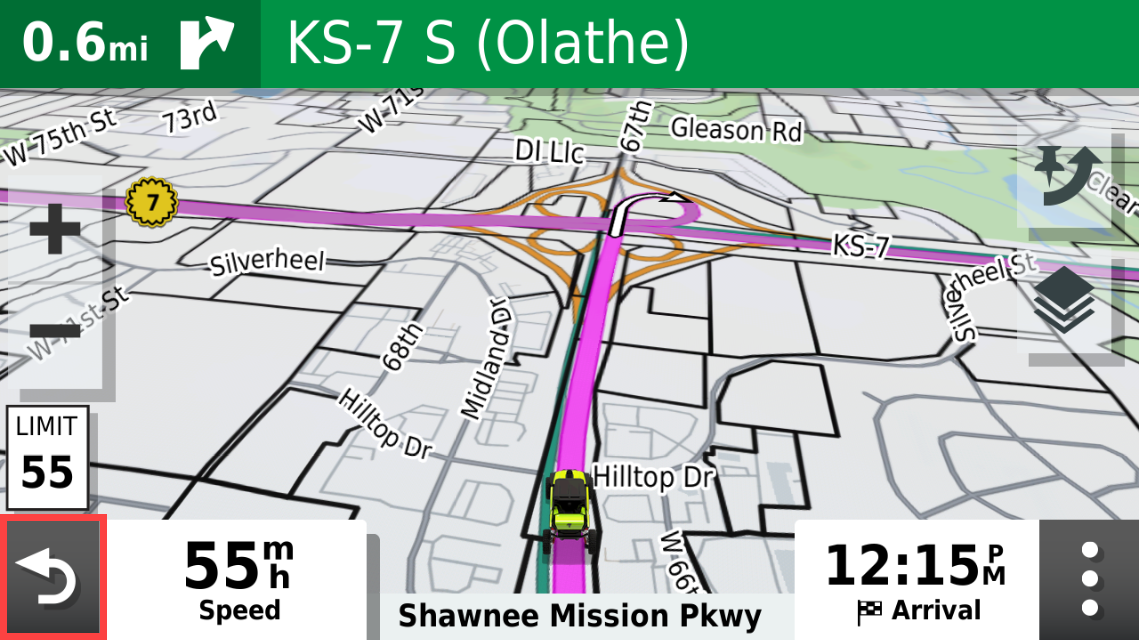

1. Press the Back arrow to return to the Main Menu



2. Touch the Apps icon

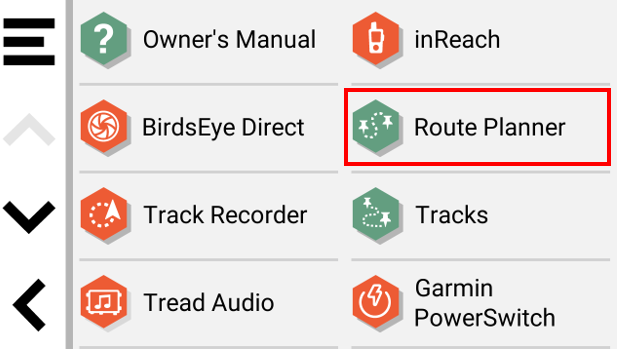

3. Touch Route Planner



4. Touch My Active Route

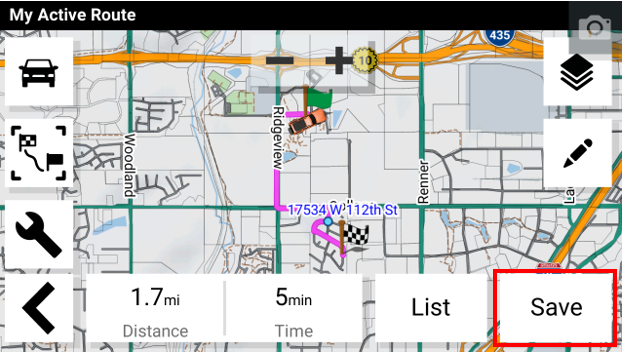

5. Touch Save

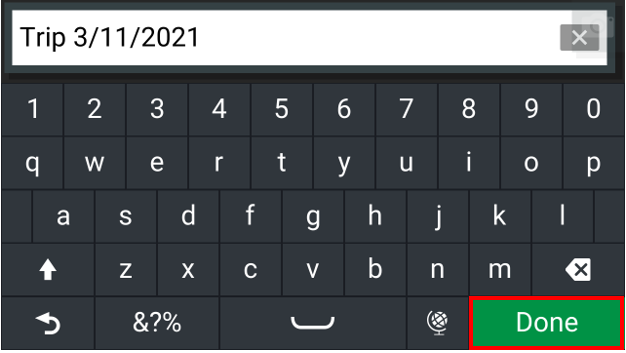

6. Type the desired name for the route, then touch Done



The custom route will now be saved as a trip in Route Planner.
