Tread XL Device Detects External inReach Antenna When an Antenna is Not Connected

The Tread® XL - Baja Chase Edition, Tread® XL - Baja Race Edition, and Tread® XL - Overland Edition GPS navigators will detect an External inReach Antenna when they are connected to the Tread® XL Dock, even if an External inReach Antenna is not connected to the dock. It is recommended to use the External inReach® Antenna when using the Tread XL Dock.

For instructions on connecting an external antenna to the Tread XL Dock, see Installing an External Antenna on a Tread Device.

If you wish to use the dock without the external antenna, you can disable the external antenna using the steps below:

  1. Touch Apps

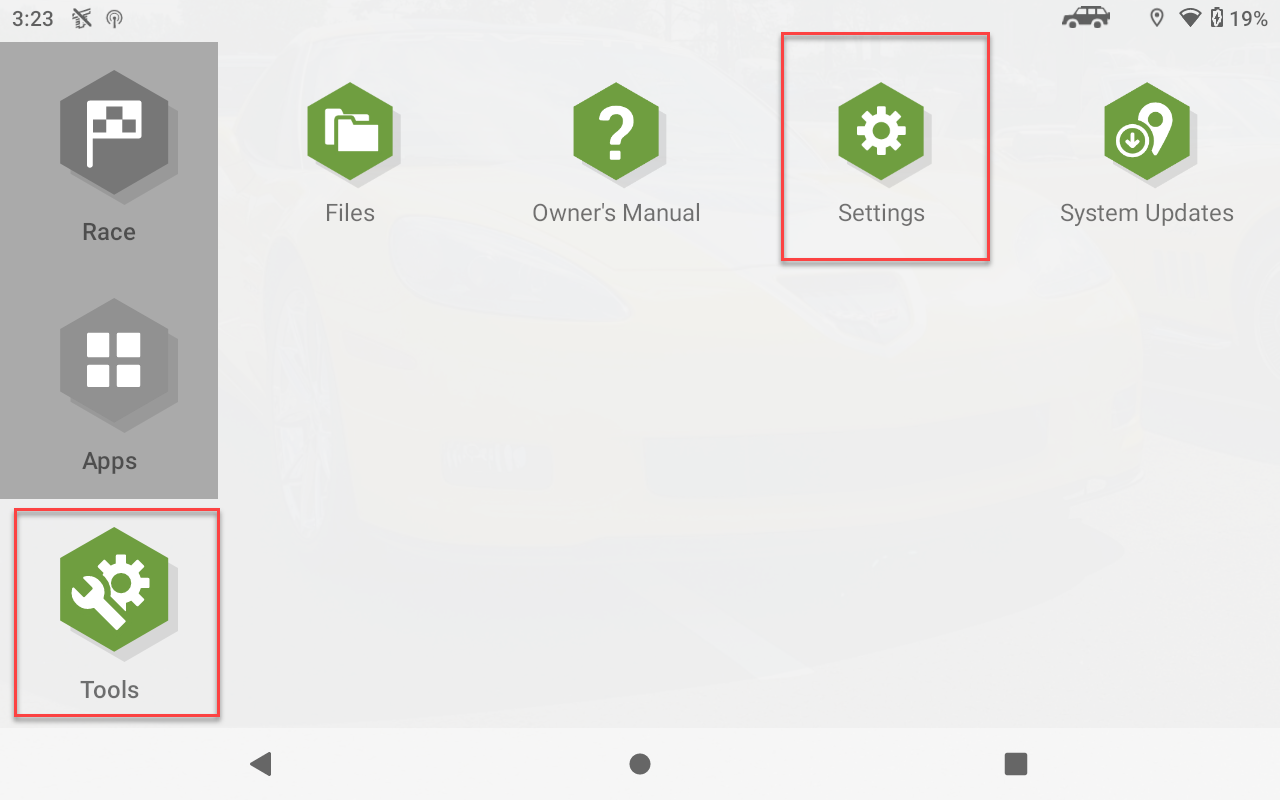

  2. Touch Tools, then Settings

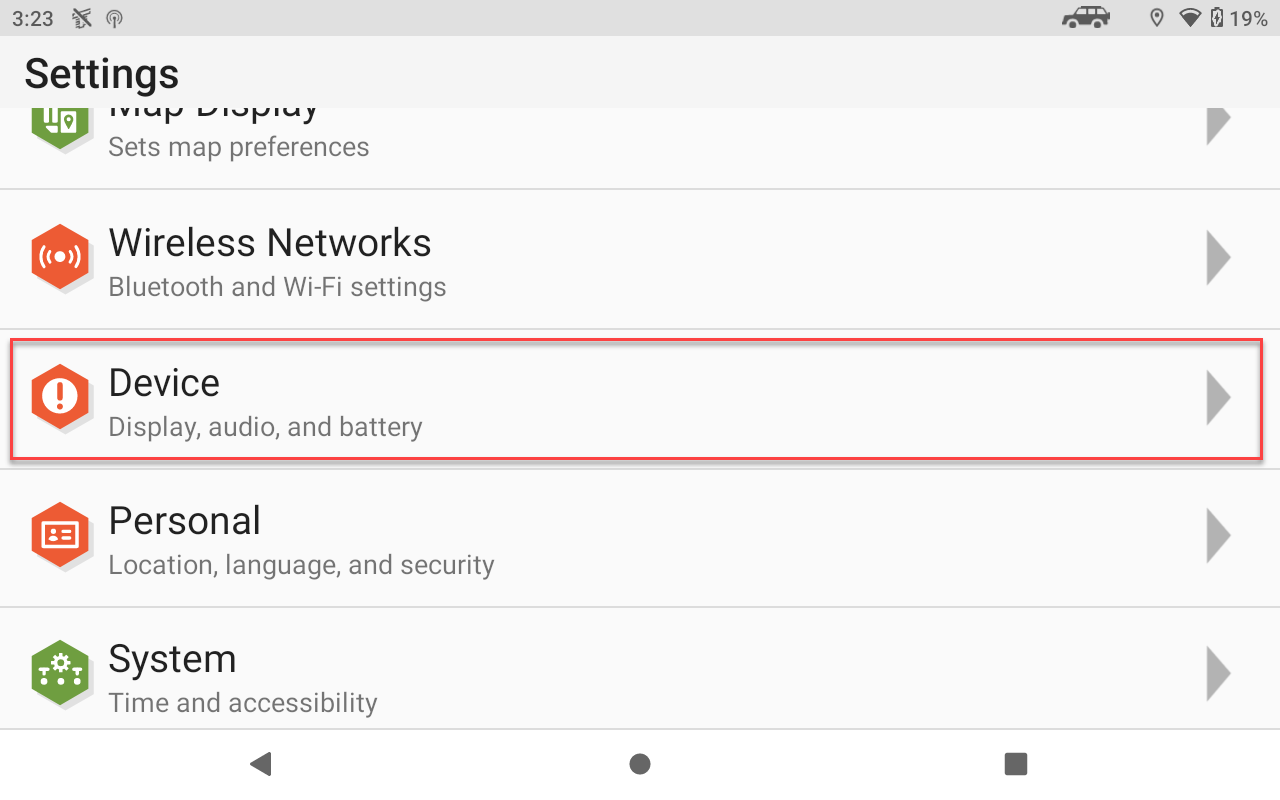

  3. Scroll down, and touch Device

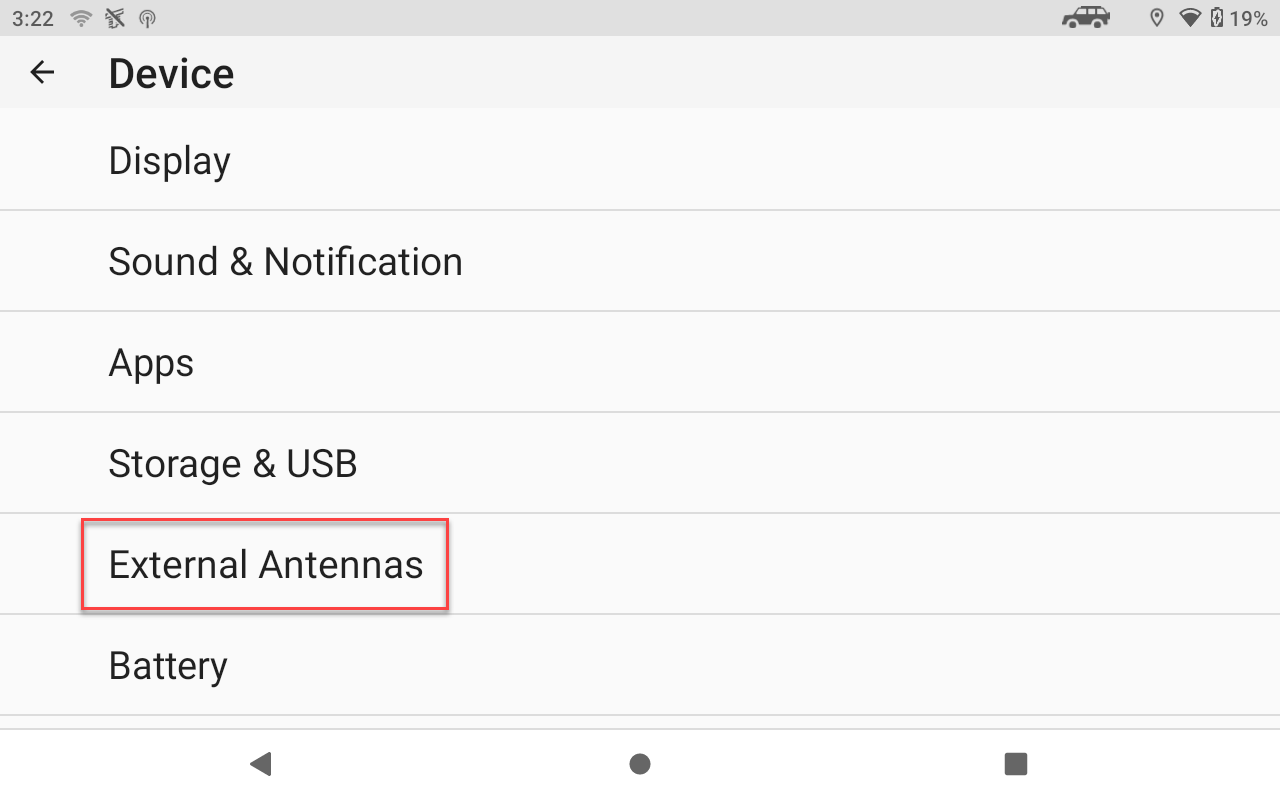

  4. Touch External Antennas

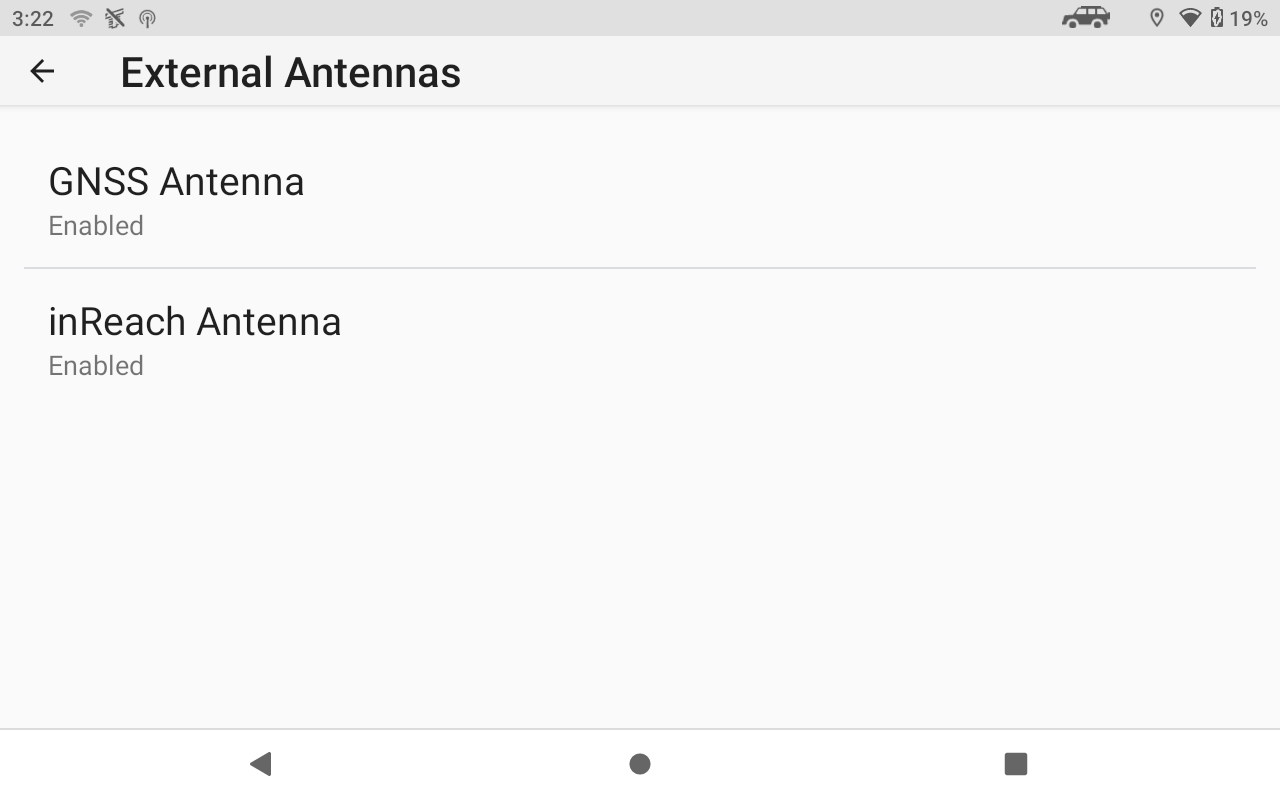

  5. Touch the antenna to disable

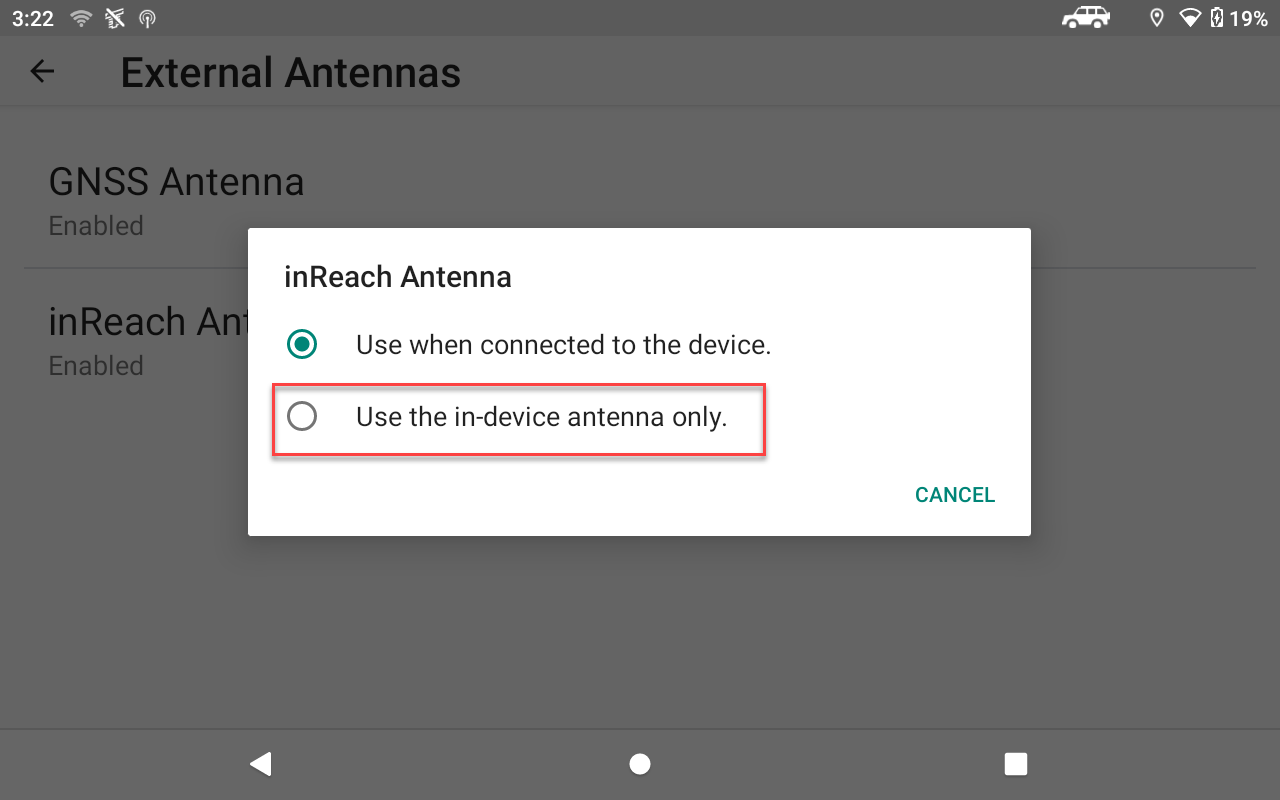

  6.  Select Use the in-device antenna only.

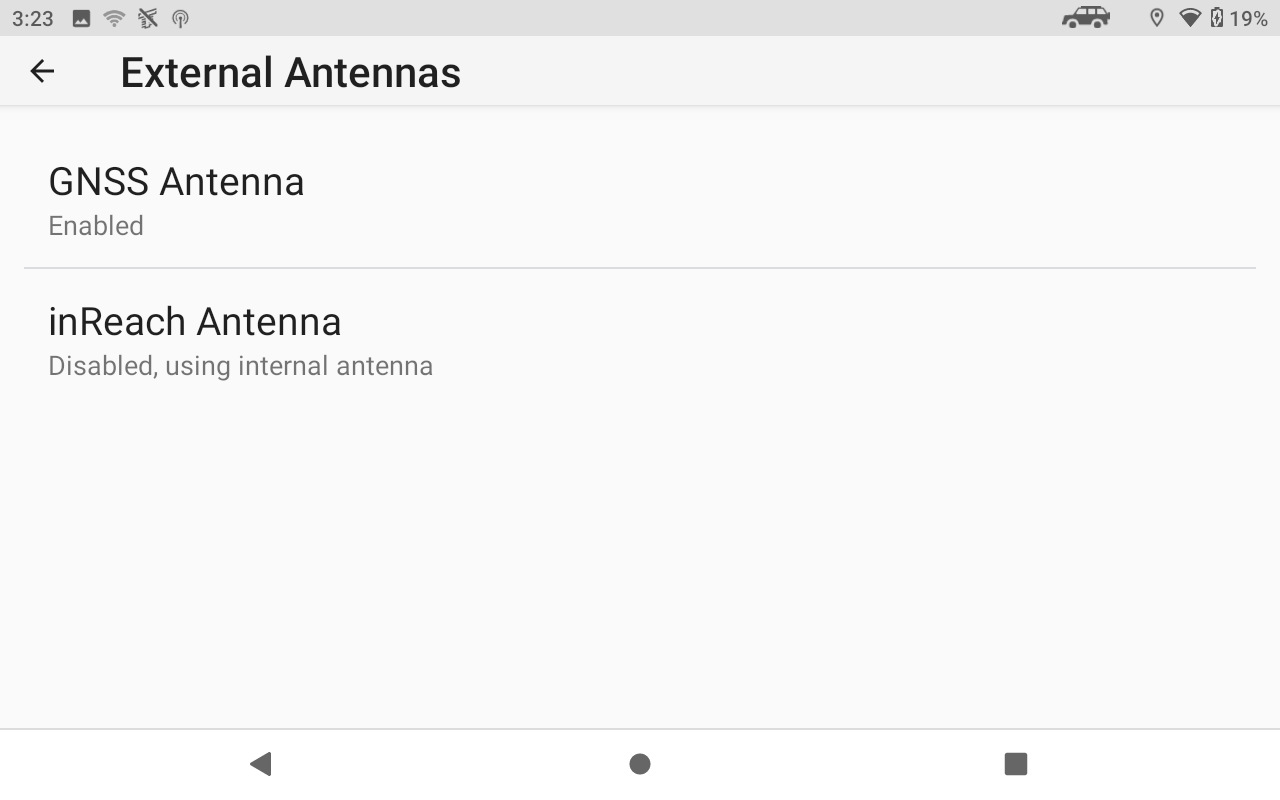

  7. The external antenna will now be disabled.

NOTE: This setting will have to be changed every time the device is reconnected to the dock.
