Loading a Departure into a GTN (Xi)

The Following Should Be Kept in Mind When Loading a Departure Into the GTN™(Xi) touchscreen avionics:

• Flight plans allow only one departure procedure at a time.

• Loading a departure when one is already present will replace the existing entry.

• Selecting a departure, transition waypoint, and runway defines the route.

• Vector-only departures may be excluded from some databases.

• The Load Departure option loads the departure procedure into the active flight plan.

To Select a Departure From the Home Page:

1. Touch the PROC key on the Home page
2. Departure 1
3. Touch the Departure key to display the Departure list.
4. Departure2
5. If necessary, touch the Airport key and enter the departure airport.
6. Departure3

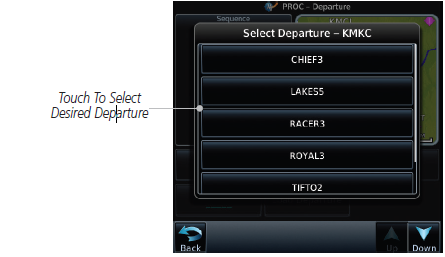

7. Tap Departure and select a departure from the list.
   • •

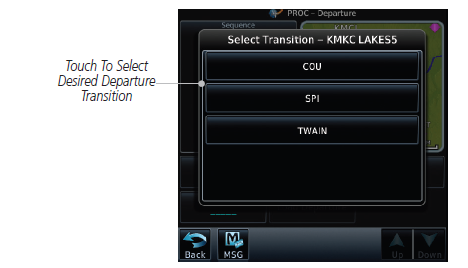

8. Tap Transition and select a transition.
   • • •




9. Tap Runway and select a runway.

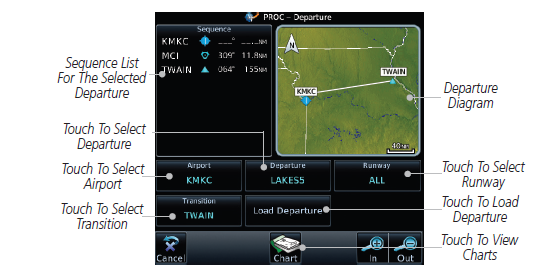

10. Tap Preview, then review the departure diagram and sequence list.
    • • •




11. Tap Load Departure, then scroll the flight plan to view all departure waypoints.

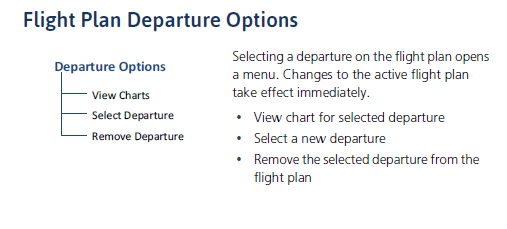

12. To change the departure, tap the existing flight plan departure and select a different one.  If the selected runway displays a 'B', such as 'RW10B',  this means the selected runway is both 10L and 10R.
