(2024) Service Bulletin 0736 Rev C: G1000 System ID Tool

PRODUCTS AFFECTED:

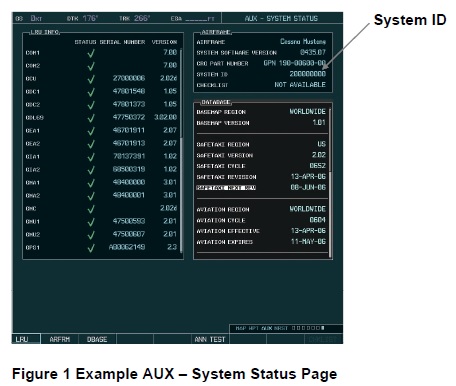

All GDU 1XXXs with a GDU software version of 7.00 or greater and a System ID of “00000000” or “20000000”. The G1000 System ID can be verified on the MFD AUX-System Status Page (Figure 1).

COMPLIANCE:

Recommended: Compliance with Service Bulletin 0736 is recommended before March 12, 2024. Failure to do so will result in loss of aviation databases.

PURPOSE:

Garmin has identified an error associated with G1000 system software upgrades that sometimes results in an invalid System ID. An invalid System ID can be identified as either being “00000000” or “20000000”.
The G1000 System ID can be verified on the AUX-System Status Page (Figure 1).

NOTE
The G1000 System ID is only displayed on GDU’s with GDU software version 6.00 or later.

WARRANTY INFORMATION:

This modification is not warranty reimbursable.
