Creating, Editing, or Deleting a Trip on a Camper/RV Device Using Trip Planner

Creating a multiple-point trip allows navigation among several points. Trips can be saved to your device's internal storage for use at a later date by using the Trip Planner app. The device will store up to 100 trips.

Select the relevant steps below to learn how to use Trip Planner on your device.


Create a Trip

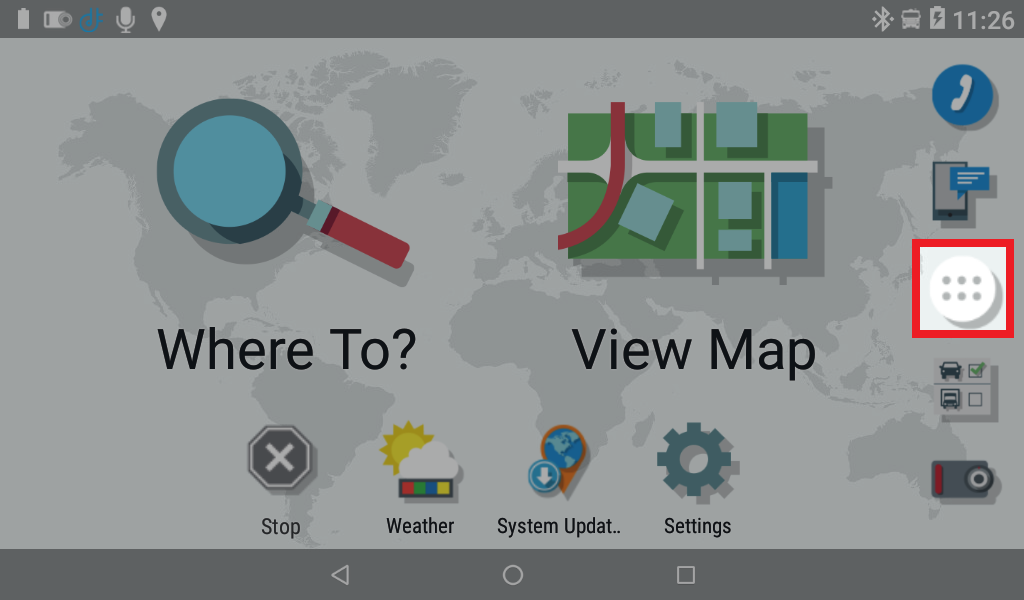

1. Touch the  app icon

 2. Touch Navigation if necessary

 3. Touch Trip Planner



 4. Touch New Trip

5. Touch Select Start Location

Note: The Start Location refers to the first stop on the route.

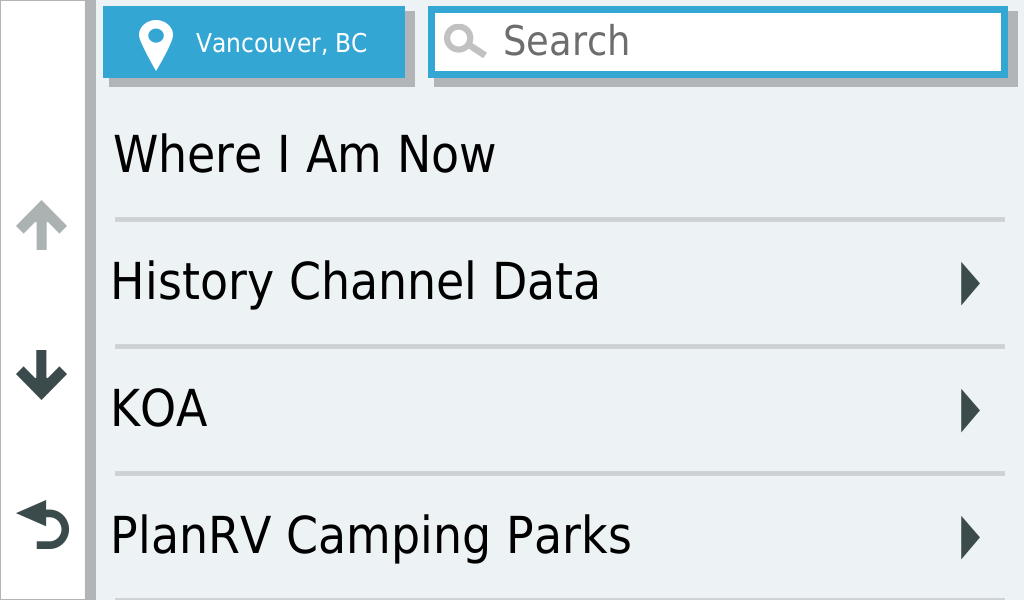

6. Select the starting point using the various search options

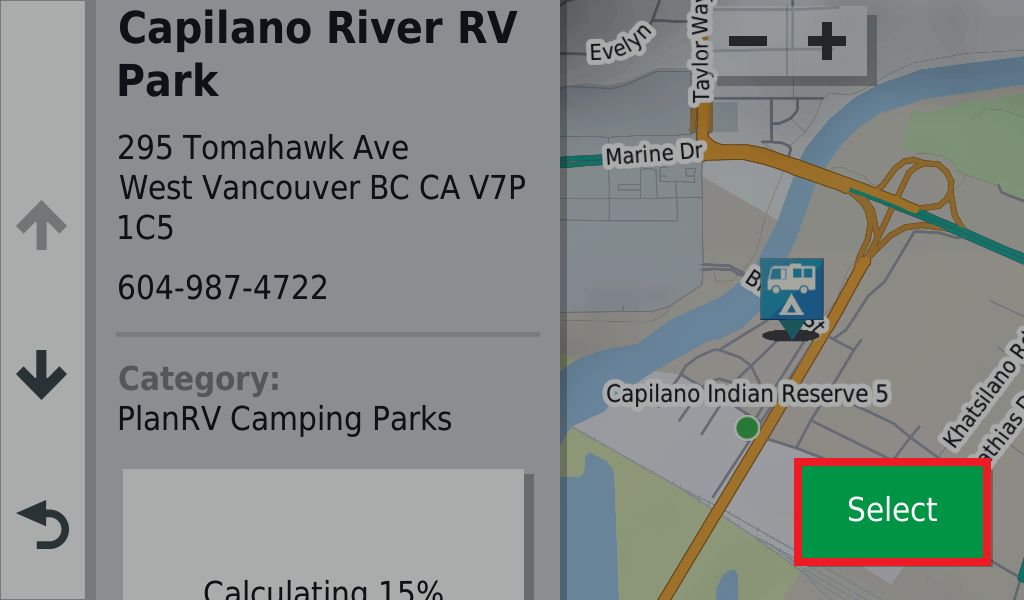

7. Touch Select

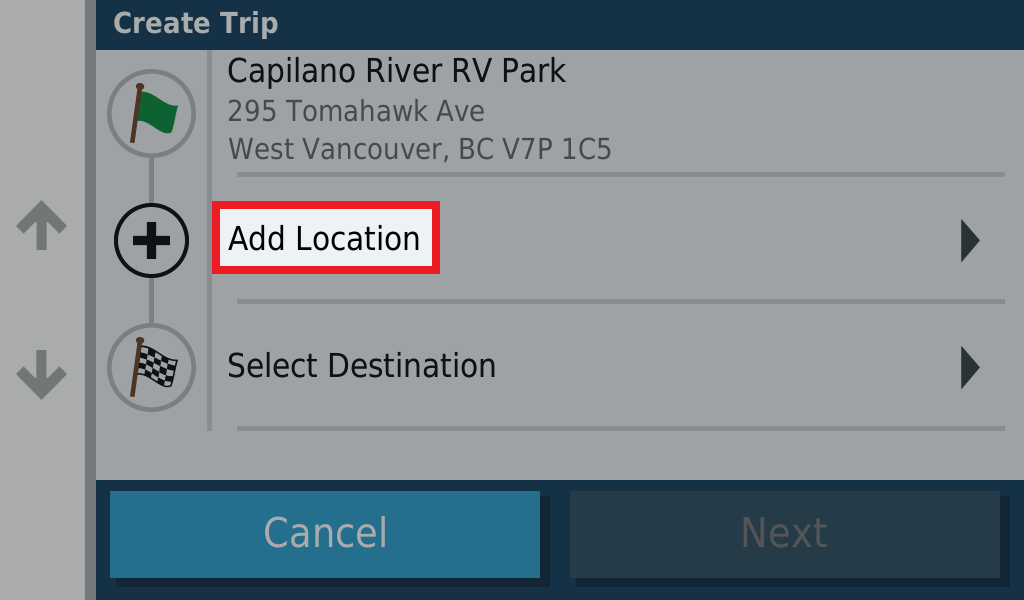

8. Touch Add Location to add a second point

9. Follow steps 6 through 8 to locate and add more points. Each route can hold up to 30 points.

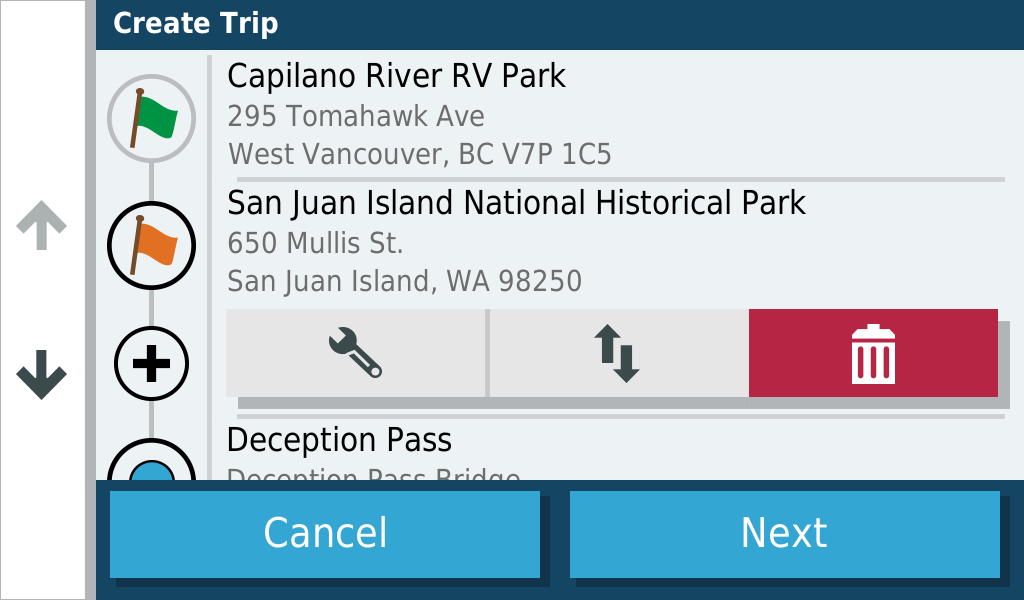

  • Touch to change the order of points.
    • Touch and hold the  move icon next to a point and drag it to a location on the list.
  • Touch the  wrench icon to change a location.
    • Then repeat steps 6 and 7 to select the desired location.
  • Touch the  delete icon to remove a point.
    • Then touch Yes.
  • Touch the PND - Trip Planner waypoint icon orange flag icon to change a waypoint into a  shaping point.

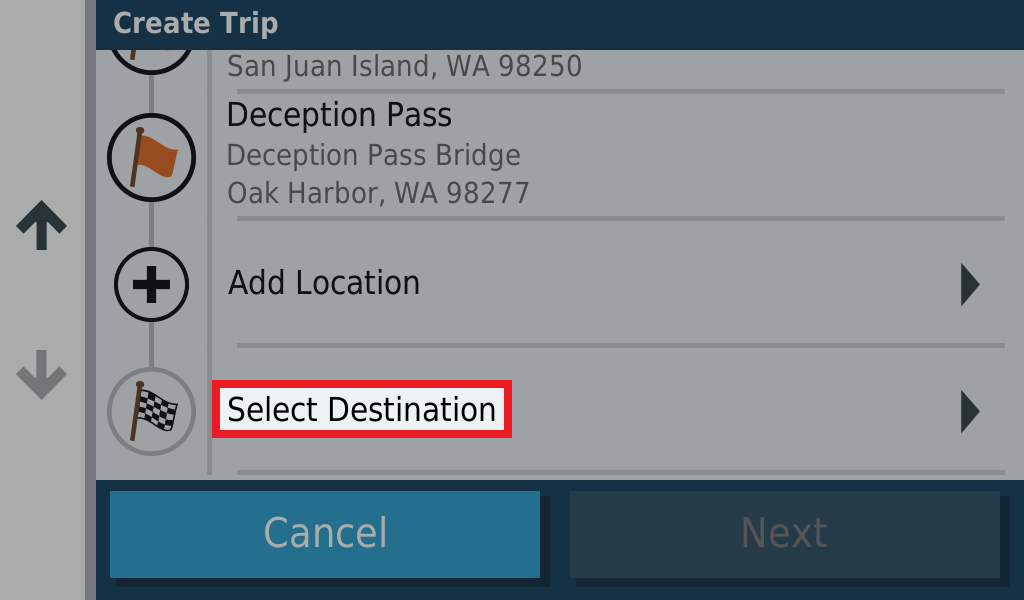

10. Touch Select Destination and follow steps 6 and 7 to select a destination

11. Touch Next. The route will now calculate

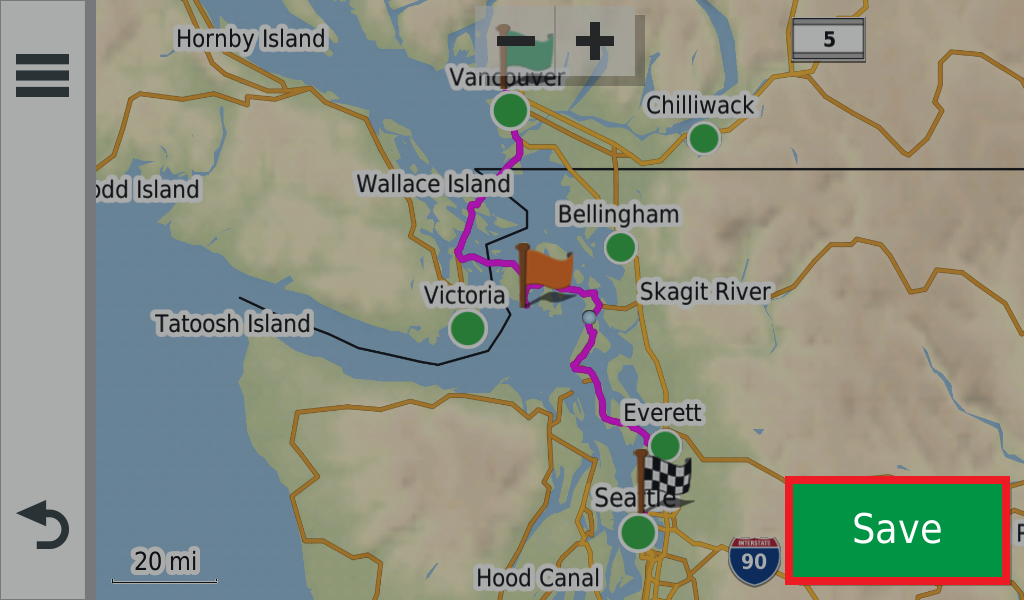

12. Review the route on the map. Touch the back arrow if any changes need to be made. Touch Save if no changes need to be made.

13. Type a name for the route and touch Done

The trip is now saved to Trip Planner and can be found under Saved Trips.


Edit or Delete a Trip

1. Open the Trip Planner app by following steps 1-3 of Create a Trip

2. Touch Saved Trips

3. Touch the name of the trip you wish to edit

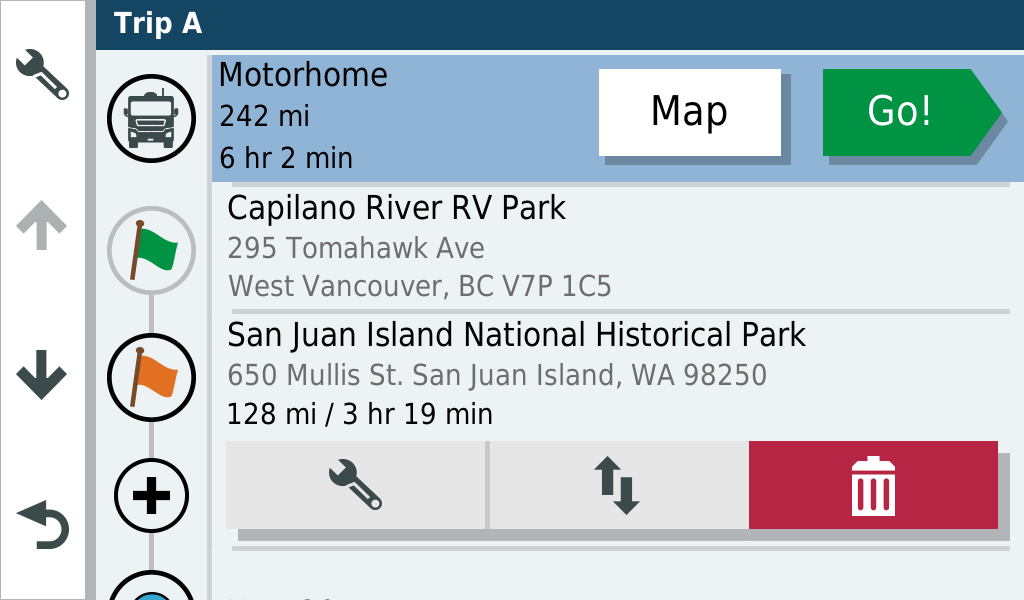

The Following Edits can be Made to the Trip on this Page:

  • Touch the vehicle icon beneath the name of the trip in the upper left corner to change the vehicle profile.

NOTE: Ensure you are using the Same vehicle profile on the device as what is set in the trip planner, or you may receive the error: "Cannot start navigation. The device transportation mode does not match the trip transportation mode." This can be resolved by changing the vehicle profile in the trip planner or on the device to make them match.

  • Touch name of the stop you want to add point after and then touch add icon to add a stop between locations.
  • Touch to change the order of points.
    • Touch and hold the  move icon next to a point and drag it to a location on the list.
  • Touch the  wrench icon to change a location.
  • Touch the delete icon to remove a point.
    • Then touch Yes.
  • Touch the  orange flag icon to change a waypoint into a  shaping point.

  • Touch the wrench icon for more editing options.




Select from the Following Options:

  • Route Preference: Select route calculation preference (faster time, shorter distance, or off-road).

  • Suggest Attractions: add attractions along the route.

  • Shape Route: Add shaping points to change the direction of the route or avoid certain roads.

  • Optimize Order: Have the device calculate the most logical order in which to travel to all points in between the route's start and end locations.

    • The start point and end point will remain as entered and will not be changed when optimized.

  • View Turns: View turn-by-turn written directions.

  • Delete Trip: Removes the trip from Trip Planner.

  • Rename Trip: Changes trip name in Trip Planner.

  • Edit Schedule: Set desired arrival times for each stop.


4. Touch Go! to proceed with navigation.


To Navigate a Trip Using Trip Planner

1. Select Apps

2. Select Navigation

3. Select Trip Planner

4. Select Saved Trips

5. Select the Trip

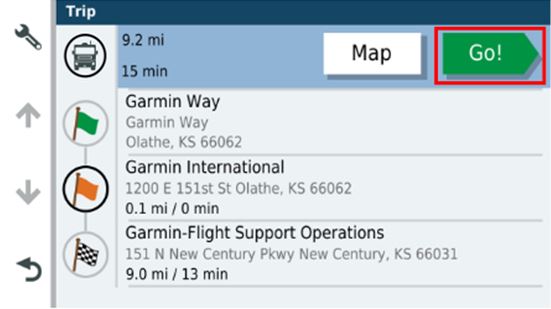

6. Touch Go



7. Select the Next Destination of the Route

  • Select the Green Flag to route from your current location to the beginning of the route, and then the full trip.

  • Select the Orange Flag to skip the starting location and route from your current location to the waypoint selected in the route, and then the remaining trip destinations in order.

  • Select the Checkered Flag to route from your current location skipping all the points in the route and taking you the quickest way to the destination point.

  • Select the Closest Entry Point to skip the starting location and calculate the quickest way to get on the planned route.

    • Feature not available on some devices.





8. Touch OK



9. Touch Start
