Differences Between the Power Cables for the Garmin Dash Cam Series

Garmin Dash Cam products can be powered using three different power cables. Select a cable below for more information.

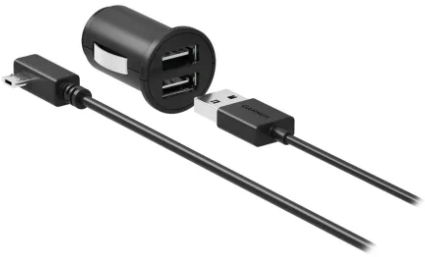

Dual USB Power Adapter with Included Cable

Power your compatible Garmin Dash Cam with this adapter while also having the ability to charge a phone, tablet or any other device needing power while on the go.


Garmin Dash Cam™ X110 | Garmin Dash Cam™ X210 |Garmin Dash Cam™ X310 | Garmin Dash Cam™ Mini 3 driving recorders:


Includes the dual USB power adapter and a 13-ft long (4 meters) USB-C power cable for hidden installations.

  • The 13 ft. (4m) cable is meant to route either up or down from the camera as seen in the owner's manual.

    • The power cable included with your device is intended for power only.  It cannot be used to transfer data to/from your computer or update with Garmin Express.
    • Data transfer cable options (purchased separately) include USB Cable Type A to Type C and USB Cable Type C to Type C, depending on the type of ports available on your computer.
    • For other power and data cable options, choose your dash cam model, then select the Accessories tab.

  • For replacement options, see Vehicle Power Kit.


All Other Garmin Dash Cams:

  • Garmin Dash Cam™ Live driving recorder
  • Garmin Dash Cam™ Tandem driving recorder
  • Garmin Dash Cam™ Mini | Garmin Dash Cam™ Mini 2 driving recorders
  • Garmin Dash Cam™ 47 | Garmin Dash Cam™ 57 | Garmin Dash Cam™ 67W driving recorders
  • Garmin Dash Cam™ 46 | Garmin Dash Cam™ 56 | Garmin Dash Cam™ 66W driving recorders
  • Garmin Dash Cam™ 45 | Garmin Dash Cam™ 54 | Garmin Dash Cam™ 55 | Garmin Dash Cam™ 65W driving recorders

Includes a 13-ft long (4 meters) power cable for hidden installations and a shorter power/data cable (1.5 meters).

    • The long power cable included with your device is intended for power only.
    • The short power/data cable can be used to transfer data to/from your computer or update with Garmin Express.

  • For replacement options, see Dual USB Power Adapter

  • For other power and data cable options, choose your dash cam model, then select the Accessories tab.


Parking Mode Cable

  • Connect your compatible Garmin Dash Cam to constant power from the vehicle's fuse box.
  • The cable is 4 meters long.
  • Professional installation by an experienced installer is recommended.

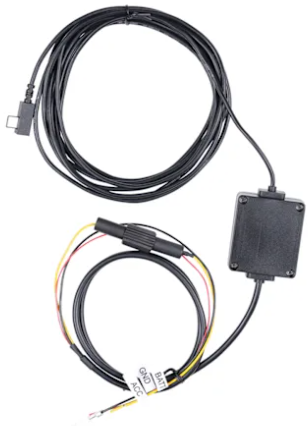

Parking Mode Cable USB-C


Garmin Dash Cam X110, Garmin Dash Cam X210, Garmin Dash Cam X310, Garmin Dash Cam Mini 3:


All Other Garmin Dash Cams:

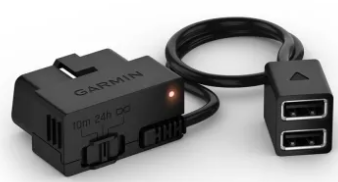

Constant Power Cable

  • Cable will plug into your vehicle’s OBD-II port for constant power to your compatible Garmin Dash Cam, even when the vehicle is parked and turned off.
  • Cable is compatible with most passenger vehicles.
  • Cable is not compatible with a J1939 connector.
  • Time switch for 10 minutes, 24 hours, and always on.
  • Will protect the battery by shutting down after 10 minutes if it detects the battery is low (less than 12V).

Constant Power Cable 1


  • Compatible with the following Garmin Dash Cam models.
    • Garmin Dash Cam™ X110 | Garmin Dash Cam™ X210 |Garmin Dash Cam™ X310 driving recorders
    • Garmin Dash Cam™ Live driving recorder
    • Garmin Dash Cam™ Tandem driving recorder
    • Garmin Dash Cam™ Mini | Garmin Dash Cam™ Mini 2 driving recorders
    • Garmin Dash Cam™ 47 | Garmin Dash Cam™ 57 | Garmin Dash Cam™ 67W driving recorders
    • Garmin Dash Cam™ 46 | Garmin Dash Cam™ 56 | Garmin Dash Cam™ 66W driving recorders
  • More information about the Constant Power Cable can be viewed from the following articles.
