Getting Started With the Rino 700

Below is a list of articles that will help you get started with, and get the most out of, your new Rino® 700 outdoor radio and GPS.

How Do I Get Started?

First, we recommend that you fully charge your Rino handheld (see - Charging the Battery).

1. Power on the Rino handheld by holding on the side.

   + Expand all

   ---

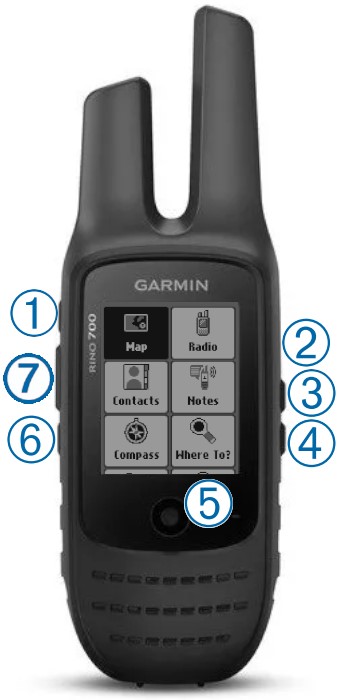

   Learn More About the Touchscreen and Buttons




   CALL KEY



   • Press to transmit an attention tone on the current channel.

   • Hold to send an emergency alert to all Rino users on the current channel and code (Emergency Alerts).


   POWER KEY



   • Short press to adjust the backlight and check battery level.

   • Press and hold to turn the device on.

   • Press and hold until you see power icon to turn the device off.

   MENU/ZOOM KEY



   • Press to open the menu for a page or item.

   • Press twice to return to the main menu.

   • Press and hold to adjust the zoom level of the map.

   BACK KEY



   • Press to return to the previous item or menu.

   THUMB STICK™



   • Move up/down or right/left to move through lists, highlighted fields, adjust sliders, or move the map panning cursor arrow.

   • Press in to select an item.

   • Press in and hold for two seconds to mark your current location as a waypoint (Waypoints).

   VOLUME/SQUELCH KEY



   • Select to adjust the volume and squelch levels.

   PTT (PUSH-TO-TALK)

   • Hold to transmit on the current radio channel (Transmitting).

   ---

2. Select your language from the list.


Learn More About the Rino 700 Handheld

The following articles will help you explore and use the many features of the Rino 700 handheld.

Communication Features

• • Two-Way Radio Range of Rino Series Handhelds

  • Frequency Range for the FRS and GMRS Channels on Rino Devices

  • Unable to Select a Channel Above 15 on a Rino Device

  • Adding and Managing Contacts for the Rino Series

  • Send Location and Position Reporting Feature for Rino 600 and 700 Series

  • Sending a Text Message Using a Rino 700, 750, 750t, or 755t

  • Sending & Receiving Waypoints Between Rino 700 & Other Rino Models

  • Communication Issues Between a 600/700 series Rino and an Older Generation Rino

  • Issues Seeing Other Contacts on Rino's Map Screen


  • Using a Wired Headset with the Rino Series


  • Using a Rino Handheld Radio Outside the United States, Canada and Australia

Waypoints, Tracking, and Navigation

• • Tracks

  • Showing or Hiding Tracks on the Map

  • Navigating Using TracBack

  • How to Project a Waypoint on an Outdoor Handheld

  • My Outdoor Handheld Has a Straight Track Line

  • Routes


Battery and Charging Features

• • Charging the Battery

  • Recommended Guidelines for Storing Rechargeable Batteries

  • Features that Affect Battery Life on Outdoor Handheld

  • Using an Outdoor Handheld While Connected to External Power
