Box Shapes Showing on Chart

If the Garmin Quickdraw™ Contours recording option is checked to display, it will show on all charts as lines, boxes, or a wavy shape when viewed at higher zoom levels, as seen in the images below. To remove the lines on the chartplotter, uncheck Display in the Quickdraw Contours menu.

On a GPSMAP™ unit from any chart page, press Options > Quickdraw Contours > Display. Turn off

On an ECHOMAP® unit from any chart page, press Menu > Quickdraw Contours > Display. Turn off

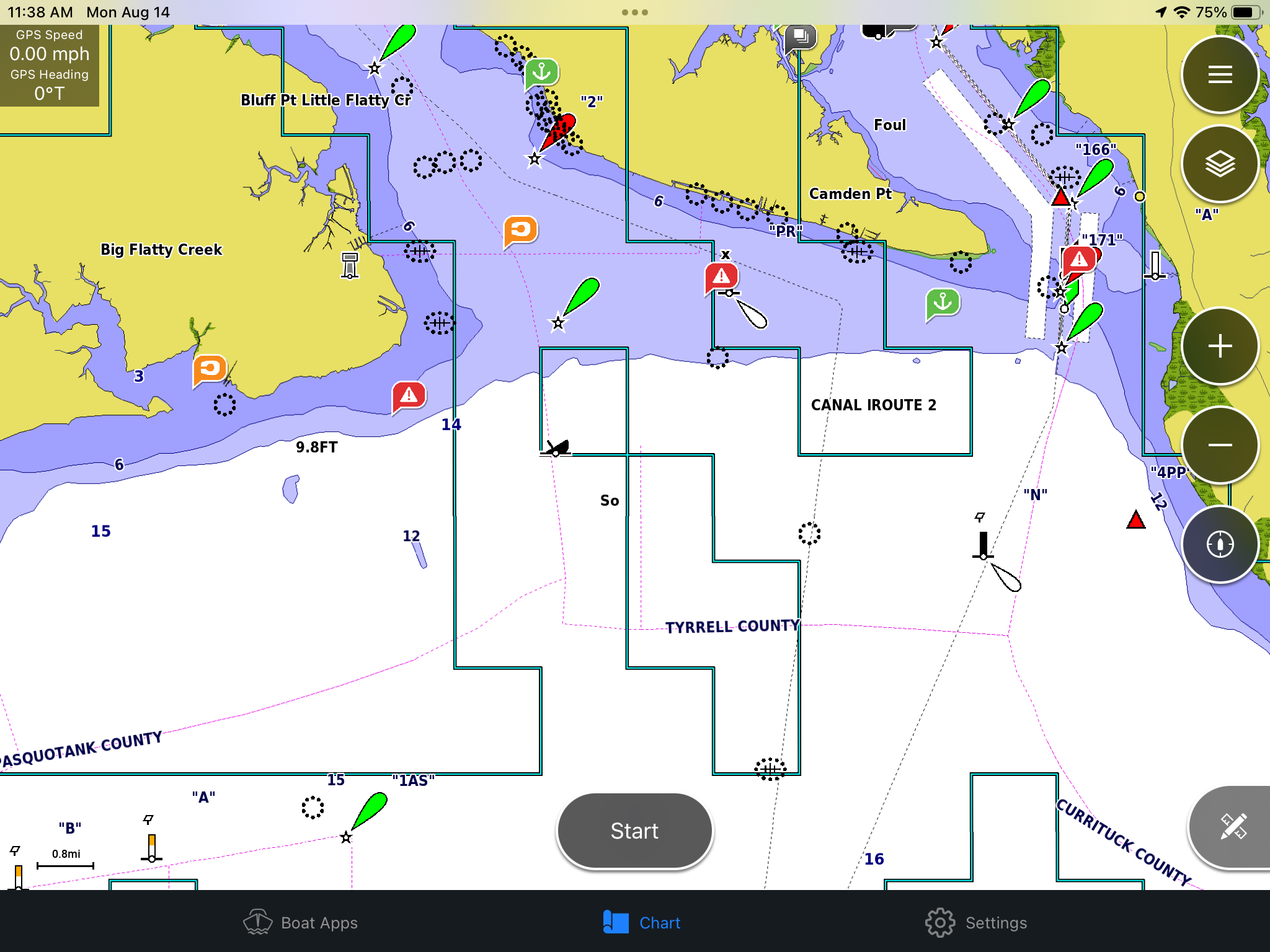

Navigation Chart

Navigation chart with Quickdraw Contour lines on displayed on chart

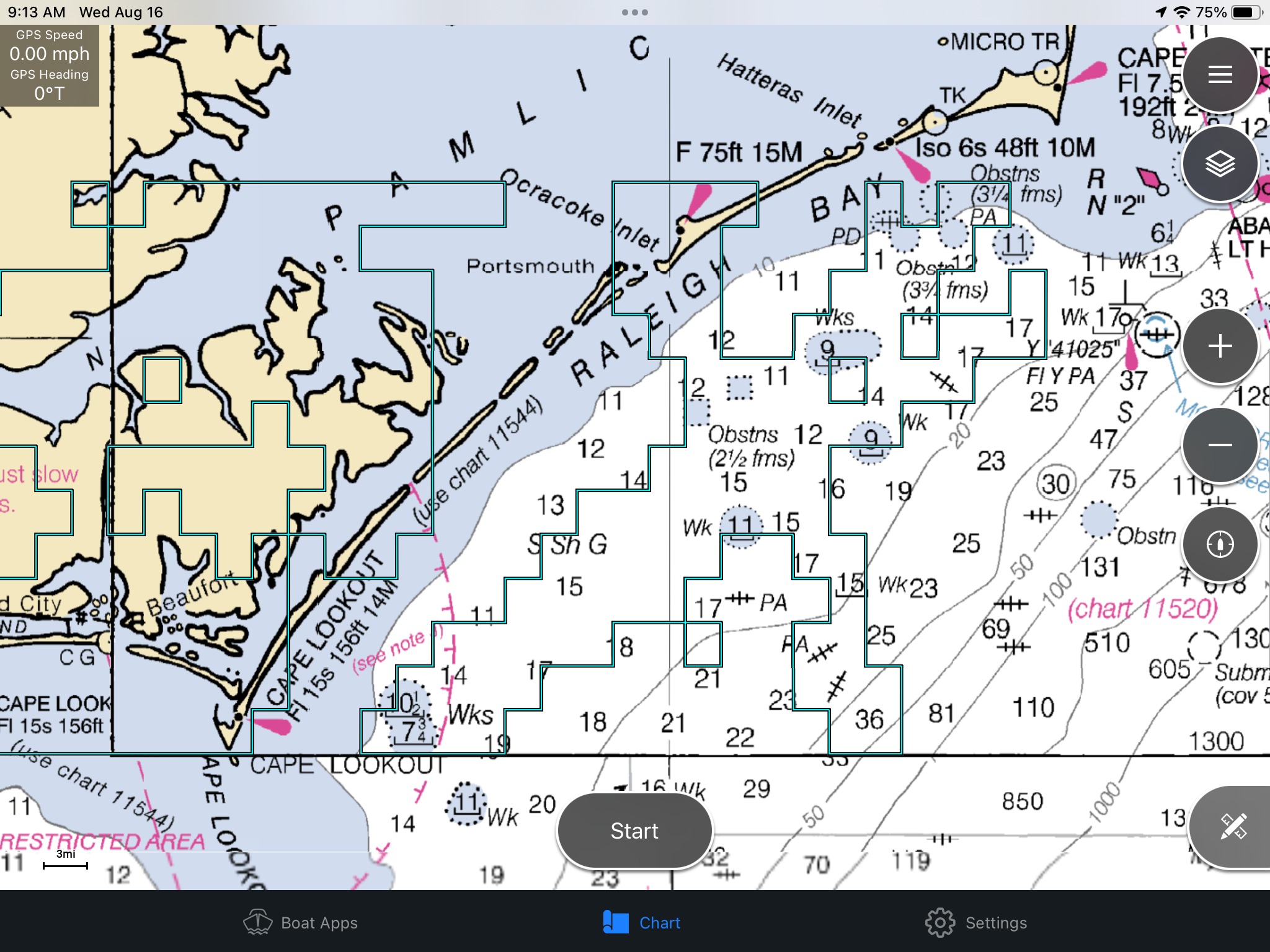

Raster Chart

 shows image of Raster chart with Quickdraw Contour lines

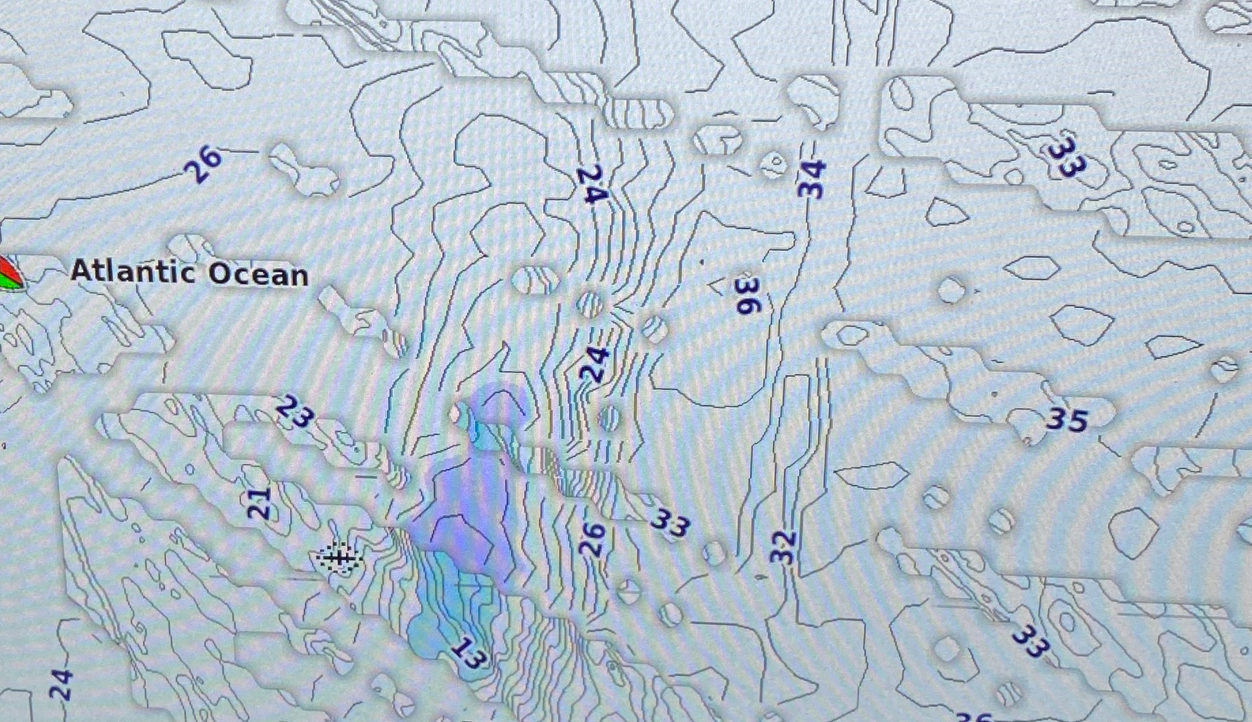

Fishing Chart - blocks on the fishing chart are wavy rather than square or rectangular

Fishing chart blocks
