Panoptix and Livescope Transducer Comparison

To compare various models of Panoptix and LiveScope transducers, as well as what sonar views they offer, choose a generation of transducer below. Garmin's transducer page can be used to determine compatibility by filter tools on the webpage's left side.


1st Gen Panoptix

Transducer Models: PS30 & PS31:

These transducers provide a LiveVu sonar image with the traditional sonar feel to the imaging and 3-D views.

Panoptix Transducer

Installation Options

External Sounder Module

CHIRP Traditional & ClearVu

LIVESCOPE Forward/Down

LIVESCOPE Perspective Mode

LIVEVÜ Forward

LIVEVÜ Down

REALVÜ 3D Forward

REALVÜ 3D Down

FRONTVÜ Forward

REALVÜ 3D Historical

PS31Trolling Motor Shaft/Pole or TransomN/A


X
X


PS30Transom MountN/A



X
X
X

PS30

LiveVu Down:  Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small bait fish and large target fish swimming around, as well as your lure.

Panoptix LiveVu Down Showing Neon Fish

RealVu 3-D Down:  Allows your boat to remain stationary and still see things in 3-D around your boat. It shows history of only one sweep.

RealVu 3-D Down Stationary boat with bottom reading

RealVu 3-D Historical:  Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom surface and all of the fish in between.

RealVu 3-D Historical showing bottom and fish

PS31

LiveVu Forward:  Updates the entire view with a single ping and has more of a "live video" look, providing real-time, moving sonar images. You can see fish swimming toward or away from the boat. You can see small bait fish and large target fish swimming around as well as your lure as you reel it in.

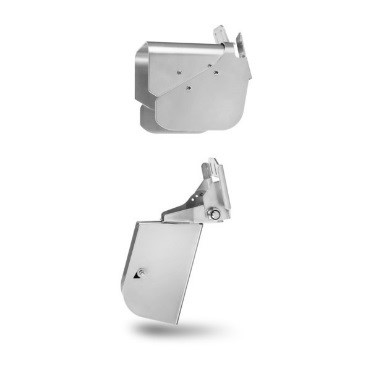

LiveVu Forward showing live video of moving sonar                                                                                                Transom mount PS31 and Trolling motor mount PS31

RealVu 3-D:  Updates a slice of the 3-D volume with each ping and takes 1 to 4 seconds to update the entire volume. It shows the bottom and fish in the water column coming toward the boat. It sweeps forward and then history on the screen is only one sweep.

RealVu 3-D with fish and bottom in water column


2nd Gen Panoptix

Transducer Models: PS21, PS22, PS51, & PS60

These transducers support a slimmer profile compared to the first generation and provide alternate mounting options such as thru-hull options (PS-51, PS-60). These transducers provide a LiveVu sonar image with the traditional sonar feel to the imaging and 3-D views depending on model.

Panoptix Transducer

Installation Options

External Sounder Module

CHIRP Traditional & ClearVu

LIVESCOPE Forward/Down

LIVESCOPE Perspective Mode

LIVEVÜ Forward

LIVEVÜ Down

REALVÜ 3D Forward

REALVÜ 3D Down

FRONTVÜ Forward

REALVÜ 3D Historical

PS60Thru-hullN/A



X
X
X
PS51-THThru-hullN/A


X


X
PS22-TRTrolling Motor Shaft or PoleN/A


XX



PS21-TR (Discontinued)Trolling Motor Shaft or PoleN/A


X




PS21-TM (Discontinued)TransomN/A


X


X

PS21 (PS21-TR Can Be Transom Mounted with Kit)

LiveVu Forward:  Updates the entire view with a single ping and has a more "live video" look, providing real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small bait fish and large target fish swimming around as well as your lure as you reel it in.

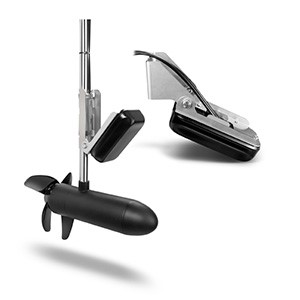

LiveVu Forward showing live video of moving sonar                                                                                   PS21 Trolling Motor or Transom Mounted

PS22

LiveVu Forward:  Updates the entire view with a single ping and has a more "live video" look, providing real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small bait fish and large target fish swimming around as well as your lure as you reel it in.

LiveVu Forward showing live video of moving sonar

LiveVu Down:  Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small bait fish and large target fish swimming around, as well as your lure.

Panoptix LiveVu Down Showing Neon Fish below boat

PS51

LiveVu Forward:  Updates the entire view with a single ping and has a more "live video" look, providing real-time moving sonar images. You can see fish moving toward or away from the boat. You can see small bait fish and large target fish swimming around as well as your lure as you reel it in.

LiveVu Forward showing live video of moving sonar

FrontVu Forward: Forward looking sonar helps you avoid running aground by displaying the bottom ahead of your boat in real time on your chartplotter.

Panoptix FrontVu displaying bottom ahead of boat

PS60

LiveVu Down: Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small bait fish and large target fish swimming around as well as your lure.

Panoptix LiveVu Down Showing Neon Fish below boat

RealVu 3-D Down: Allows you boat to remain stationary and still see things in 3-D around your boat. It shows history of only 1 sweep.

RealVu 3-D Down Stationary boat with bottom reading

RealVu 3-D Historical:  Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom surface and all of the fish in between.

RealVu 3-D Historical showing bottom and fish


3rd Gen Panoptix (LiveScope)

Transducer Models: LVS32 & LVS12

These transducers provide a LiveVu sonar image with the ClearVu sonar feel to the imaging and will also provide Traditional Sonar and ClearVu Sonar.

Panoptix Transducer

Installation Options

External Sounder Module

CHIRP Traditional & ClearVu

LIVESCOPE Forward/Down

LIVESCOPE Perspective Mode

LIVEVÜ Forward

LIVEVÜ Down

REALVÜ 3D Forward

REALVÜ 3D Down

FRONTVÜ Forward

REALVÜ 3D Historical

LVS 32Trolling Motor Shaft/Pole or Barrel, or TransomGLS 10XXX





LVS 32-IFIce Fishing PoleGLS 10XXX





LVS 32-THThru-hullGLS 10XX






LVS-12Trolling Motor Shaft/Pole or Barrell, or TransomSee Compatible Garmin ChartplottersXX






PS60Thru-hullN/A



X
X
X
PS51-THThru-hullN/A


X


X
PS31Trolling Motor Shaft/Pole or TransomN/A


X
X


PS30Transom MountN/A



XX

X
PS22-TRTrolling Motor Shaft or PoleN/A


XX



PS21-TR (Discontinued)Trolling Motor Shaft or PoleN/A


X




PS21-TM (Discontinued)TransomN/A


X


X

LVS32 (Trolling Motor or Transom Mounted; Only Connect to GLS 10; thru-hull transducer model also available)

Supports a larger scope of view using a 20-degree horizontal and 135-degree vertical beam.

LiveScope Forward:  LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You're looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat, up to 200 feet, even while your boat is stationary.

LVS32 LiveScope Forward showing trees and fish ahead of boat

LiveScope Down:  LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat, up to 200 feet, even while your boat is stationary.

LiveScope Down showing trees and fish below boat

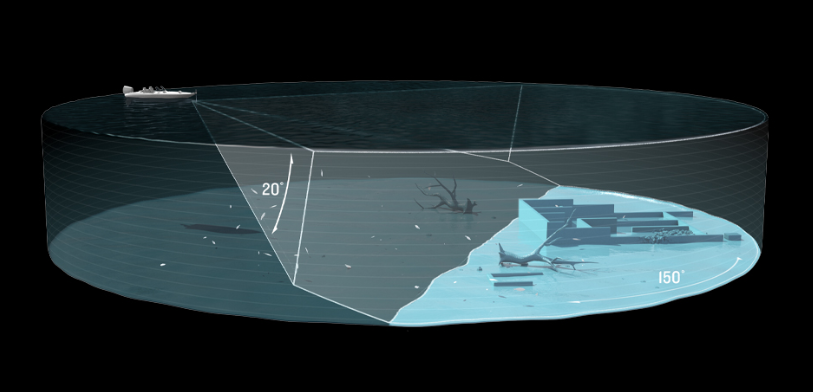

Perspective Mode: With the Perspective Mode Mount, Perspective Mode allows you to get an overhead sonar view that's perfect for scouting and fishing in shallow water.

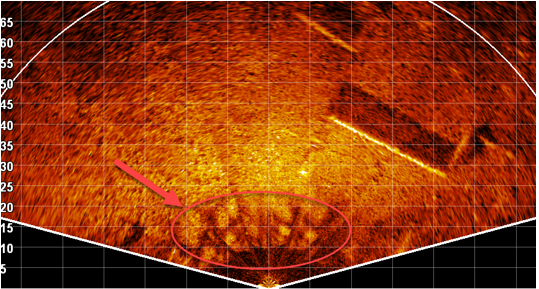

Perspective Mode Looking Down showing underwater structure                                   Perspective Mode Side view of underwater structure

LVS12

Uses a smaller scope of view compared to the LVS32. 30-degree horizontal and 30-degree vertical beam.

LiveScope Forward: LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You're looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat, up to 200 feet, even while your boat is stationary.

LVS12 LiveScope Forward showing trees and fish ahead of boat

LiveScope Down:  LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat, up to 200 feet, even while your boat is stationary.

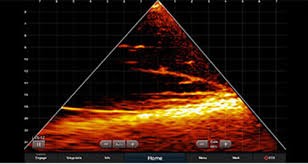

LVS12 LiveScope Down showing trees and fish below boat


NOTE: If a compatible Garmin chartplotter is connected to a supported Panoptix transducer, but an error message of "Unsupported Transducer" is displayed, see Unsupported Transducer Message.
