Pairing a Portable Handset (H1P) to a Cortex® Network

There are two possible ways to connect the Cortex® H1P device to the system's network depending on the software installed on the H1P.


Applicable to all Software Versions

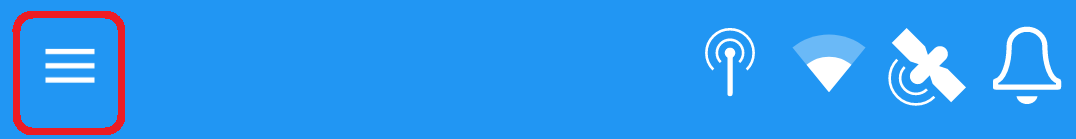

Tap the Menu icon at the screen or push the menu buttonMenu Button Cortex 3 horizontal lines

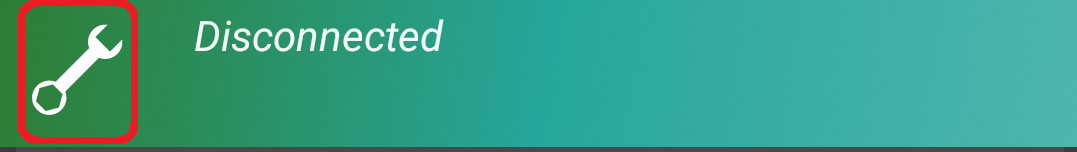

Tap the Wrench Tool at the left hand corner of the displayCortex Settings Icon White Wrench

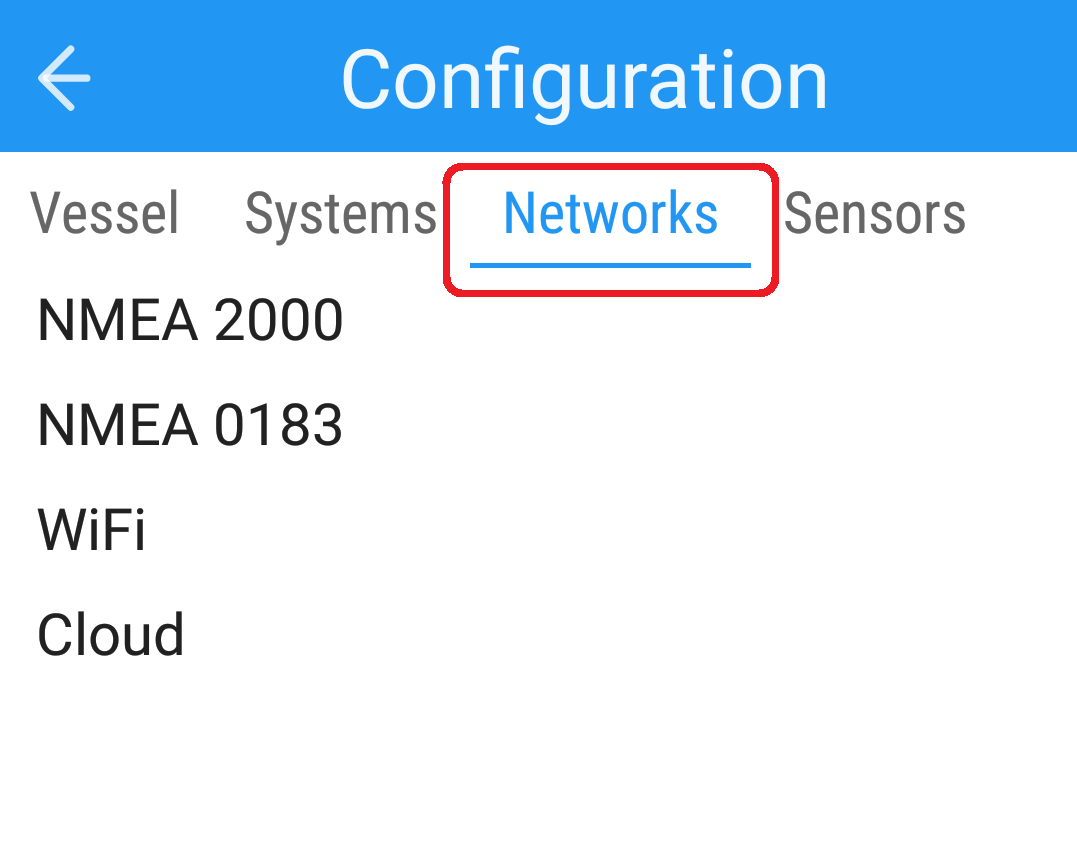

Select "Networks"Wi-Fi Network Selection Option

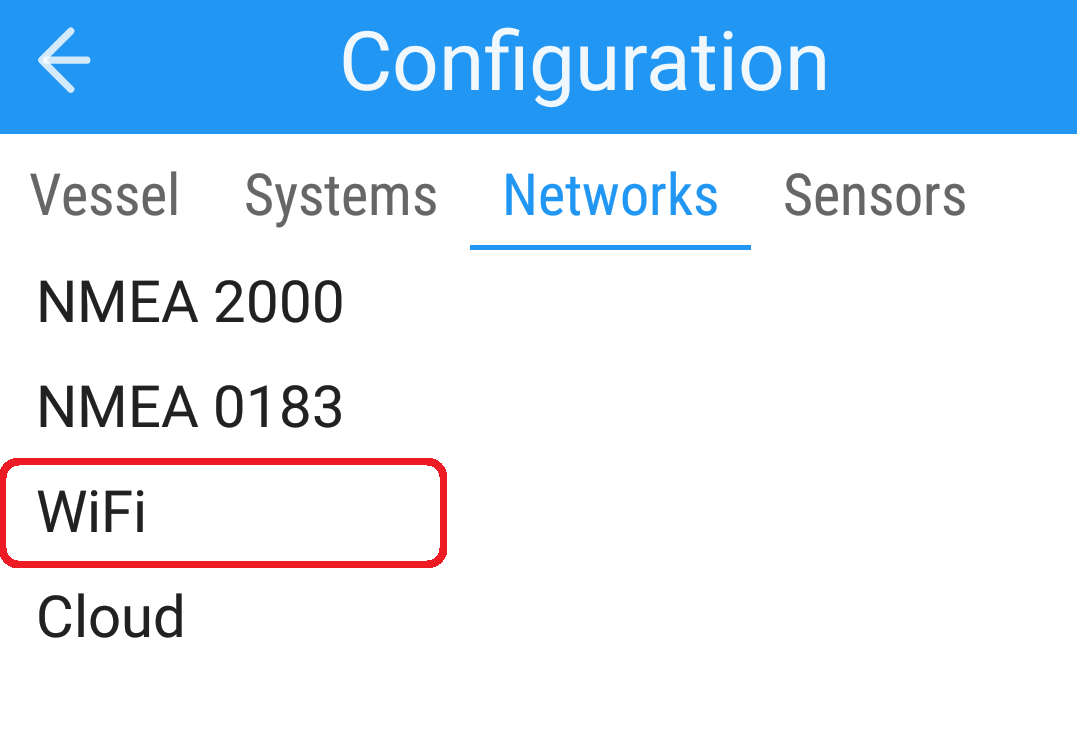

Select Wi-FiNetwork Selection Options
Tap "Hub" and Select the Cortex HUBHub Selection Cortex App

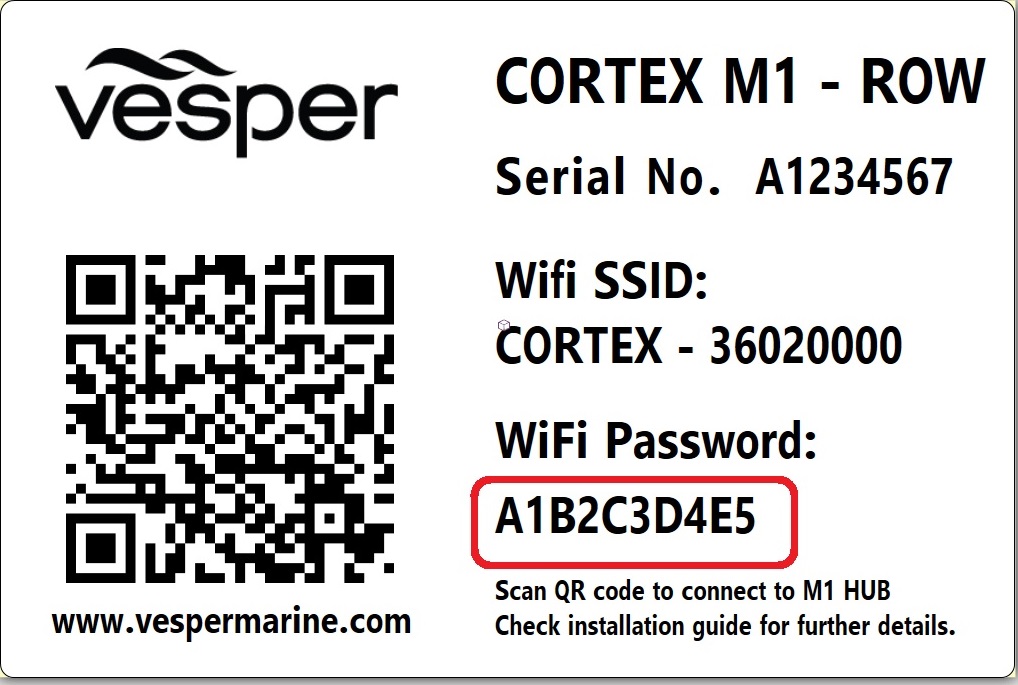

Enter the Wi-Fi password displayed at the QR code label of the Hub and tap "CONNECT"Wifi Password Entry QR Code

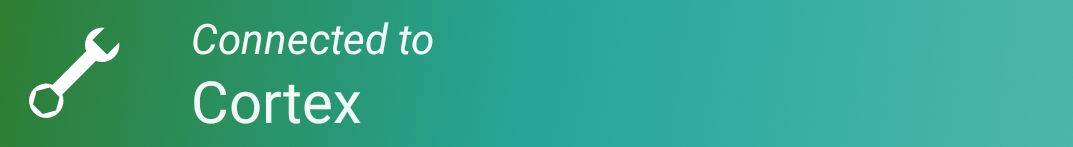

The H1P unit is now connected to the Cortex HUBConnected Cortex Hub in app



Applicable as of Software version 1.4 or Higher

As of version 1.4, you are able to access the WiFi configuration from the WiFi icon at control bar


Tap the Wi-Fi Icon at the top menu barWifi Icon Cortex in Blue Menu Bar

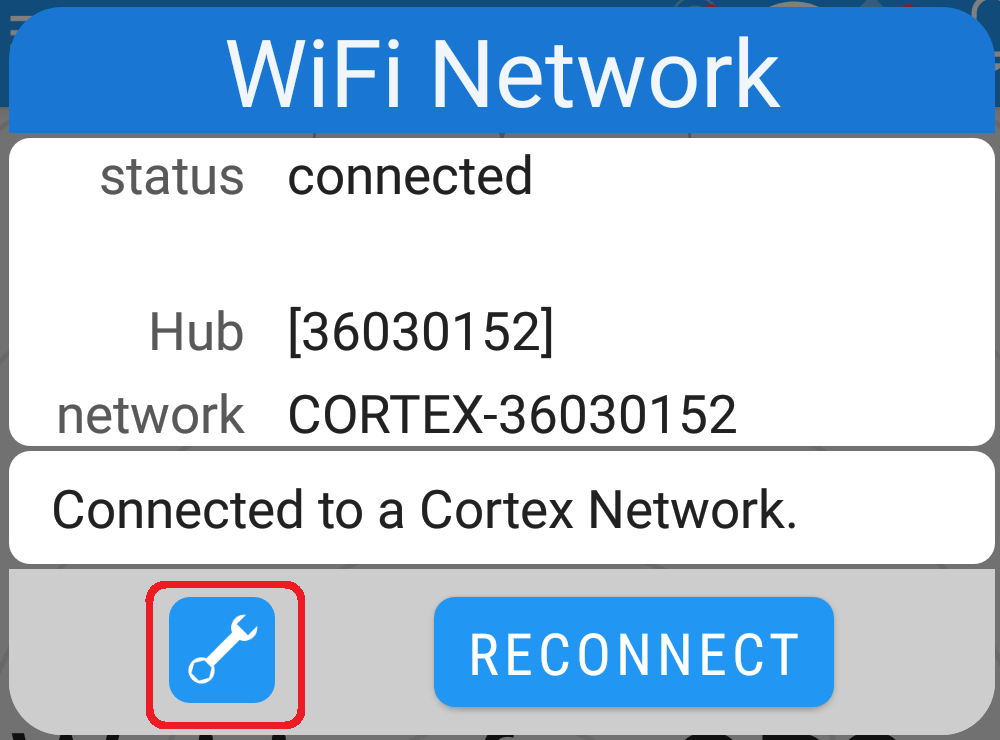

Tap the Wrench icon Wrench Icon

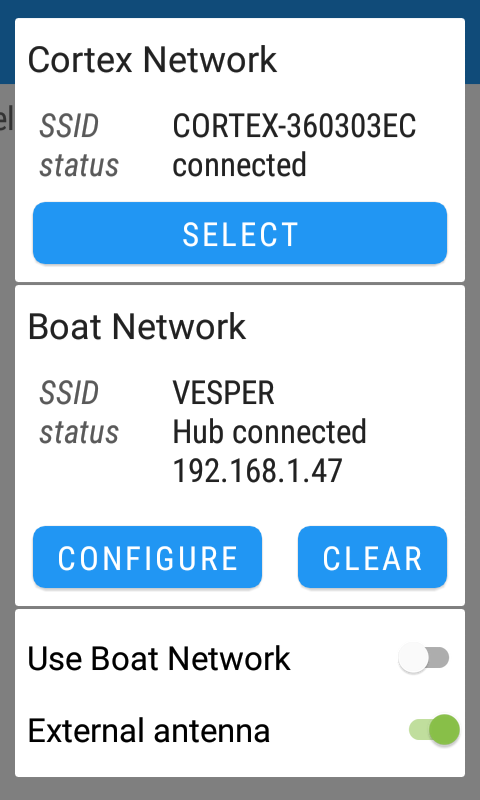

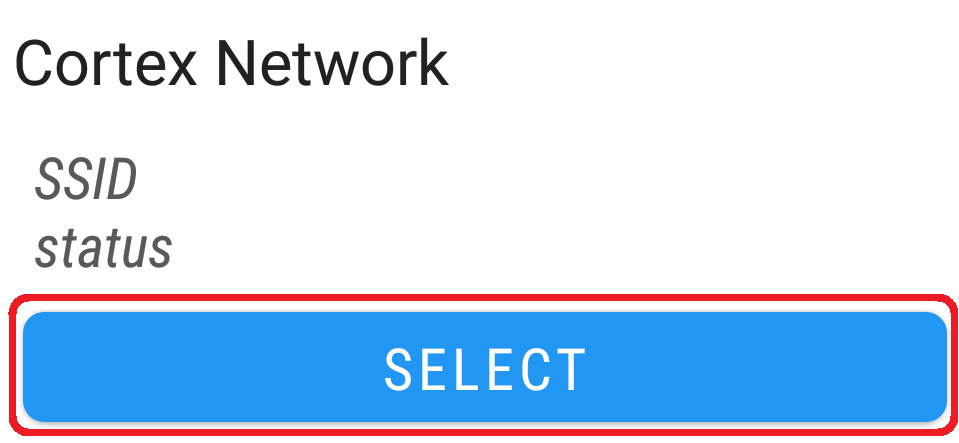

Push "SELECT" in the Cortex Network window Select Option Blue button

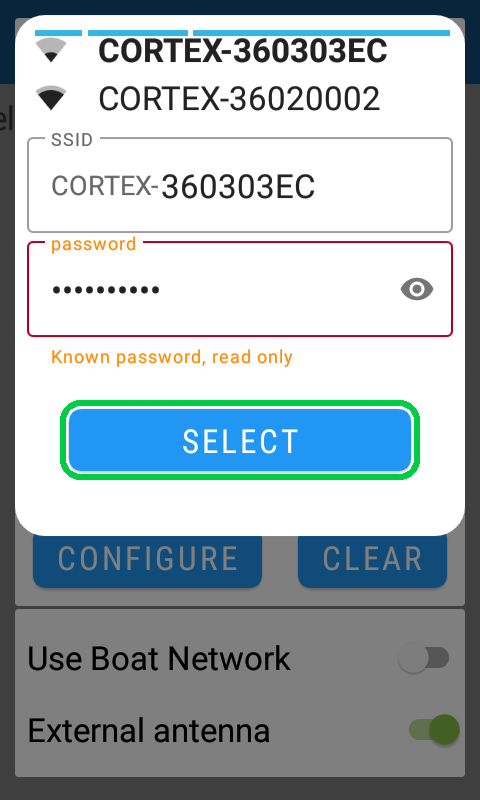

The available SSID will show up above the SSID banner- find your device's SSID and tap on in and it will appear in the bannerSelect SSID Cortex banner
Select the HUB network and enter the Wi-Fi password displayed at the QR code label of the Hub and tap "SELECT"Wifi Password Entry

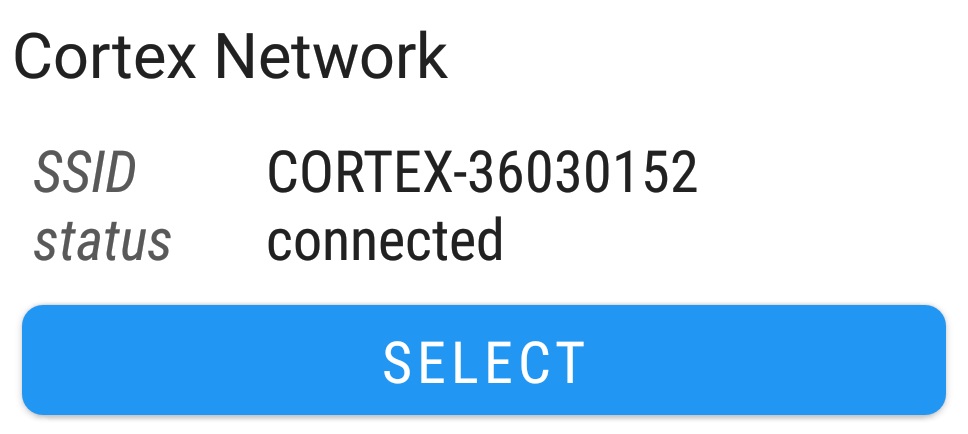

The select network will appear in the Cortex Network window, status "connected"cortex network selected
