Controlling a Fusion® Stereo with a Garmin® Chartplotter

Most ECHOMAP™ and GPSMAP® devices have a Media page that can control a compatible stereo via NMEA 2000 or, on some stereos, the Garmin Marine Network / Garmin BlueNet™. Available features may differ by stereo manufacturer. This article will detail how to navigate the media page for controlling a Fusion® stereo.

Note: A chartplotter may not display all features and settings available on a stereo

Navigating to the Media page

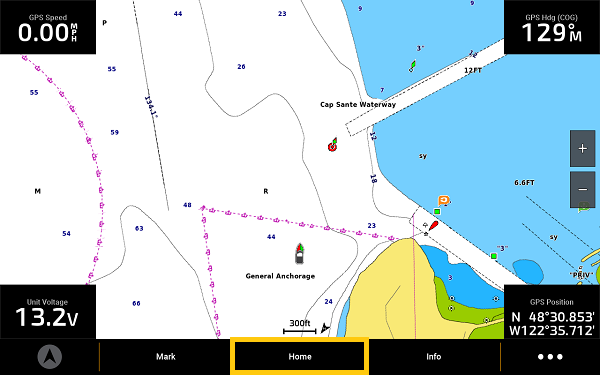

Select Home

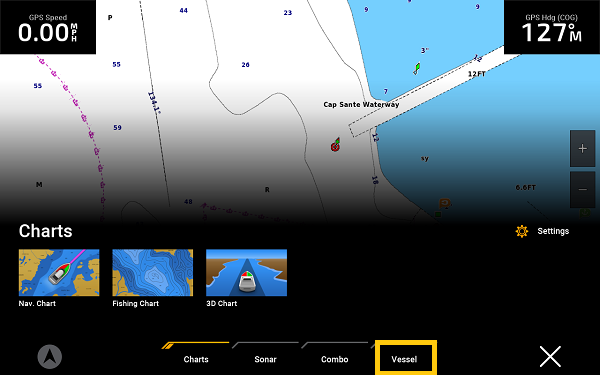

Select Vessel

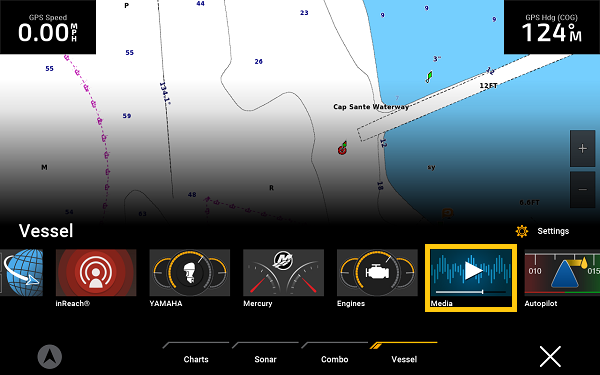

Select Media

Source and Zones

Source and Zones appear at all times on the main Media page

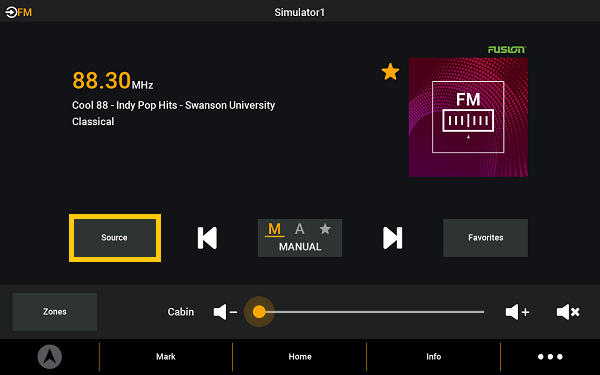

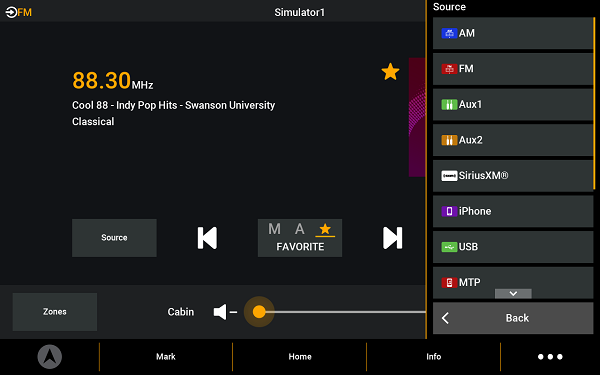

Source allows a different source of audio available to the stereo to be chosen

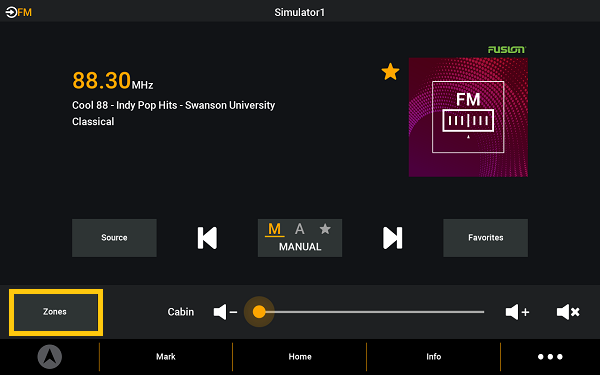

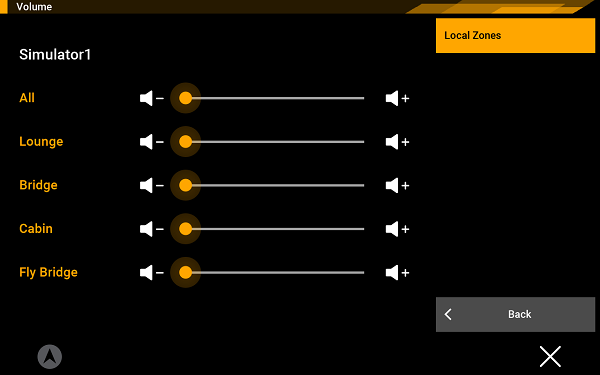

Zones allows the volume of individual zones or all zones at once to be adjusted

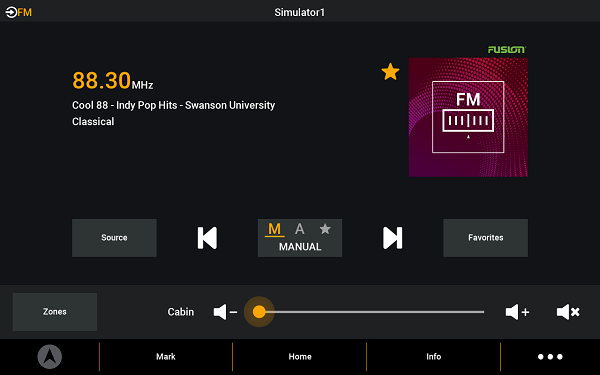

AM and FM Source

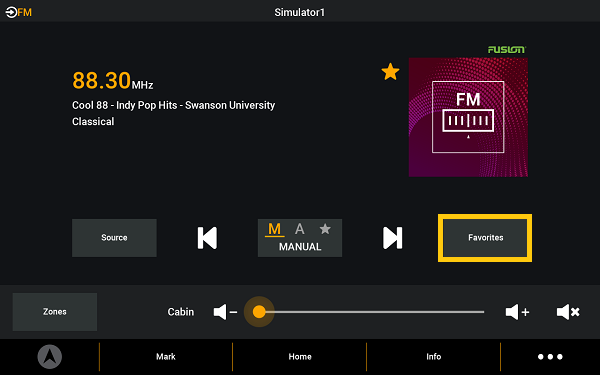

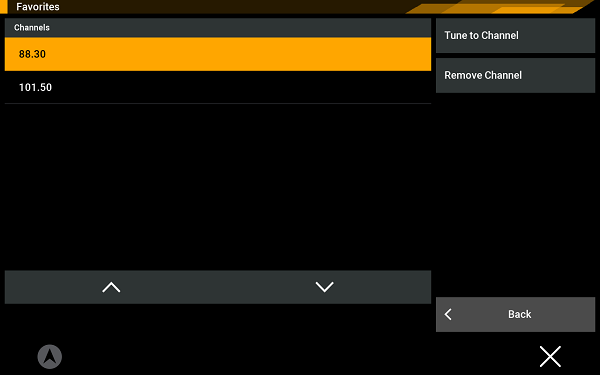

Favorites shows all favorited stations

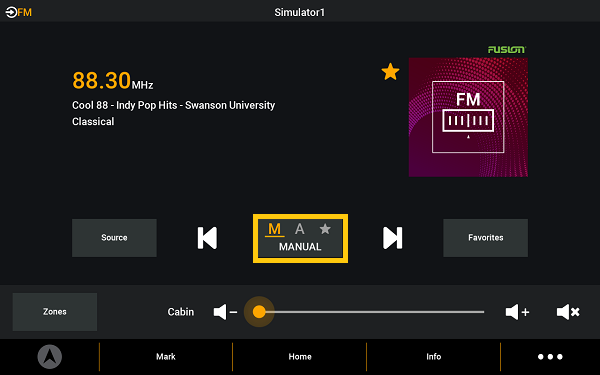

Select the scanning mode button to change how the stereo scans for stations
- M allows manual scanning to any frequency
- A automatically scans to the next available station
- Star scans to the next favorited station

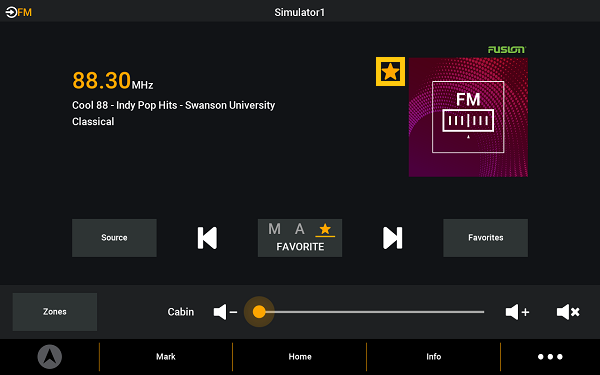

Tune to a station and select the star icon to favorite it

Bluetooth Source

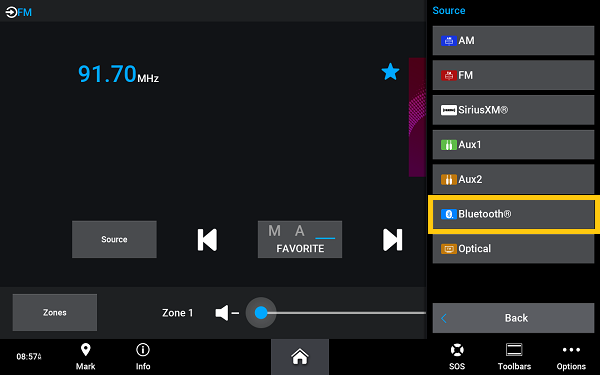

Select Source > Bluetooth

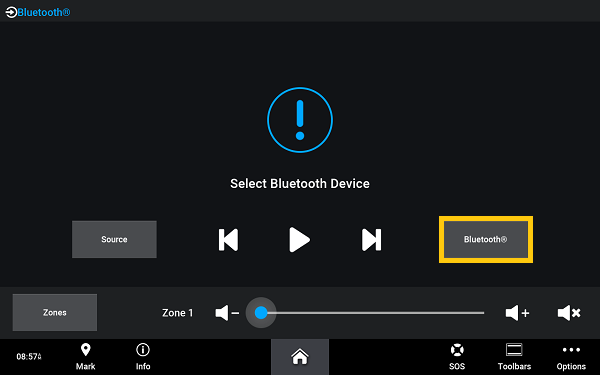

Select Bluetooth again

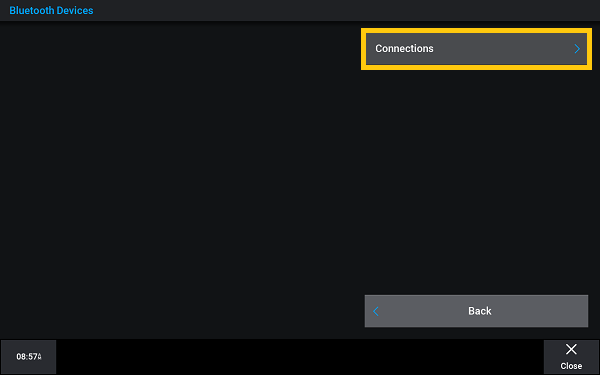

Select Connections

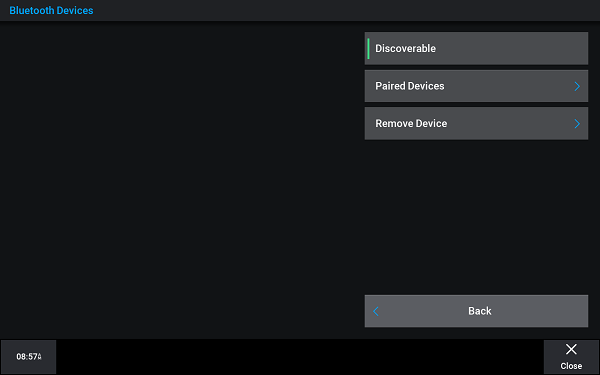

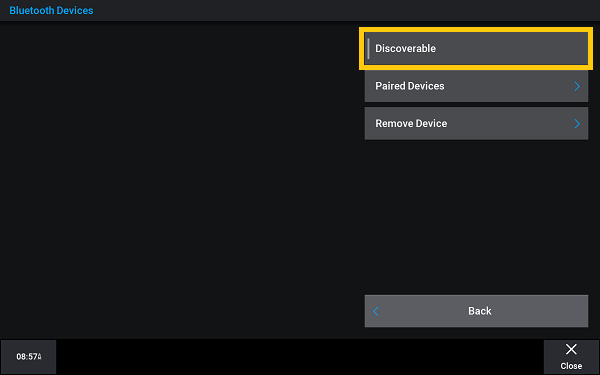

Select Discoverable to make the stereo discoverable via Bluetooth

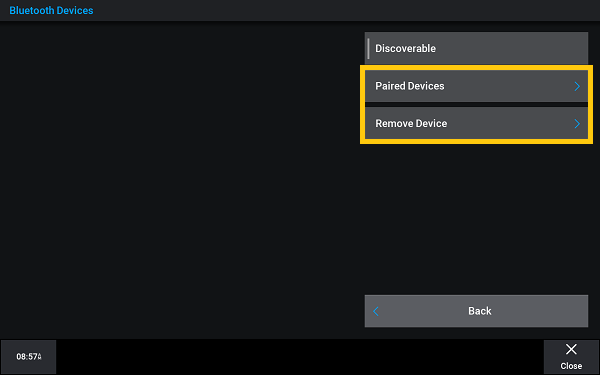

The options to show Paired Devices and Remove Paired Devices also appear here

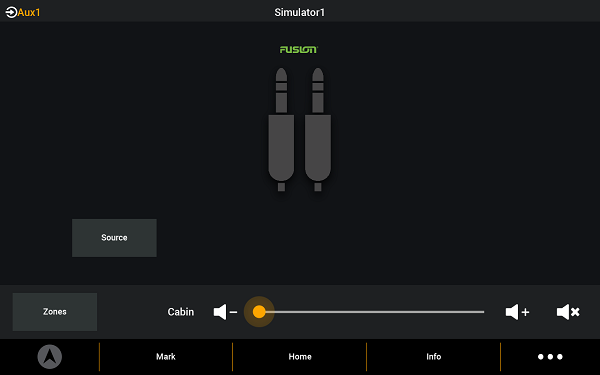

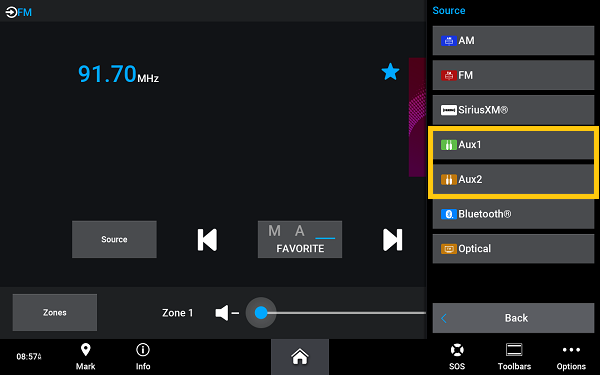

Auxiliary Source

Plays audio from a device connected to the Auxiliary port

Options menu

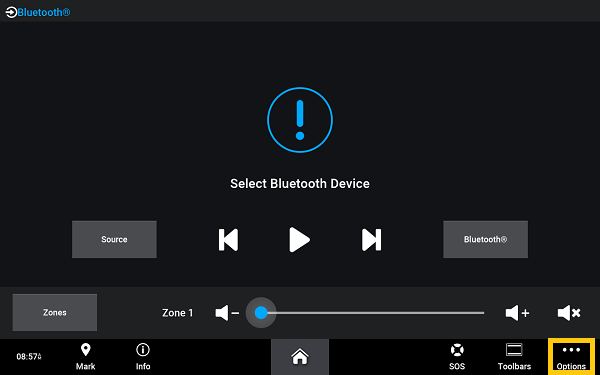

From the media page, select Options

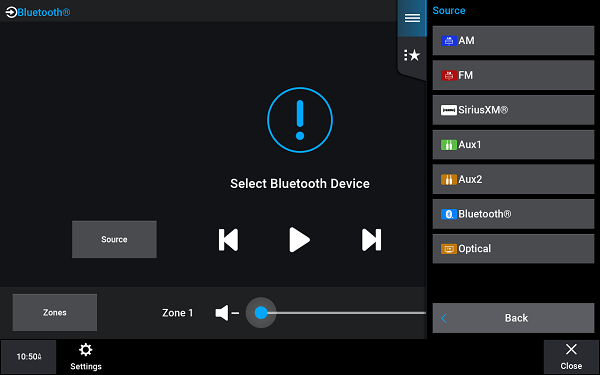

Source changes sources just like Source on the main screen

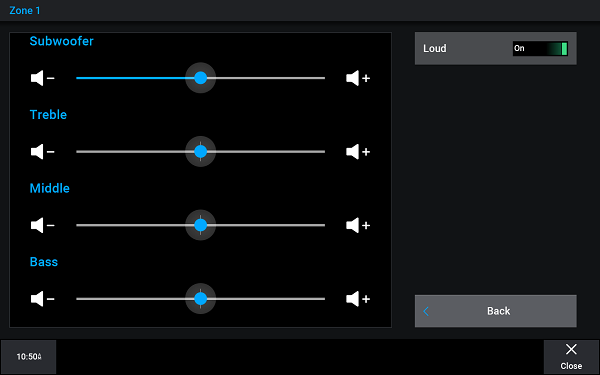

Audio Levels adjusts the Subwoofer, Treble, Middle, and Bass
The Loud setting maintains frequency response at low volumes and increases perceived loudness at high volumes
- Loud is enabled by default in all zones
Power turns on and off all connected stereos

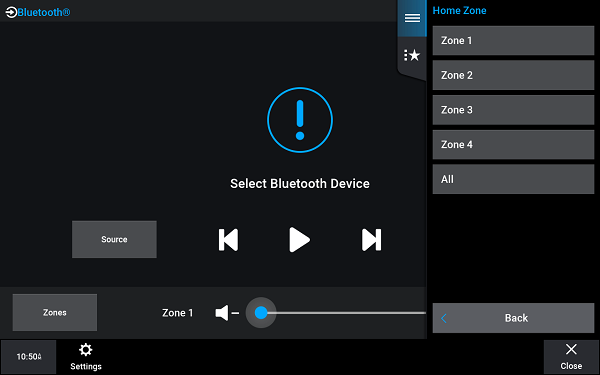

Home Zone changes which zone from which connected media device is adjusted by default when adjusting volume

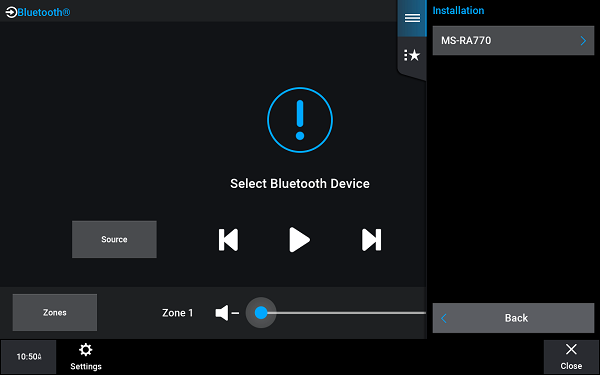

Installation chooses which connected stereo or other media device is being controlled
