Transducer Wiring Diagrams For the GSD™ 24 Sonar Module

Select a transducer model below to view the wiring diagram needed when connecting to a GSD™ 24 sonar module. To connect a transducer to a GSD™ 26 sonar module, see Related Content below


Plastic Transom Mount Transducer with Depth & Temperature (Dual Frequency, 6-pin)


Garmin Part Number: 010-10272-00

Airmar Part Number: Garmin Transducer

Dual Frequency Wiring Diagram Example


Garmin Bronze Thru-Hull Dual Frequency 50/200kHz Transducer Depth Only - Airmar B117 Depth Only


Garmin Part Number: 010-10182-00

Airmar Part Number: B117 Depth only

* This transducer does not have temperature capability, so you must install a jumper between connectors 4 and 5 on the wire block.

B117 Wiring Diagram Example


Garmin Bronze Thru-Hull Dual Frequency 50/200kHz Transducer Depth Only w/ Temp - Airmar B117 w/ Temp


Garmin Part Number: 010-10182-01

Airmar Part Number: B117 w/ Temp


Bronze Thru-hull Mount Transducer with Depth, Speed & Temperature (6-pin) - Airmar B744V


Garmin Part Number: 010-10183-02

Airmar Part Number: B744V

B744V Wiring Diagram Example


Plastic Transom Mount Transducer with Depth, Speed & Temperature (Triducer, 6-pin) - Airmar P66


Garmin Part Number: 010-10192-01

Airmar Part Number: P66

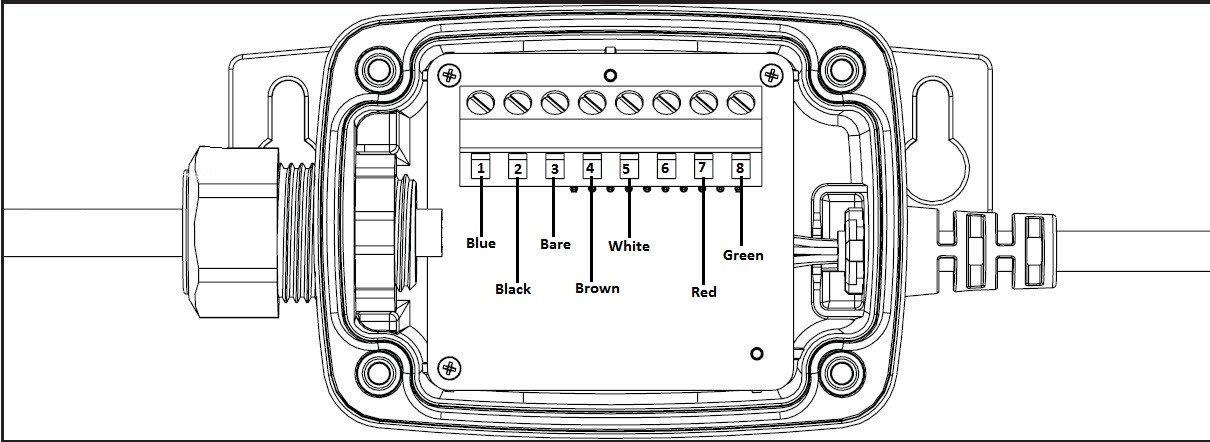

P66 Wiring Diagram Example


Garmin Thru Hull Triducer Long Stem 50/200khz High Speed Fairing Block W/6-Pin -Airmar B744vl


Garmin Part Number: 010-10193-02

Airmar Part Number: B744VL Long stem

B744VL Long stem Wiring Diagram Example


Garmin Thru-Hull Dual Frequency Transducer Depth Only - Airmar P319


Garmin Part Number: 010-10194-00

Airmar Part Number: P319 Depth Only

* This transducer does not have temperature capability, so you must install a jumper between connectors 4 and 5 on the wire block.

P319 Depth Only Wiring Diagram Example


Garmin Thru-Hull Dual Frequency Transducer w/ Temp - Airmar P319


Garmin Part Number: 010-10194-01

Airmar Part Number: P319 w/ Temp


Plastic In-hull Mount Transducer with Depth (6-pin) - Airmar P79


Garmin Part Number: 010-10327-00

Airmar Part Number: P79 Adjustable In-Hull

* This transducer does not have temperature capability, so you must install a jumper between connectors 4 and 5 on the wire block.

P79 adjustable in-hull wiring diagram example


Plastic In-hull Mount Transducer with Depth (6-pin) - Airmar M260


Garmin Part Number: 010-10445-00

Airmar Part Number: M260

* This transducer does not have temperature capability, so you must install a jumper between connectors 4 and 5 on the wire block.

** The orange wire color is brown if the transducer was made before February 1, 2007.

M260 Wiring Diagram Example


Garmin 50/200khz D/t 1kW Bronze Thru-Hull Transducer (8 Pin) - Airmar B260


Garmin Part Number: 010-10451-00

Airmar Part Number: B260

B260 Wiring Diagram Example


Bronze Tilted Thru-Hull Transducer with Depth & Temperature (20° tilt, 6-pin) - Airmar B60


Garmin Part Number: 010-10982-00

Airmar Part Number: B60 w/ 20 Degree

B260 20 Degree Wiring Diagram Example


Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt, 6-pin) - Airmar B60


Garmin Part Number: 010-10982-01

Airmar Part Number: B60 w/ 12 Degree

B60 12 Degree Wiring Diagram Example


Garmin Transducer 200 50/200kHz 600W Bronze Thru-Hull - Airmar B45 Narrow Stem


Garmin Part Number: 010-10983-00

Airmar Part Number: B45 Narrow Stem

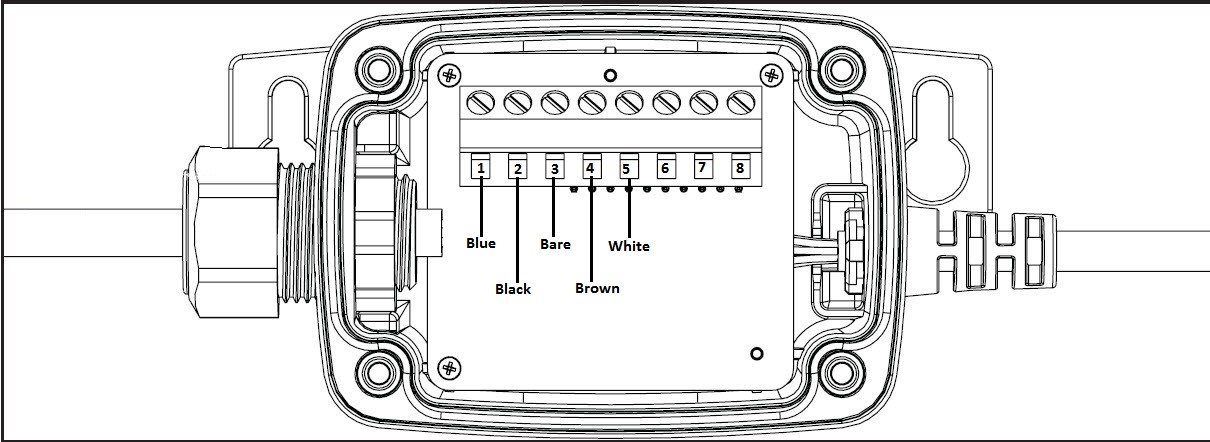

B45 Wiring Diagram Example


Airmar B260


Garmin Part Number: 010-10640-00

Airmar Part Number: B260

** The orange wire color is brown if the transducer was made before February 1, 2007.

Airmar B260 Wiring Diagram Example


Plastic In-hull Mount Transducer with Depth (8-pin) - Airmar M260


Garmin Part Number: 010-10641-00

Airmar Part Number: M260

*This transducer does not have temperature capability, so you must install a jumper between connectors 4 and 5 on the wire block.

** The orange wire color is brown if the transducer was made before February 1, 2007.

Airmar M260 Wiring Diagram Example


Plastic Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar R99


Garmin Part Number: 010-10642-00

Airmar Part Number: R99

** The orange wire color is brown if the transducer was made before February 1, 2007.

Airmar R99 Wiring Diagram Example


Bronze In-hull Mount Transducer with Depth (6-pin) - Airmar R199


Garmin Part Number: 010-10643-00

Airmar Part Number: R199

*This transducer does not have temperature capability, so you must install a jumper between connectors 4 and 5 on the wire block.

** The orange wire color is brown if the transducer was made before February 1, 2007.

Airmar R199 Wiring Diagram Example


Garmin 6 Pin Bronze 1KW Thru-Hull Transducer - Airmar B258


Garmin Part Number: 010-10703-00

Airmar Part Number: B258

** The orange wire color is brown if the transducer was made before February 1, 2007.

Airmar B258 Wiring Diagram Example


Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 6-pin) - Airmar B164


Garmin Part Number: 010-11010-00

Airmar Part Number: B164 w/ 20 Degree


Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt, 6-pin) - Airmar B164


Garmin Part Number: 010-11010-01

Airmar Part Number: B164 w/ 12 Degree


Garmin Thru-Hull Dual Frequency Transducer - Airmar SS270W


Garmin Part Number: 010-11140-00

Airmar Part Number: SS270W Widebeam

*If there are multiple Bare wires, twist them together and then connect both to Pin 3.

SS270W widebeam Wiring Diagram Example


Plastic Transom Mount with Depth & Temperature (6-pin) - Airmar TM260


Garmin Part Number: 010-11395-00

Airmar Part Number: TM260

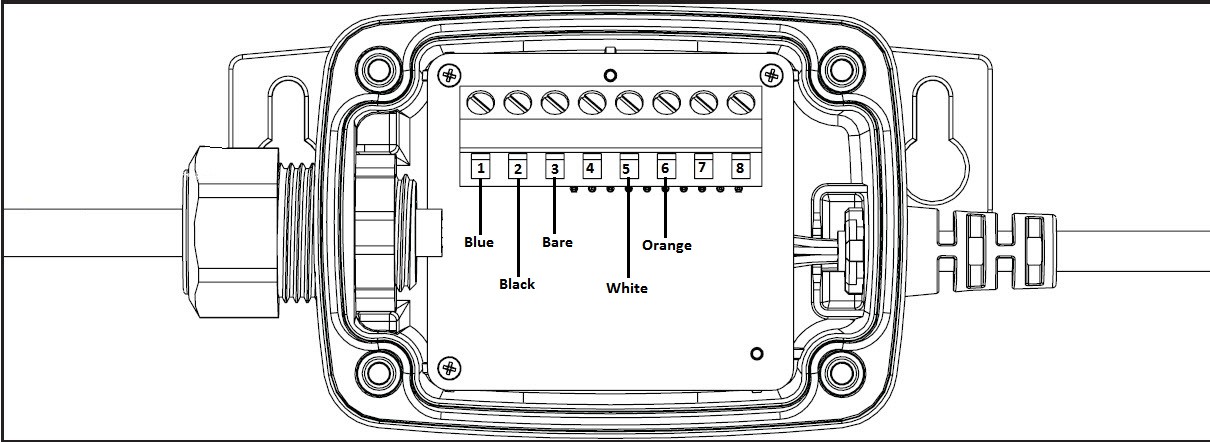

TM260 Wiring Diagram Example
