Installing Topo North America Regional Data Discs to the Earthmate GPS PN-60

The Earthmate® GPS PN-60 comes with several Regional GPS DVDs that have detailed topo and street maps from Topo North America already in the PN Map Format. Please follow the instructions below to install these discs.

Automatic Setup

Follow the instructions below to install the Regional Data disc to an Earthmate PN-60 GPS. To manually install the data please scroll down or   for instruction.

  1. Plug the Earthmate PN-Series GPS into the PC.

  2. Insert a Topo North America Regional Data disc. These discs are packaged with the GPS and come in white paper sleeves.

  3. The setup should begin automatically. If not, please browse the disc and double-click the Setup.exe file.

  4. Click Next.

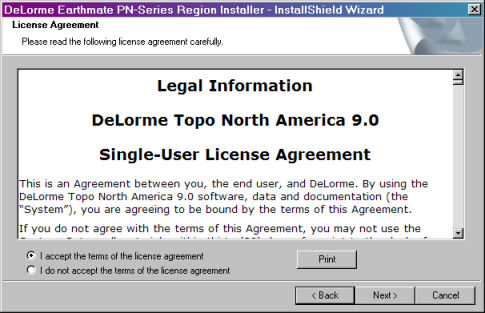

  5. Accept the terms of the license agreement and click Next


  6. Setup will inspect your system for SD cards and attached PN-Series devices.

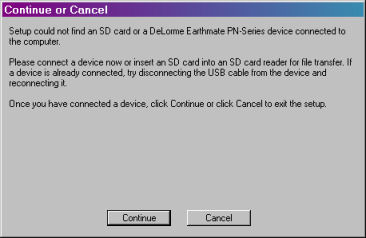

    Note:If you receive the message below, please follow the instructions below the image to correct the issue.


    Instructions to correct an undetected PN-Series GPS device


    1. Unplug and restart the PN-Series device.
    2. Reboot the PC.
    3. Plug in the PN-Series GPS.
    4. Run the setup for the Regional Data Disc again.
    5. Continue onto step 7 below.

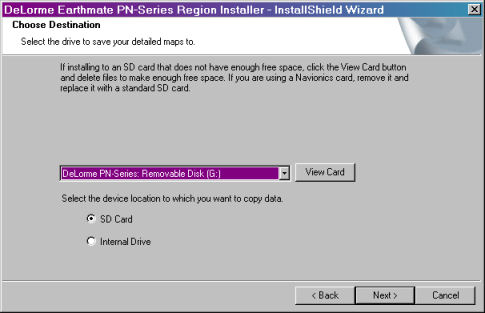

  7. Choose the destination of the Regional Map Data and click Next.

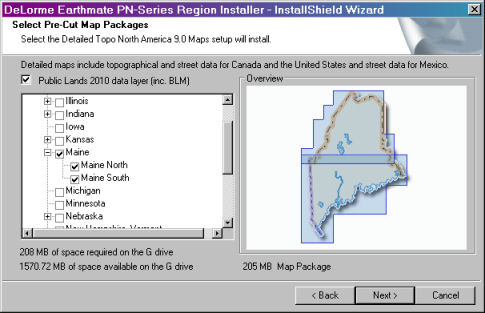

  8. Place a check in the desired region and click Next.

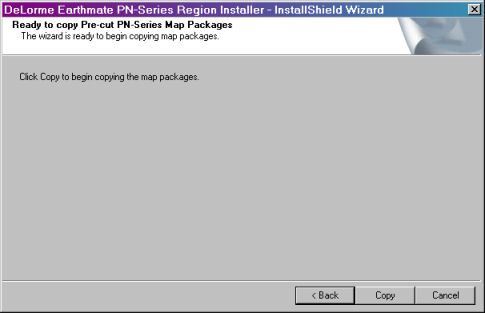

  9. Click Copy.

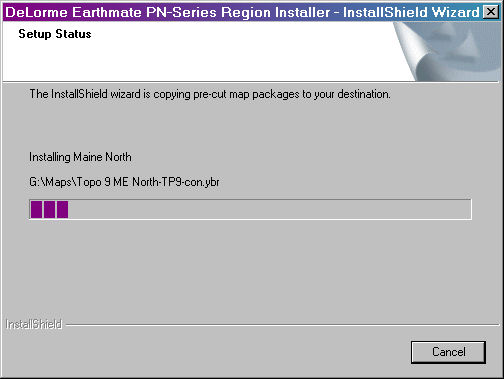

  10. The copy process begins.

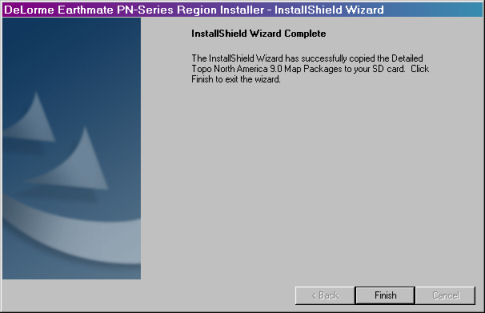

  11. Click Finish.


  12. The data is now installed on the Earthmate GPS.

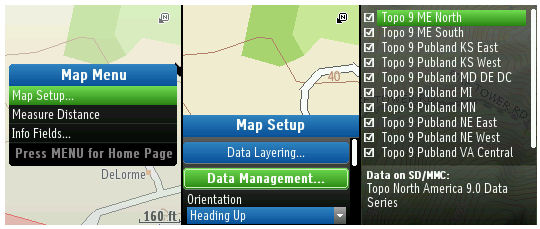

    To verify the data is installed, go to the Map pageRightArrow.jpgMENU buttonRightArrow.jpgMap SetupRightArrow.jpgData Management

Manual Installation

To manually copy the maps please follow the instructions below.

  1. Insert the Regional Map Data disc and cancel the installation if it starts.

  2. Turn on and plug in the PN-Series GPS device.

  3. Choose Settings.


  4. Choose Connect to Computer.


  5. Choose the destination location (either Internal or the SD Card)


  6. The drive will show as connected. Leave this screen showing on the Earthmate GPS PN-60.


  7. Open your Computer or My Computer icon on your PC.

  8. Right-click the DVD drive and choose Explore.

  9. Open the Maps folder.

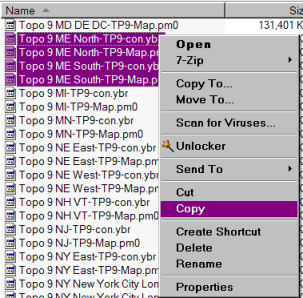

  10. Highlight the maps you want and right-click them and choose Copy.
    Note: You need to copy both the .ybr and .pm0 files for each map.


  11. Browse to the SD Card or EM_USERMAPS within My Computer or Computer.


  12. Open the Maps folder.  (If the card does not have a Maps folder go ahead and create one)

  13. Paste the files from the clipboard into the Maps Folder.

  14. The data is now installed on the Earthmate GPS.
    To verify the data is installed, go to the Map pageMENU buttonMap SetupData Management
