Pairing the Alpha 200 Plus and Alpha 300 Series with compatible Alpha Handhelds for Contact Tracking and Messaging

With the Alpha® series dog tracking handheld devices, you can track other Alpha handhelds on the map so you know where they are at all times. You can also send messages to your contacts. These features are called Contact Tracking and Contact Messaging. The communication signal transmits over MURS (Multi-Use Radio System) and is not related to the inReach®/Iridium satellite system capabilities or tools of the Alpha 300 series and Alpha 200 series handhelds. There is no charge to use Contact Tracking and Contact Messaging.

An Alpha handheld device can track up to 20 other devices at a time (including compatible dog collar devices and other Alpha handheld devices).

Contact Tracking must be turned on for these features to be enabled. It is turned OFF by default.


Adding Contacts on your Alpha 200 Plus, Alpha 300, or Alpha 300i Handheld

Before you can send a message to your contacts you must turn on the transmitter.

  1. Select Dog List
  2. Select Contacts
  3. Select Menu Lines
  4. Select Pairing Set Up
  5. Toggle Transmitting On

Once transmitting is turned on you will be able to add another Alpha handheld as a contact for messaging.

Adding Alpha 200 or Alpha 200i Handheld

  1. Touch Dog List.
  2. Touch Contacts Tab.
    • Ensure Transmitting is On
  3. Touch Add.
  4. Touch Pair Handheld.
  5. The on-screen instructions now prompt you to Select Pair on the Alpha 200i handheld
  6. On the Alpha 300i handheld
    1. From the home screen, touch the App Drawer (arrow in bottom-middle of screen)
    2. Touch Contacts
    3. Touch Pair
  7. The Alpha 200i handheld will provide a keyboard to type a name for the Alpha 300i Contact.
  8. Touch Check Mark when done entering the name.

The contact has now been added. Follow the steps below to complete the process.

Adding Alpha 100 Handheld

  1. From Alpha 100 handheld's Home screen, touch the App Drawer (arrow in bottom-middle of screen).
  2. Touch Contacts.
    • Ensure Transmitting is On
  3. Touch Add.
  4. Touch Yes when prompted "Are you near the other handheld?"
  5. On the Alpha 300i handheld:
    1. Touch Dog List.
    2. Touch Contacts Tab.
    3. Touch Pair.
    4. The on-screen instructions now prompt you to select Add on the first handheld (which has already been done).
  6. The Alpha 100 handheld will provide a keyboard to type a name for the Alpha 300i Contact.
  7. Touch Check Mark when done entering the name.

The contact has now been added, and the process has been completed.

Adding Alpha 10 Handheld

On the Alpha 10 Handheld

  1. Press Menu to bring up the main menu.
  2. Select Setup.
  3. Select Transmission ID.
  4. Ensure Status is On.
  5. Make note of the ID number, that will be entered in the second handheld in the next steps.

On the Alpha 300 Handheld

  1. From the Main Menu, select Dog List.
  2. Select the Contacts tab Alpha Contacts near the top middle of the screen.
  3. Select Add.
  4. Select Enter ID.
  5. Select the Alpha 10 handheld's ID number.
  6. Enter a name for the Alpha 10 contact, when done typing, confirm with checkmark in bottom right of keyboard.
  7. Select Finish.

Sending Messages

You can send and receive automated messages. There are 18 messages you can choose from, such as "Help" and "I'm Coming."

  1. Select Dog List
  2. Select Contacts
  3. Select a message.

The message is sent to your contacts with your name before the message. Anyone tracking your handheld device receives the message.


Viewing Messages

Messages will appear on the handheld screen for approximately 10 seconds before disappearing.

Alpha 200/300 Series

You are able to view previous messages on the Alpha 200 or Alpha 300 series handheld by pressing the power button and selecting the Alerts button indicated by a bell on the handheld.

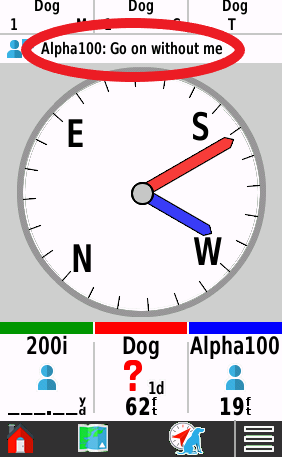

Alpha300 Compass Message

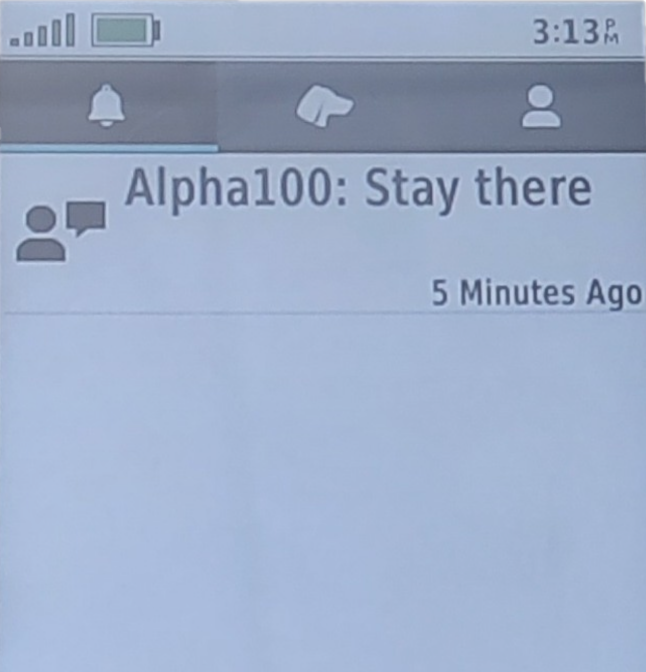

Alpha 300 Previous Messages

Alpha 100

NOTE: You are not able to view previous messages on the Alpha 100 handhelds.

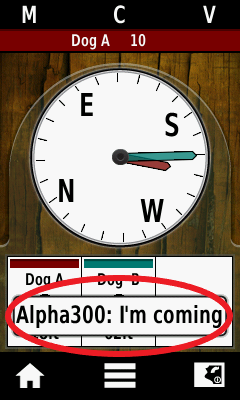

Alpha 100 Message
