EmpirBus™ Graphic Installation on Raymarine MFD Lighthouse III

Lighthouse 2 files cannot be installed to a Lighthouse 3 system without a file conversion. Contact the Raymarine dealer or support@empirbus.com for help converting the file.

Before the graphic file can be installed, copy the RMDS.zip file onto a micro/SD card and insert the card into the MFD card reader. The RMDS file must remain zipped and the name must not contain spaces or special characters.

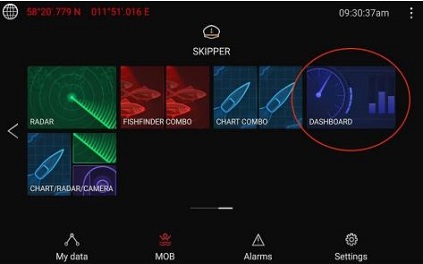

  1. Select DASHBOARD
    home page dashboard circled

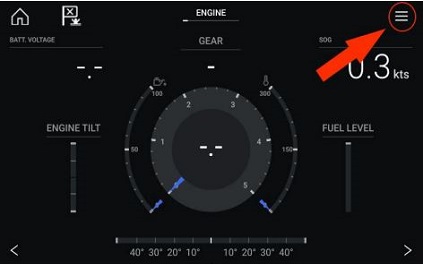

  2. Select the menu icon
    dashboard menu circled

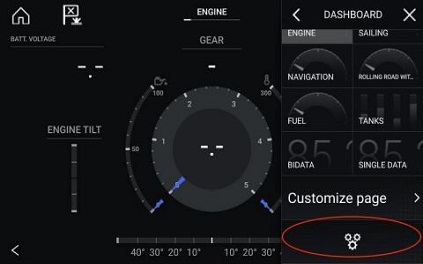

  3. Select the settings icon
    dashboard menu settings circled

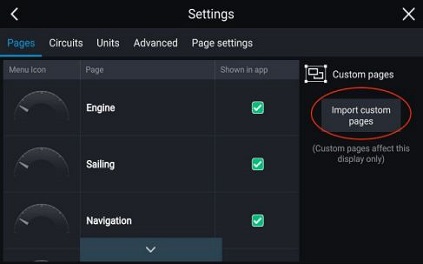

  4. Select Import custom pages
    import custom pages circled

  5. Select the file to be installed
    select graphical file

  6. Restart the MFD

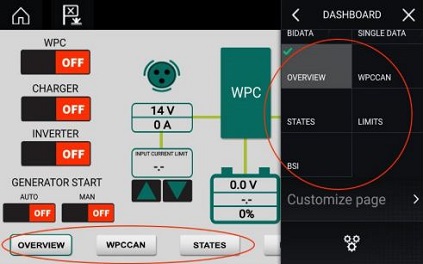

If the file contains page navigation buttons, they can be accessed within the dashboard menu.

 page navigation buttons


Files without page navigation buttons can also be accessed from the dashboard menu.

no page navigation buttons
