Single Voice Coil (SVC) Wiring Tutorial

With multi-driver sub systems, the level of wiring complexity can be enough to turn-off even the most adventurous of car audio do-it-yourselfers. Fear not, though, for we have compiled wiring diagrams of several configurations for single voice coil (SVC) drivers. Please note that when wiring multiple drivers, it is recommended that series connections between drivers be avoided at all costs. This does not include series connections made between voice coils on the same driver. For more information, please consult our dual voice coil tutorial section. Additionally, if the user has an idea for a wiring configuration that is not seen here, the user should re-think its implementation (in other words, don’t do it). Most likely, the results will be less than optimal.

Note: Amplifier depicted is for reference only - check the capability of the amplifier before making any connections

One SVC Driver

Two terminals (+ and -) on the speaker and two leads from the amp, also labeled + and -.

One Single Voice Coil Speaker

• 2 Ohm Subwoofer: 2 Ohms

• 3 Ohm Subwoofer: 3 Ohms

• 4 Ohm Subwoofer: 4 Ohms

• 8 Ohm Subwoofer: 8 Ohms

• 12 Ohm Subwoofer: 12 Ohms

Two SVC Drivers with Voice Coils in Parallel

Wire both woofer (+) to the amplifier’s (+), and do the same with the (-) connections.

Two Single Voice Coil Speakers In Parallel

• 2 Ohm Subwoofer: 1 Ohm

• 3 Ohm Subwoofer: 1.5 Ohms

• 4 Ohm Subwoofers: 2 Ohms

• 8 Ohm Subwoofers: 4 Ohms

• 12 Ohm Subwoofers: 6 Ohms

Three SVC Drivers with Voice Coils in Parallel

All woofer (+) to the amp (+). All woofer (-) to the amp (-) connections.

Three Single Voice Coil Speakers in Parallel

• 2 Ohm Subwoofers: 0.67 Ohm

• 3 Ohm Subwoofers: 1 Ohm

• 4 Ohm Subwoofers: 1.33 Ohms

• 8 Ohm Subwoofers: 2.66 Ohms

• 12 Ohm Subwoofers: 4 Ohms

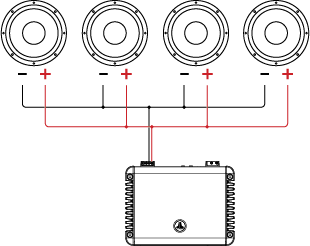

Four SVC Drivers with Voice Coils in Parallel

All woofer (+) to the amp (+). All woofer (-) to the amp (-) connections.

Four Single Voice Coil Speakers in Parallel

• 2 Ohm Subwoofers: 0.5 Ohms

• 3 Ohm Subwoofers: 0.75 Ohms

• 4 Ohm Subwoofers: 1 Ohm

• 8 Ohm Subwoofers: 2 Ohms

• 12 Ohm Subwoofers: 3 Ohms

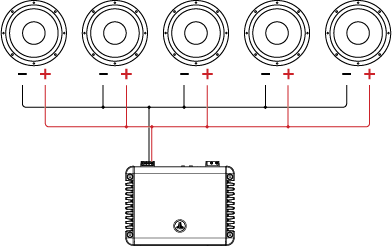

Five SVC Drivers with Voice Coils in Parallel

All woofer (+) to the amp (+). All woofer (-) to the amp (-) connections.

Five Single Voice Coil Speakers in Parallel

• 2 Ohm Subwoofers: 0.4 Ohms

• 3 Ohm Subwoofers: 0.6 Ohm

• 4 Ohm Subwoofers: 0.8 Ohm

• 8 Ohm Subwoofers: 1.6 Ohms

• 12 Ohm Subwoofers: 2.4 Ohms

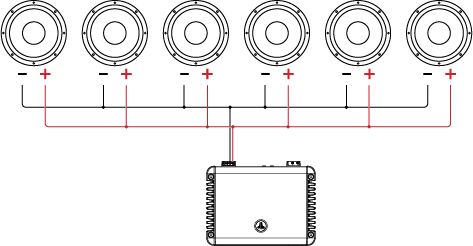

Six SVC Drivers with Voice Coils in Parallel

All woofer (+) to the amp (+). All woofer (-) to the amp (-) connections

Six Single Voice Coil Speakers in Parallel

• 2 Ohm Subwoofers: 0.33 Ohm

• 3 Ohm Subwoofers: 0.5 Ohm

• 4 Ohm Subwoofers: 0.67 Ohm

• 8 Ohm Subwoofers: 1.33 Ohms

• 12 Ohm Subwoofers: 2 Ohms
