How Do I Use the Music Controls on an Edge 540?
Edge® 540 and Edge® 540 Solar cycling computers feature a widget or data screen that allows you to control the music on a paired smartphone. Available features include play, pause, skip to the next or previous track, and volume. This will control the last used media player on your paired smartphone. For Edge compatibility, refer to your owner's manual.
NOTE: This feature requires your Edge to be paired to the Garmin Connect™ App.
Add the Music Controls Widget
Select .
Select System.
Select Widgets.
Select Add Widgets.
Select the Music Controls.
Accessing the Music Controls Widget
From the Home Screen
Select until the settings widget appears.
Select or until the music widget appears.
During a Ride
Select (upper right button).
select Widgets.
Select or until the music widget appears.

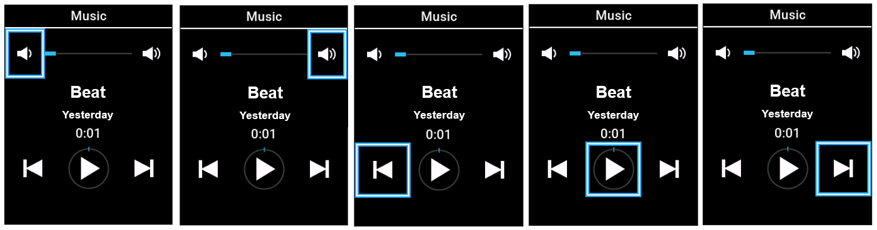

Using the Music Controls Widget
Once on the Music Controls widget using the steps above, Select or to highlight the control you would like.
When the control you would like is highlighted, select it with (upper right).
Adding the Music Controls Data Screen
Select .
Select Activity Profiles.
Select a Profile.
Select Data Screens.
Select Add Data Screen.
Select Music Controls.

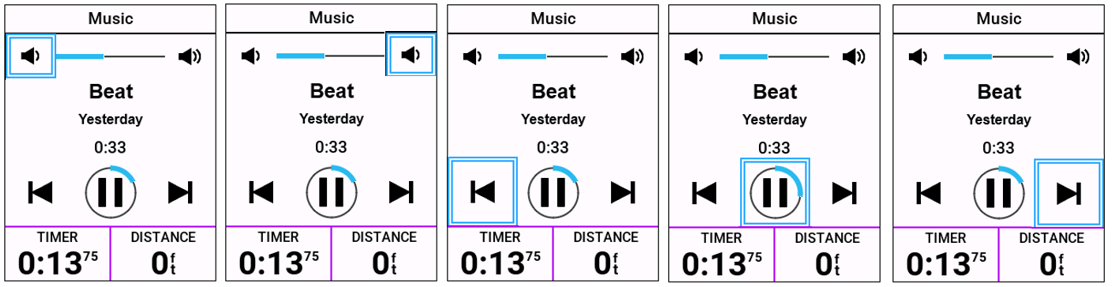

Using the Music Controls Data Screen
Scroll to the Music Controls Data Screen during a ride.
Long press (upper right) to enable selections.
Select or to highlight the control you would like.
When the control you would like is highlighted, select it with (upper right).
The Music Control Widget Is Not Controlling the Last Used Media Player on My Phone
This issue requires you to ensure that all app permissions are enabled. Select a phone platform below to reveal instructions:
Step 2: Confirm That Notification Access Has Been Granted to the Garmin Connect App
Location of this setting will vary by phone manufacturer. If you cannot find this setting, contact your phone manufacturer for assistance. The following are general steps and may not match your particular model phone.
Open the phone's Settings menu.
Select the magnifying glass icon at the top of the screen.
Input “Access” into the search box.
Select Notification Access or Access to Notifications.
On some phones you may need to select Special Access first.
.
