(2023) Service Bulletin 23103 Rev A: G5000 System Software Version 3343.05 for Textron Aviation Model 560XL

PRODUCTS AFFECTED:

All G5000 Integrated Flight Decks installed in Textron Aviation Inc. (Cessna) Model 560XL aircraft equipped with G5000 System Software Version 3343.04 or earlier approved under STC ST01918WI are affected.


CERTIFICATION AUTHORIZATION:

STC ST01918WI MDL Revision 26


COMPLIANCE:

Optional: This STC service bulletin may be incorporated at the owner’s discretion.


DOCUMENTATION CONSIDERATIONS:

Existing Cockpit Reference Guides and Pilot Guides are retained for the installation. The applicable AFMS listed in Table 2 is required to be issued to the aircraft owner/operator before the aircraft is returned to service.

Document TitlePart NumberRevision (or later)
Airplane Flight Manual Supplement, G5000 Integrated Avionics System In Textron Aviation Inc. Citation Model 560XL190-02313-039
G5000 Integrated Avionics System Pilot’s Guide Cessna Citation 560XL/XLS System Software Version 3343.02 or later190-02537-02A
G5000 Integrated Avionics System Cockpit Resource Guide, Cessna Citation XL/XLS System Software Version 3343.02 or later190-02538-02A

The revised AFMS document describes new features and functionality.


PURPOSE:

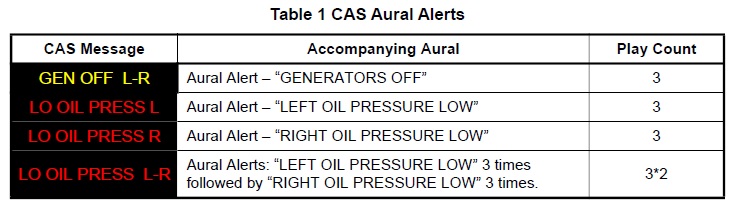

STC ST01918WI, Master Drawing List 005-01202-00 Rev 26 approves G5000 System Software Version 3343.05. This software inhibits engine-related crew alerting system (CAS) aural alerts listed in Table 1 when the aircraft is on the ground and the engine(s) is intentionally shut off by the crew.

NOTE
The CAS messages will appear on the display as previously certified.

KM1718006_1


WARRANTY INFORMATION:

This modification is not warranty reimbursable.
