Understanding the Satellite Page on Outdoor Handhelds

The Satellite page on outdoor handhelds displays satellite acquisition data and related information like position accuracy, current GPS-based elevation, and UTC time at the device's current location.


Satellite Page Definitions on Outdoor Handhelds

Select an option for a visual example of each element on the Satellite page

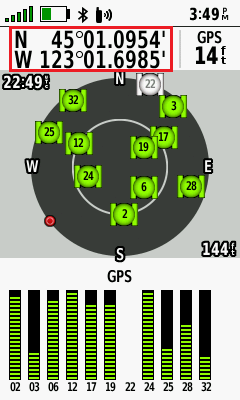

Coordinates

Displays the devices current GPS position.

Red Box Around Coordinates on the Satellite Page

GPS Accuracy

Displays the distance of closeness to the actual position. See Related for more information on improving the accuracy.

Red Box Around GPS Accuracy

Current Time in UTC

Red Box Around the Time

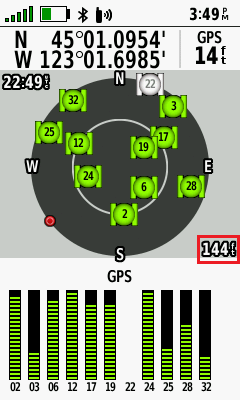

GPS-Based Elevation

Red Box Around Elevation Data

Satellites Acquired

Satellites that have color indicate acquired satellites the device is receiving signal from.

Red Box Around an Acquired Satellite

Satellites Not Acquired

Satellites without color indicate satellites that have not acquired signal.

Red Box Around a Satellite Not Acquired

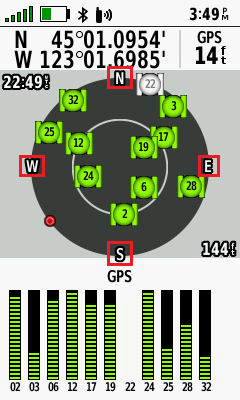

Cardinal Direction

Red Boxes Around Cardinal Directions

Compass Heading

The direction the device is pointing at any given moment.

Red Box Around Compass Heading Position

Satellite Signal Strength

Indicates the strength of each satellites signal provided to the device.

Red Box Around GPS Signal Strength Indicators

Psuedo-Random Noise Code (PRN-Code)

Allows the receiver to identify which satellite it is receiving signal from.

Red Box Around PRN-Code

Additional Satellite Networks (GLONASS & GALILEO)

Multi-GNSS devices, when enabled, display additional satellite networks acquired either on a second screen or a second row of signal strength bars on the same page, depending on the model.

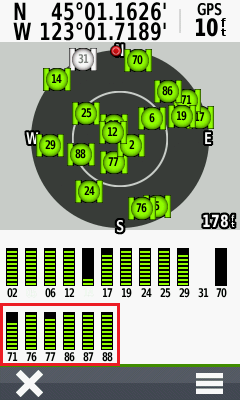

A Rino 755t satellite page showing GLONASS satellites acquired on a second row of signal strength bars.
Red Box Around Second Row GLONASS Satellites

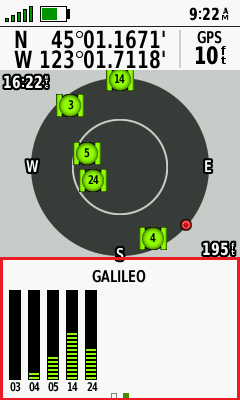

A GPSMAP 66i satellite page showing GALILEO satellites acquired on a second screen
Red Box Around Second Page GALILEO Satellites

Wide Area Augmentation System (WAAS)

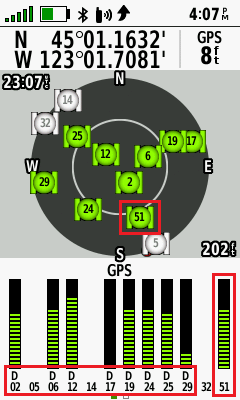

On compatible devices, with WAAS enabled, satellites with PRN-Codes 45, 48, and 51 may be present on the satellite page indicating the handheld has acquired a geostationary satellite relaying GPS signal correction data. Satellites actively receiving WAAS corrections display a "D" above the PRN-Codes below the Signal Strength Bars.

For information about WAAS, see What is WAAS?
Red Box Around WAAS Correction

For more information about specific terms on the Satellite page, reference the Garmin Glossary
