Squelch Modes in the Radio App on the zūmo XT

You can adjust the Squelch mode in the Radio App on the zūmo® XT GPS navigator to improve quality and avoid radio interference in your area.

NOTE: The Group Ride Radio (5.5") (Sold Separately) and a software update are required to use the Radio features.

Open - Manually adjust squelch for static noise

• Slightly better range performance.

CTCSS - Continuous Tone-Coded Squelch System

• Allows you to mute other people nearby using the same frequency.

• Only hear individuals who are in the Group Ride or have manually set to the same code.

• ---

  Supported CTCSS Codes:

  Supported CTCSS Codes

  Index	Frequency (Hz)	Index	Frequency (Hz)
  01	67.0	26	156.7
  02	69.3	27	159.8
  03	71.9	28	162.2
  04	74.4	29	165.5
  05	77.0	30	167.9
  06	79.7	31	171.3
  07	82.5	32	173.8
  08	85.4	33	177.3
  09	88.5	34	179.9
  10	91.5	35	183.5
  11	94.8	36	186.2
  12	97.4	37	189.9
  13	100.0	38	192.8
  14	103.5	39	196.6
  15	107.2	40	199.5
  16	110.9	41	203.5
  17	114.8	42	205.5
  18	118.8	43	210.7
  19	123.0	44	218.1
  20	127.3	45	225.7
  21	131.8	46	229.1
  22	136.5	47	233.6
  23	141.3	48	241.8
  24	146.2	49	250.3
  25	151.4	50	254.1

DCS - Digital Code Squelch

• Allows you to mute other people nearby using the same frequency.

• Only hear individuals who are in the Group Ride or have manually set to the same code.

• ---

  Supported DCS Codes:

  Supported DCS Codes

  Index	DCS Code	Index	DCS Code	Index	DCS Code	Index	DCS Code
  001	023	028	155	055	325	082	516
  002	025	029	156	056	331	083	523
  003	026	030	162	057	332	084	526
  004	031	031	165	058	343	085	532
  005	032	032	172	059	346	086	546
  006	036	033	174	060	351	087	565
  007	043	034	205	061	356	088	606
  008	047	035	212	062	364	089	612
  009	051	036	223	063	365	090	624
  010	053	037	225	064	371	091	627
  011	054	038	226	065	411	092	631
  012	065	039	243	066	412	093	632
  013	071	040	244	067	413	094	645
  014	072	041	245	068	423	095	654
  015	073	042	246	069	431	096	662
  016	074	043	251	070	432	097	664
  017	114	044	252	071	445	098	703
  018	115	045	255	072	446	099	712
  019	116	046	261	073	452	100	723
  020	122	047	263	074	454	101	731
  021	125	048	265	075	455	102	732
  022	131	049	266	076	462	103	734
  023	132	050	271	077	464	104	743
  024	134	051	274	078	465	105	754
  025	143	052	306	079	466
  026	145	053	311	080	503
  027	152	054	315	081	506

You can Adjust the Squelch and change between CTCSS, DCS, and Open Squelch Modes to improve Audio Quality and Avoid Radio Interference in your Area:

---

To Adjust the Squelch Mode on the zūmo XT:

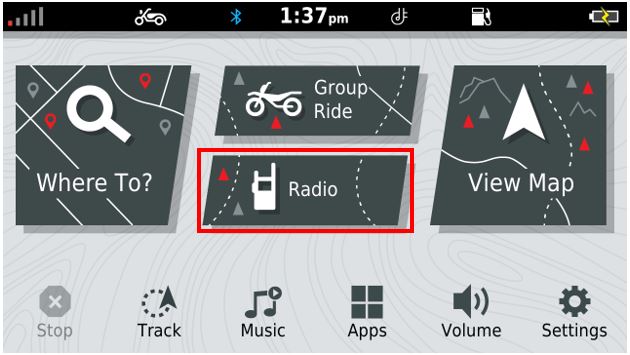

1. Touch Radio.



2. Touch one of the following options below.

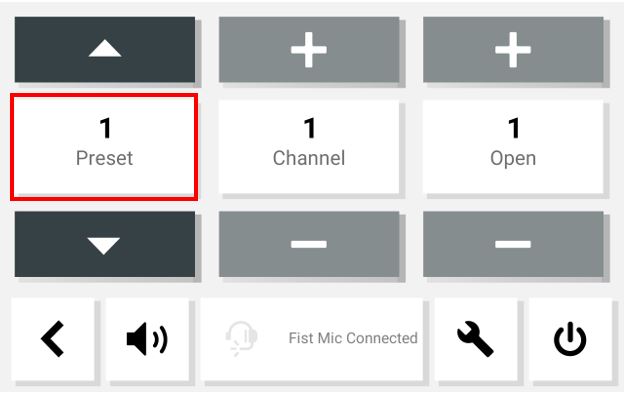

•  Touch Preset to view the available radio presets.

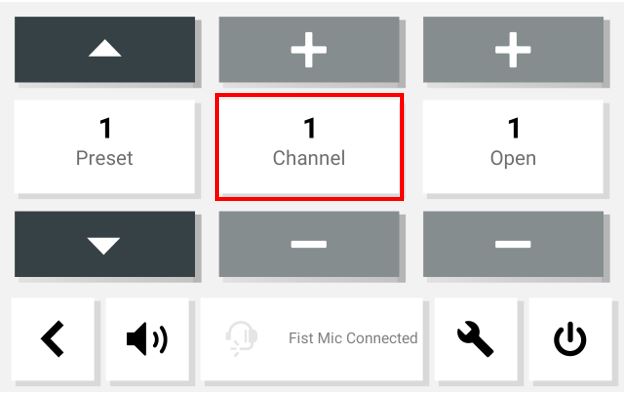

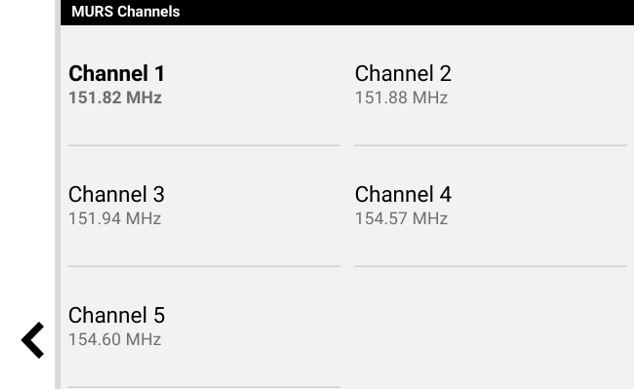

• Touch Channel to view the available MURS channels.

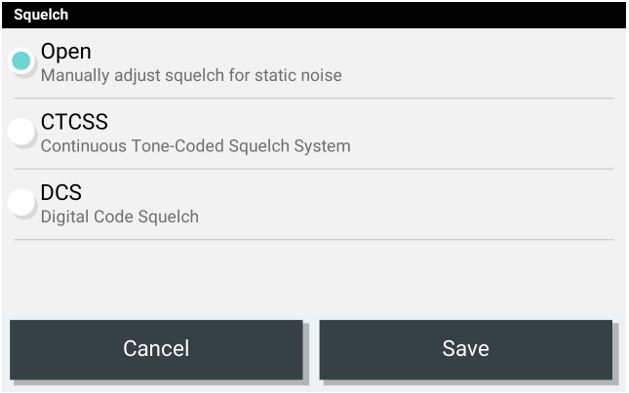

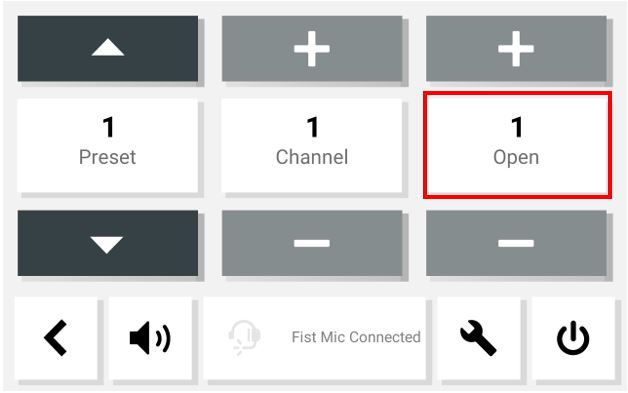

• Touch Open (Manually adjust squelch for static noise), CTCSS (Continuous Tone-Coded Squelch System), or DCS (Digital Code Squelch) depending on what current mode is selected to view the additional options.

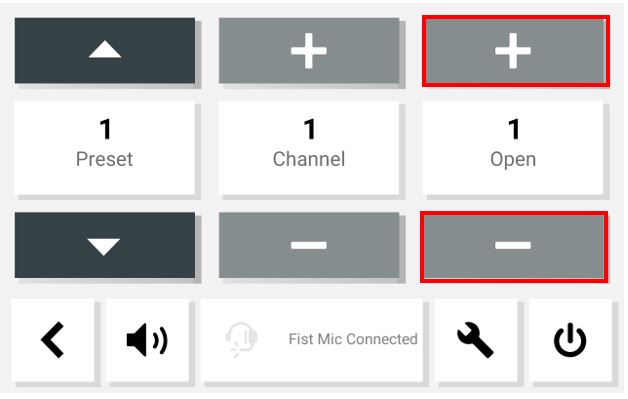

3. To Choose a squelch code within the current mode, select the plus or minus.
