GDL 60 Frequently Asked Questions for GTN Xi Installations

What is the GDL 60 and what will the GDL 60 do?

Answer:  The GDL 60 is an LRU/Datalink that enables our PlaneSync technology.  PlaneSync is a connected aircraft solution that automatically updates your avionics databases, and depending on your installation can potentially also log flight/engine data and allow you to remotely check fuel and systems status from the Garmin Pilot application.  By adding the GDL 60 datalink to your system, you can use Connext to stream weather, traffic, AHRS, flight plans, and other data from your avionics to flight apps such as Garmin Pilot and ForeFlight.


How do I switch between database regions on a GTN Xi?

Answer:

From the Home screen:

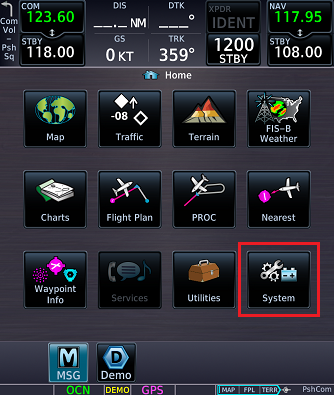

1.) Tap on System.

Update GTN Xi DB switch 1

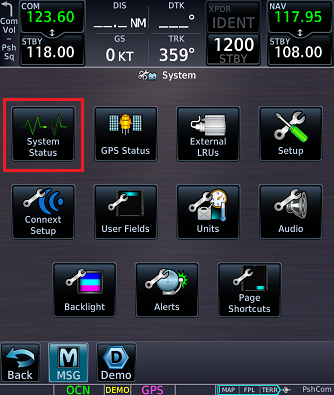

2.) System Status.

Update GTN Xi DB switch 2

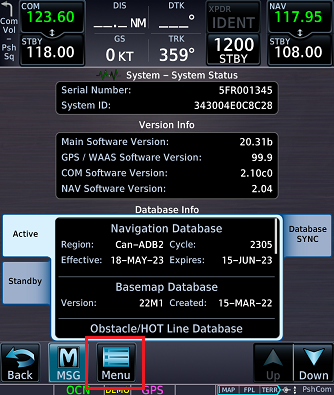

3.) Menu.

Update GTN Xi DB switch 3

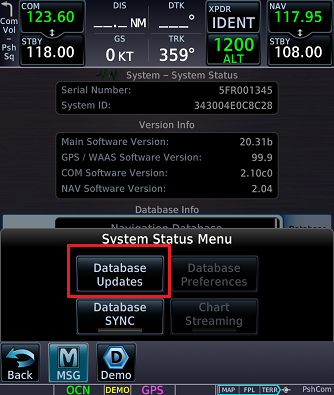

4.) Database Updates.

Update GTN Xi DB switch 4

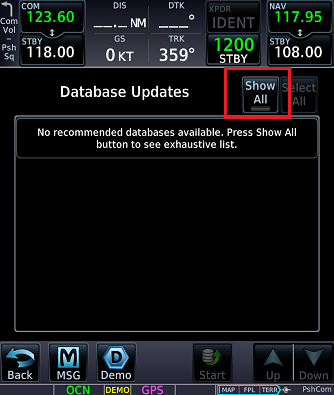

5.) Show All.

Update GTN Xi DB switch 5

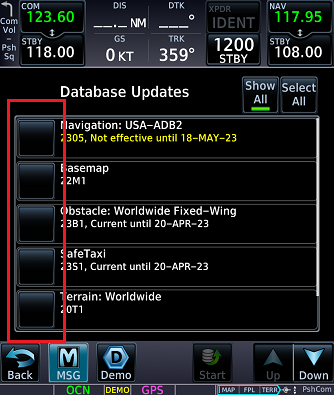

6.) Select the database(s) you wish to change the region for by tapping on the box next to the respective database. After touching the box, a green check mark will appear.

Update GTN Xi DB switch 6

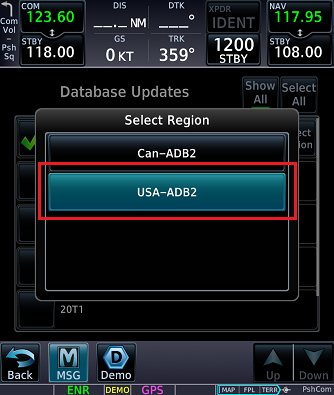

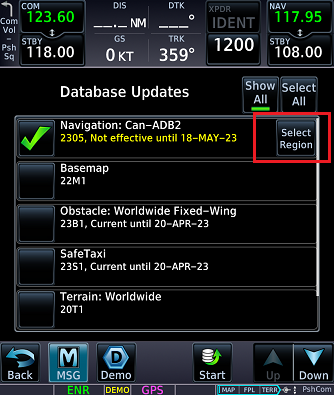

7.) Once the box is selected, a Select Region button will appear when more than one region is present for the same database and cycle. Press the Select Region button to select the region that you wish to make the active database. For demonstration purposes, we will choose USA - ADB2.

Update GTN Xi DB switch 9


Update GTN Xi DB switch 10

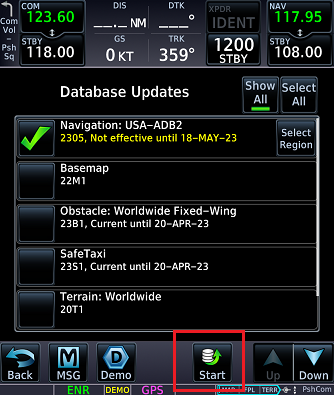

8.) After selecting the databases you wish to update, press the Start Button

Update GTN Xi DB switch 11

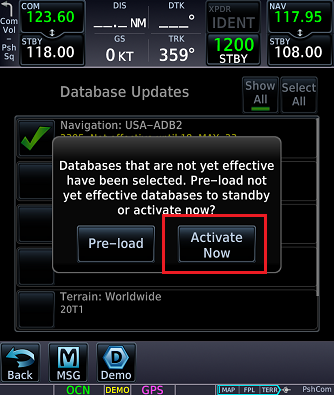

9.) A box may appear stating: "Databases that are not yet effective have been selected. Pre-load not yet effective databases to standby or activate now?" Pressing "Activate Now" will make the database that you have selected the current database.

Update GTN Xi DB switch 8

9.) A progress bar will appear showing the status of the database upload. Wait for the process to finish, making sure not to remove power to the unit while the update(s) are loading. The unit will then restart.

10.) After the process finishes, to view the databases that are both in the Standby and Active areas, from the Home screen go to > System > System Status > and click on the appropriate tab to view the databases that are now installed in the GTN.



What features require a subscription?

Answer:  Automatic database updates require an active database subscription, along with an LTE / WiFi or WiFi-only subscription.  Flight Data Log Uploading requires LTE / WiFi or WiFi-only subscription.  Aircraft Dashboard with the last-known state is available with a Wi-Fi subscription.  RAS (Remote Aircraft Status) requires an LTE subscription.


Why can't I use Remote Aircraft Status on WiFi Only?

Answer:  An LTE connection is required to wake up your aircraft for a Remore Aircraft Status.


What do I do if RAS didn't work?

Answer:  If RAS (Remote Aircraft Status) doesn't work, there are several troubleshooting steps to take.  First, ensure that the aircraft's battery has a sufficient charge.  The battery will require a certain level of voltage set by the installer to initiate a wake-up.  Second, be sure the GDL 60 has a good LTE signal.


What is the difference between RAS and PlaneSync?

Answer:  RAS (Remote Aircraft Status) is a sub-component of PlaneSync.  PlaneSync is an umbrella technology that encompasses flight log uploads, remote aircraft status, and automatic database updates.


How does the GDL 60 update the aircraft’s databases?

Answer:  When the aircraft is not in use (selectable by owner) the GDL 60, using battery power, will download updated databases and store them inside of the GDL 60.  When the avionics are turned on, the databases will synchronize across the displays.  After databases have been downloaded to the GDL 60 and subsequently synchronized to the attached LRUs:
- Terrain and Basemap will activate on the next power cycle
- FliteCharts/Chartview and IFR/VFR Charts will update in the background
- Navigation, SafeTaxi, Airport Directory, and Obstacles will update on the initial boot of the Avionics.


What is the power drain for the GDL 60 to download databases?

Answer:  About 14 Watt-Hours but can vary based on LTE service.  The GDL 60 monitors the ship’s battery voltage and will not attempt to retrieve databases when the voltage falls below installer set levels.  If the download is interrupted due to power, it will resume downloads once power is restored.


I like using the SD card or Database Concierge method for updating my charts, do I have to use the Automatic Database update tools?

Answer:  No, you don’t.  Either an SD card or Database Concierge will still work.


What is the database update priority when the GDL 60 is installed in my panel?

Answer:  This is the database update priority when the GDL 60 is installed in the panel:
1.) SD Card
2.) Database Concierge
3.) GDL 60
If there is a database SD card in the system the GDL 60 will NOT update because the SD card has the priority.


Can I use the GDL 60 with my Flight Stream 510?

Answer:  No, the Flight Stream 510 cannot be used with the GDL 60.


Will the GDL 60 download both the FliteCharts and Jeppesen Charts (Chartview) databases?

Answer:  Yes, it will be able to automatically download both.  If using Jeppesen, be sure the subscription package includes the GDL 60.  A FlyGarmin account is required for any database downloading, and your FlyGarmin and Jeppesen accounts must be linked.


What steps need to be taken to download a Jeppesen Subscription?

Answer:  To download Jeppesen databases, the Jeppesen databases need to be set for the correct avionics, including the GDL 60.  The account details in both FlyGarmin and Jeppesen need to be exactly the same.  This includes tail number, serial numbers, system IDs, and email address.  Finally, the link between the FlyGarmin and Jeppesen account needs to be established on FlyGarmin.


Should I delete all of the databases from the GDL 60 if I have a problem with my databases?

Answer:  The GDL 60 uses a new feature called incremental updates.  It doesn’t download the whole database each time, only the changes.  Imagine updating only the outdated charts vs throwing out the whole box of charts and starting over.  Deleting all of the databases will greatly increase the download time.  Please contact Garmin Aviation Support if you are having database issues.


Should I connect a phone or tablet to the GDL 60's internal Wi-Fi?

Answer:  GDL 60 internal Wi-Fi is available on Garmin Pilot for increased performance and advanced features such as Database Concierge, connecting to multiple devices, and streaming weather products.  Be sure to connect to the GDL 60's internal Wi-Fi when connecting to multiple devices and when streaming weather products.  Before connecting to internal Wi-Fi, devices must be paired via Bluetooth.  For best results, do not manually connect crew devices to the internal Wi-Fi network from the device settings page.  Garmin Pilot supports connection to GDL 60’s internal Wi-Fi network from within the Garmin Pilot app once pairing is complete.


What does the GDL 60 Battery Remaining Mean?

Answer:  It is the remaining percentage of the battery allocated for Databases and remote wake-ups.


Why can't I set up a GDL 60 on a dealer FlyGarmin account?
Answer:
The dealer will need to set up the aircraft from the customer's FlyGarmin account, using the new website feature that allows them to manage a customer's FlyGarmin account.


What is required for RAS?

Answer:  RAS (Remote Aircraft Status) will require an LTE subscription and a GDL 60 installation that specifically includes the components and configuration necessary for RAS to be a capability.


How can I check to see if LTE is strong enough in my hangar/airplane?

Answer:  An LTE coverage map can be found HERE.  Coverage on the map may be affected by terrain as well as structural limitations.  A reduced signal can be expected inside a hangar.  -120dBm or better is needed for RAS.


Which Terrain is compatible with the automatic updates with the GDL 60?

Answer:  4.9 arc/second Terrain will need to be selected for compatibility with the GDL 60.  This includes 4.9 arc/second for the GTN Xi, GI 275, and G500/600 TXi.  In addition to Terrain, device software may need to be updated to be compatible.  Software compatible with the GDL 60 in GTN Xi installations is as follows: GTN Xi 20.30, TXi 3.50, GI 275 2.60
