Supported Yamaha Features on a Garmin® Chartplotter

Yamaha offers a number of products that provide compatible Garmin chartplotters or Garmin MFDs connected to a Yamaha system with varying levels of Yamaha functionality. The functionality provided is dependent on the type of connections made with the Yamaha system, as well as the type of Yamaha and Garmin equipment present in the installation.


For an overview of the various installation types (including Yamaha & Garmin part numbers) expand the desired drop down below for more information.


NOTE:
Yamaha Engine Data and Yamaha Data sources coming in to a Garmin MFD via J1939 are not bridged over and out via NMEA 2000 to other Garmin MFDs or Garmin Chartplotters.
Each Garmin MFD must be connected to the Yamaha Engine Bus Multi Hub.
The TD 50 touchscreen display does not support the Yamaha UI Engine page


The following 4 drop downs are sorted based upon which integration provides the most engine and vessel data as well as control over Yamaha-specific features and settings:

Full Yamaha® Support - J1939 Integration with MFD Interface

A full integration via a Yamaha MFD Interface (MFDI) black box that provides the following:

  • Engine data (Speed, Oil Pressure, etc.)

  • Yamaha-specific User Interface

  • Autopilot Controls (e.g. Heading Hold, Pattern Steer, etc.)

  • Engine and Peripherals Control (Steering Friction, Trim, etc.)

  • Technician Settings

  • Send Waypoint data over J1939 to a Garmin MFD

Yamaha MFDI to Multi HUB and GPSMAP


The Yamaha MFDI installation centers on the Yamaha Multi Hub, with a set of cables that link the Engine port of MFDI to the Multi Hub, while another set of cables links the Hub to the J1939 port of Garmin MFD.

Cable

Description

Part Number

A

Yamaha® Engine Bus to J1939 Adapter Cable

010-12770-00 (Garmin)



B

1 ft. Pigtail Bus Wire

2 ft. Pigtail Bus Wire

3 ft. Pigtail Bus Wire

6 ft. Pigtail Bus Wire

9 ft. Pigtail Bus Wire

12 ft. Pigtail Bus Wire

6Y8-82521-01-00

6Y8-82521-11-00

6Y8-82521-21-00

6Y8-82521-31-00

6Y8-82521-41-00

6Y8-82521-51-00

(Yamaha)

C

Conversion Harness

6YM-83553-10 (Yamaha)



  • For installations requiring engine data input via NMEA 2000, the use of a Yamaha 6YG adapter cable is required

    • IMPORTANT: If a Yamaha CL7 is on the vessel, this MFD also features NMEA 2000 and will serve as a NMEA 2000 Gateway to Garmin chartplotters, in which case a Yamaha 6YG Gateway is not to be used

      WARNING: Do not use a 6YG & CL7 on the same network with a Garmin chartplotter (the system can only support one gateway)


NOTE: Not all Garmin chartplotters will have all the display options. Consult the Owner's Manual  see: Finding the Owner's Manual for a Garmin Device for more information on setting up and configuring the gauges.


Advanced Yamaha® Support with J1939 Integration

The Yamaha Engine Bus to J1939 Cable solution uses a Garmin manufactured cable (see table below for part numbers) fitted with a Yamaha pigtail connection that runs to a Yamaha Multi Hub engine bus. This installation provides the following:

  • Engine data (Speed, Oil Pressure, etc.)

  • Yamaha-specific User Interface

  • Send Waypoint data over J1939 to a Garmin MFD

For a more detailed list of data, refer to the final two drop down sections.

Yamaha J1939 Only Install


Using only a Yamaha Engine Bus to J1939 only is similar to the MFDI installation, but it does not include the MFDI and it only utilizes a single set of cables.

Cable

Description

Part Number

A

Yamaha® Engine Bus to J1939 Adapter Cable

010-12770-00 (Garmin)



B

1 ft. Pigtail Bus Wire

2 ft. Pigtail Bus Wire

3 ft. Pigtail Bus Wire

6 ft. Pigtail Bus Wire

9 ft. Pigtail Bus Wire

12 ft. Pigtail Bus Wire
(Choose 1 of desired length)

6Y8-82521-01-00

6Y8-82521-11-00

6Y8-82521-21-00

6Y8-82521-31-00

6Y8-82521-41-00

6Y8-82521-51-00

(Yamaha)


Base Yamaha® Support - NMEA 2000 Integration Only

The Yamaha 6YG Engine Bus to NMEA 2000 solution is ideal for chartplotters not equipped with J1939. This installation uses a Yamaha gateway to convert Yamaha information that would normally run to the J1939 port to NMEA 2000 which can then be provided to the Garmin system via NMEA 2000. This installation provides:

  • Engine data (Speed, Oil Pressure, etc.)

  • Yamaha-specific User Interface


Yamaha 6YG N2K Gateway


Cable

Description

Part Number

A

1 ft. Pigtail Bus Wire

2 ft. Pigtail Bus Wire

3 ft. Pigtail Bus Wire

6 ft. Pigtail Bus Wire

9 ft. Pigtail Bus Wire

12 ft. Pigtail Bus Wire
(Choose 1 of desired length)

6Y8-82521-01-00

6Y8-82521-11-00

6Y8-82521-21-00

6Y8-82521-31-00

6Y8-82521-41-00

6Y8-82521-51-00

(Yamaha)

B

NMEA Harness for 6YG Gateway

6Y8-82521-00
(Yamaha)

C

NMEA 2000 Drop Cable 6ft
NMEA 2000 Drop Cable 13ft
NMEA 2000 Drop Cable 19ft
(Choose 1 of desired length)

010-11076-00
010-11076-04
010-11076-01
(Garmin)


NMEA 2000 Direct to Yamaha Engine(s)

While some Yamaha engines may be able to integrate directly via NMEA 2000 without the use of a gateway, the installation itself is not something Garmin Product Support can assist with.  It is possible that data displayed may be correct, provided the NMEA 2000 PGNs are supported by any networked chartplotters. For more information on supported NMEA 2000 PGNs, consult the Owner's Manual for the chartplotter.  For information on how to accomplish this sort of install, consult with a Yamaha dealer.


Examples of the Yamaha UI and Garmin Engine Page as well as compatible Garmin Chartplotters


Below is an example of the Yamaha & Engine Screens & Menu Options as displayed on a Garmin MFD:

AV Gauges / Controls page with Yamaha IconYamaha page
GPSMAP Vessel MenuYamaha Engine Page GPSMAP

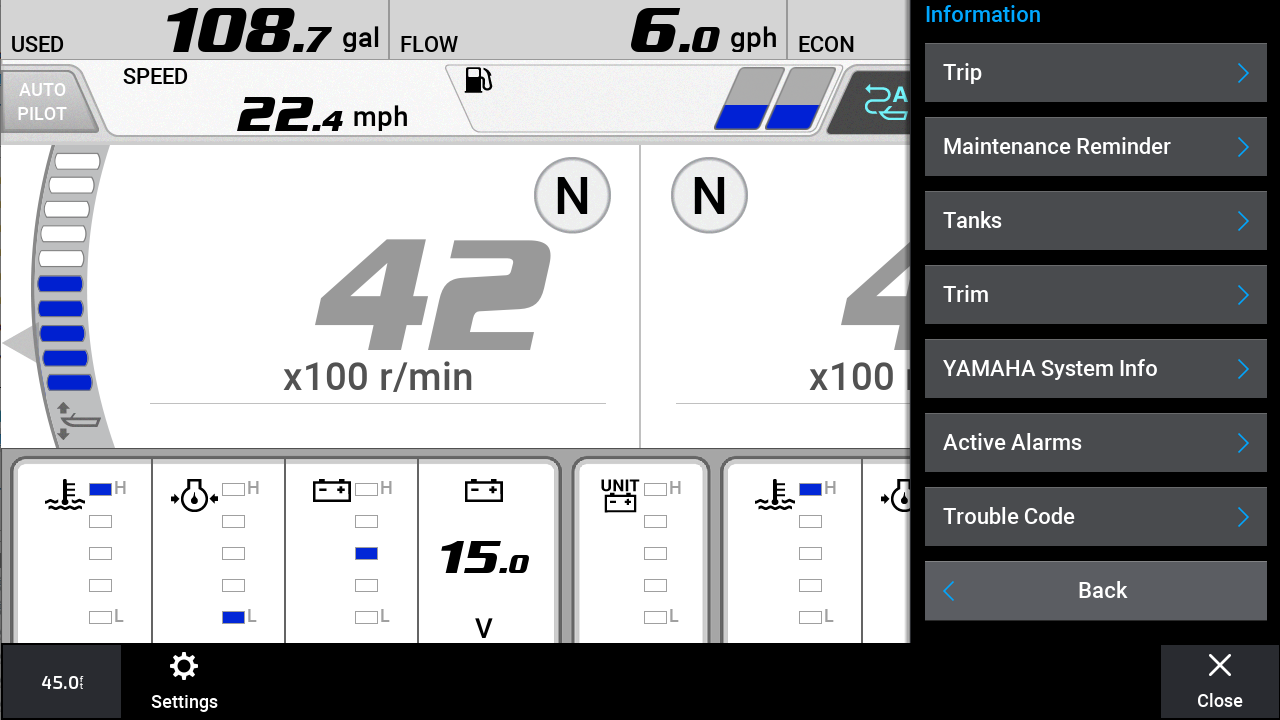

Yamaha Menu Page Yamaha Information Menu
Yamaha Menu GPSMAPYamaha Information menu GPSMAP

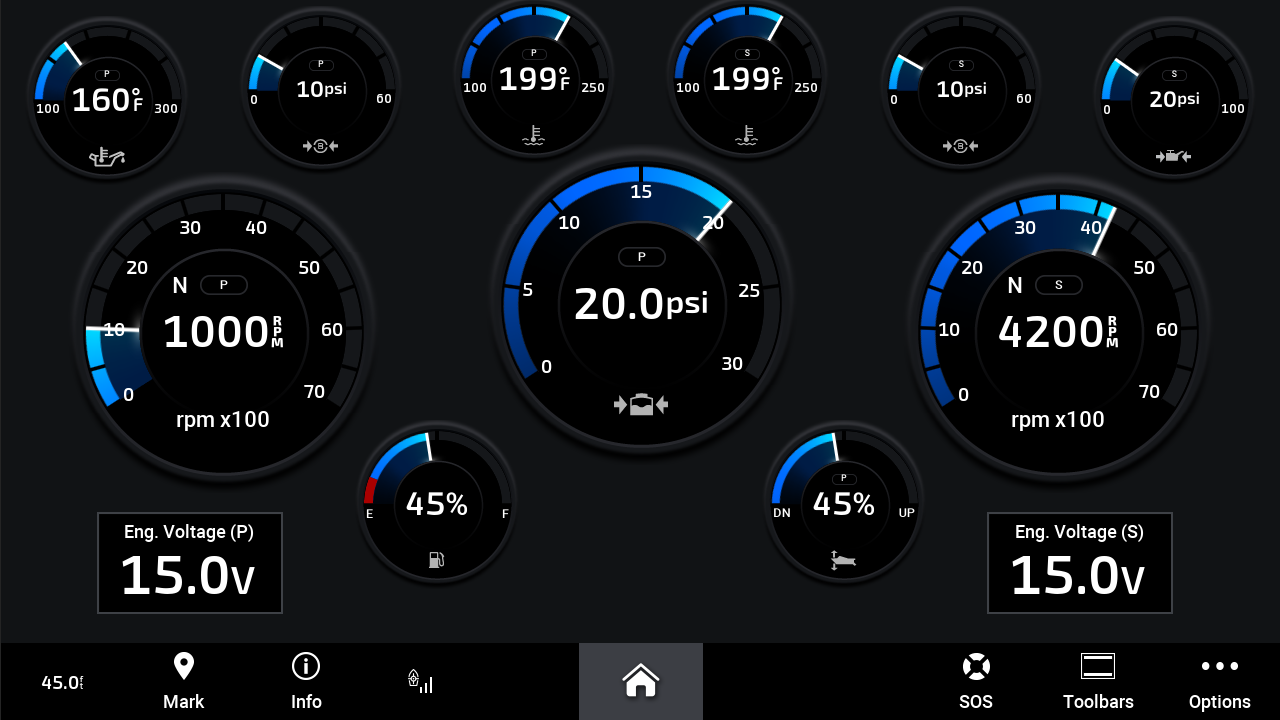

Garmin Engine PageGarmin Engine Page Menu
Garmin Engine GPSMAP PageGarmin Engine Menu GPSMAP



Compatible Garmin Chartplotters


Garmin chartplotters listed below support either a J1939 or NMEA 2000 connection. For additional information not covered in this FAQ, refer to the Owner's Manual of the device.

Compatible Chartplotters (J1939 Integration or NMEA 2000)

  • GPSMAP®7x2 Plus
  • GPSMAP®9x2 Plus
  • GPSMAP®12x2 Plus
  • GPSMAP®12x2 Touch
  • GPSMAP®10x2
  • GPSMAP®12x2
  • GPSMAP®7x3
  • GPSMAP®9x3
  • GPSMAP®12x3
  • GPSMAP®16x3
  • GPSMAP®84xx/86xx
  • GPSMAP®90xx/92xx
  • GPSMAP®8700 Black Box
  • GPSMAP®9500 Black Box

Compatible Chartplotters (NMEA 2000 Only, No J1939 Support)

  • GPSMAP®10x2
  • ECHOMAP™ Plus 64cv
  • ECHOMAP™ Plus 7" & 9" models
  • ECHOMAP™ UHD 7" & 9" models
  • ECHOMAP™ UHD2 6" & 7" & 9" models
  • ECHOMAP™ Ultra 10X/12X models
  • ECHOMAP™ Ultra 2 10X/12X models

NOTE:
• The Yamaha UI specific engine data page is not available on all ECHOMAP models (refer to the Owner's Manual for compatibility) and is not available on the TD 50 Touchscreen Display. In such cases the Garmin Engine data page must be used.
• Legacy & Discontinued GPSMAP & ECHOMAP units (not listed above) may feature J1939 or NMEA 2000 connections. Integration with Legacy & Discontinued units will provide engine data and may even feature a Yamaha UI. Software updates are discontinued for Legacy & Discontinued Garmin products.


For more information on the type of engine and vessel data that may be displayed, expand the appropriate drop down below.

Engine and Vessel Data that may be displayed on a Garmin Chartplotter via J1939

Data in the table below is for reference. Some features may only be displayed if Yamaha optional equipment is installed, capable by all hardware (both Yamaha & Garmin), and properly configured by Yamaha or a Yamaha Dealer. If data and or features are missing, ensure that the Garmin chartplotter is up to date in software (see related content below).


J1939 Engine & Vessel data may include but not be limited to:

Engine & Fuel DataReceive Vessel Data from EngineReceive Trip Data from EngineControl Yamaha Troll ModeConfigure Engine Bus Settings
Engine SpeedFluid InstanceRudderTrip ResetTroll Mode On/OffBuzzer Off
Engine Tilt/TrimFluid Level (Fuel)Speed Water ReferencedTrip Run TimeTroll Speed LimitsBacklight
Engine Boost PressureFluid Level (Fresh Water)Water Depth TransducerTrip DistanceTroll Change RPMDay/Night/Auto
Engine InstanceFluid Level (Waste Water)Depth OffsetTotal Fuel ConsumptionOff Timer SettingHelmMaster Point Control
Engine Oil PressureFluid Level (Generator)Water Temp


Engine Oil TempCatalystTemperature Instance


Engine Coolant TempDiagnosis CodeTemperature


Alternator PotentialEngine Warmup StateVessel Heading


Fuel RateEngine Sync StateHeading Sensor Reading


Total Engine HoursSub Battery VoltageTransmission Current Gear


Engine Coolant PressureTotal Fuel Flow



Fuel PressureFuel Economy



Check EngineTotal Fuel Level



Over TemperatureTotal Estimated Fuel Remaining



Low Oil LevelRKE Status



Low Oil PressureTank Capacity



Low Fuel PressureFuel Flow Offset



Low System VoltageDiagnosis EVC



Low Coolant LevelTrim Offset



Water in FuelHelmMaster Setup



Rev Limit Exceeded




Throttle Position Sensor




Transmission Instance




Transmission Oil Pressure




Transmission Oil Temperature





NOTE: The table in the NMEA 2000 drop down section below includes data that will also be present in the table above if the Yamaha system is equipped with the hardware necessary to provide the data.


Engine and Vessel Data that may be displayed on a Garmin Chartplotter via NMEA 2000

Data in the table below is for reference. Some features may only be displayed if Yamaha optional equipment is installed, capable by all hardware (both Yamaha & Garmin), and properly configured by Yamaha or a Yamaha Dealer. If data and or features are missing, ensure that the Garmin Chartplotter is up to date in software (see related content below).


Engine & Fuel DataReceive Vessel Data from Engine
Boost PressureFluid InstanceRudder
Coolant PressureFluid Level (Fuel)Speed Water Referenced
Coolant LevelFluid Level (Fresh Water)Water Depth Transducer
Coolant TemperatureFluid Level (Waste Water)Depth Offset
Exhaust TemperatureFluid Level (Generator)Water Temp
Engine Oil TempSub Battery VoltageTemperature Instance
Engine Coolant TempTotal Fuel FlowTemperature
Exhaust Manifold Temp LeftFuel Pressure
Exhaust Manifold Temp RightFuel Flow Rate
Oil PressureFuel Temperature
Oil TempTotal Fuel Onboard
Oil Level

Oil Filter Diff Pres

Load Percent

RPM

Percent Torque

Trim

Transmission Oil Temperature

Transmission Oil Pressure

Voltage

Jack Plate

Manifold Air Temp

AC Current

AC Voltage

DC Current

DC Voltage


NOTE: Updates to software on Garmin marine devices are exclusively to update Garmin devices only. Yamaha displays and devices are not updated by Garmin software updates. To update Yamaha equipment, contact a Yamaha Dealer.
