Creating, Editing, or Deleting a Trip on a zūmo 395 or zūmo 595 Using Trip Planner

Creating a multiple-point trip allows navigation among several points. Trips can be saved to the device's internal storage for use at a later date by using Trip Planner. The device will save up to 100 trips.


Create a Trip

1. Touch Apps

PND zumo 595 - Trip Planner - select apps

2. Touch Trip Planner

 PND zumo 595 - Trip Planner - select TP

3. Touch the PND settings wrench v2 wrench icon

PND DA 50 - Trip Planner - create new

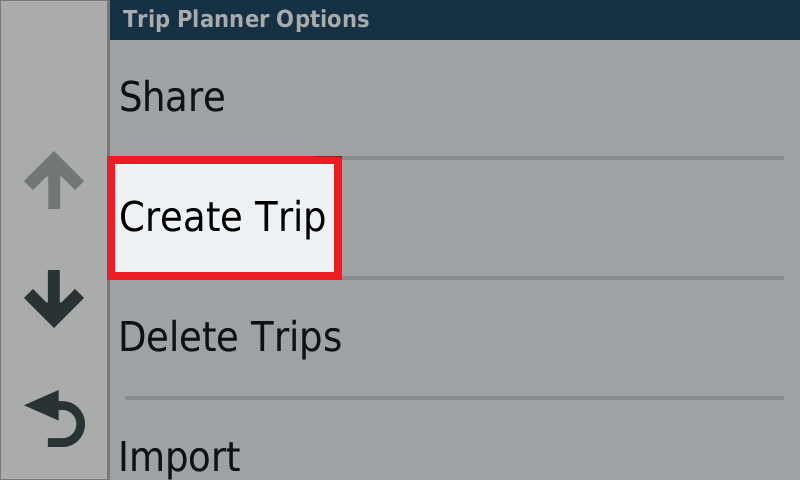

4. Touch Create Trip

PND zumo 595 - Trip Planner - create trip

5. Touch Select Start Location

Note: The Start Location is the first stop on the route.

PND DA 50 - Trip Planner - select start 1

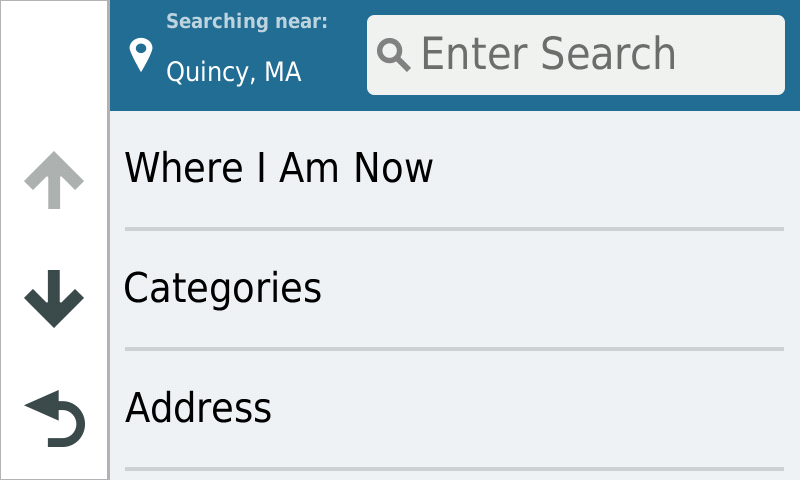

6. Locate the starting point using the search options

PND zumo 595 - Trip Planner - search for locations

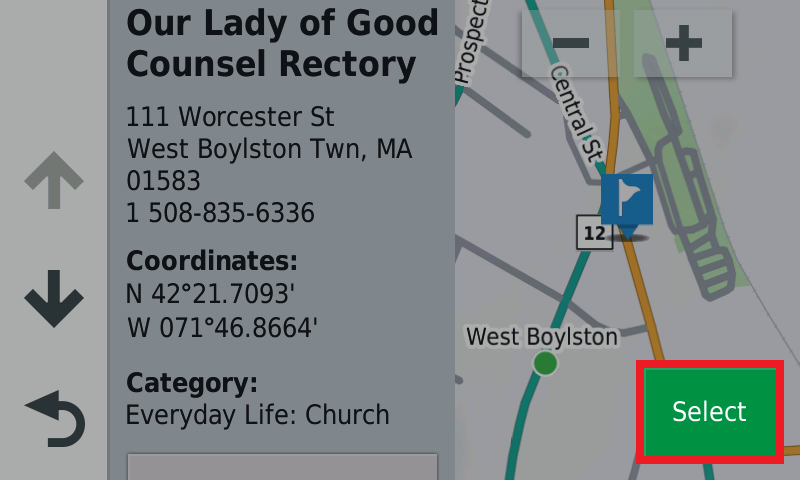

7. Touch Select

PND zumo 595 - Trip Planner - select location

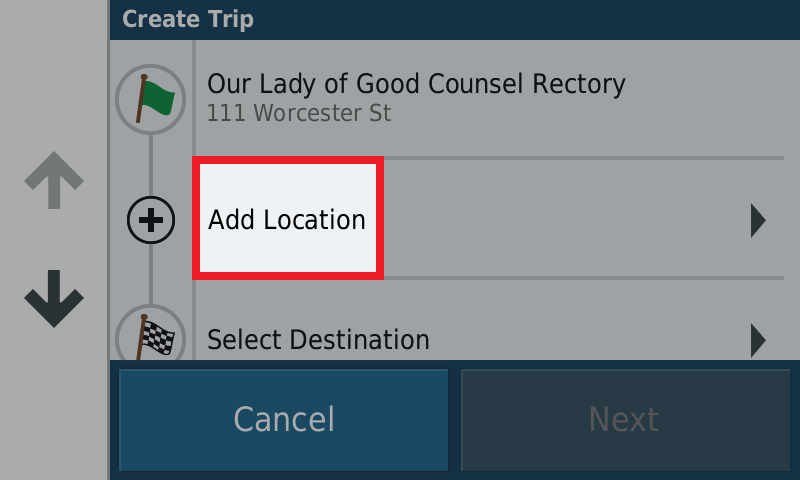

8. Touch Add Location to add a second point

PND zumo 595 - Trip Planner - add location

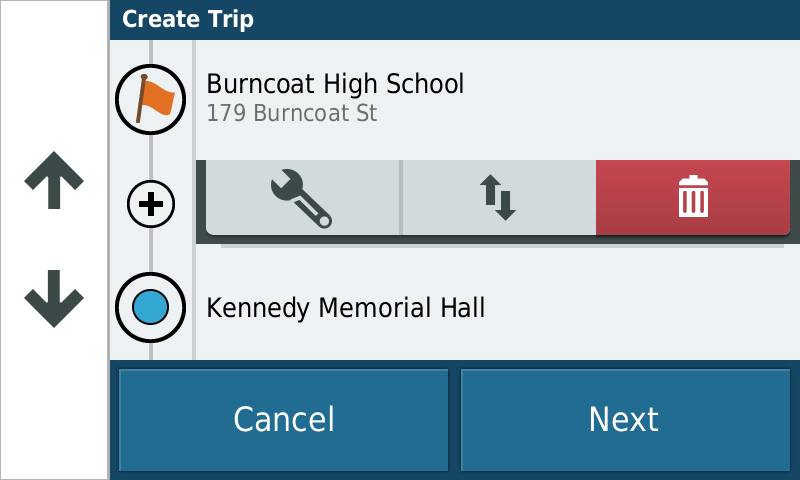

9. Follow steps 6 through 8 to locate and add up to 30 total points. Touch a point to show additional options

PND zumo 595 - Trip Planner - location options


Additional Options

  • Touch the PND - Trip Planner - add stop icon add icon to add a stop between locations.
  • Touch the PND settings wrench v2 wrench icon to change a location.
  • Touch RV 785 - Trip Planner move icon to change the order of points.
    • Touch and hold the PND - drag icon transparent move icon next to a point and drag it to a location on the list.

PND zumo 595 - Trip Planner - change order

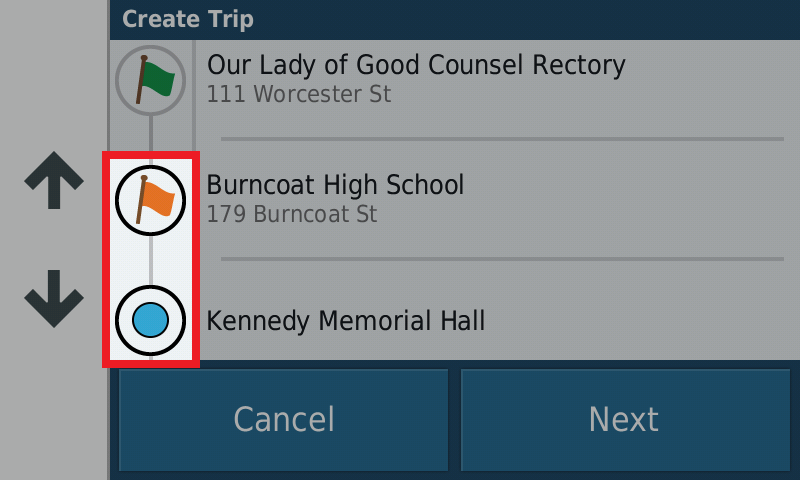

  • Touch the PND - Trip Planner waypoint icon orange flag icon to convert a waypoint into a shaping point.
    • This builds a route passing through that point without navigating to it.
    • The icon will change to a  PND - Trip Planner shaping point blue shaping point icon and the route will recalculate.

PND zumo 595 - Trip Planner - shaping point

  • Touch the VIRB trash transparent cropped delete icon to remove a point.
    • Then touch Yes.

PND DA 50 - Trip Planner - delete point

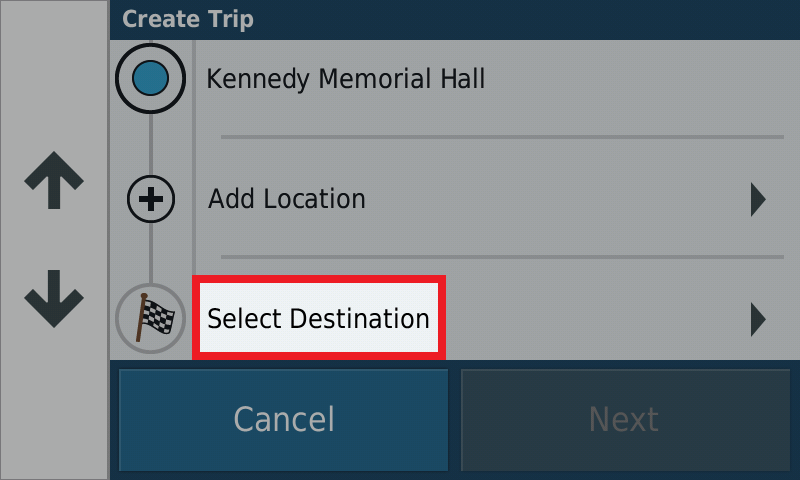

10. Touch Select Destination and follow steps 6 and 7 to select a final destination

PND zumo 595 - Trip Planner - select destination

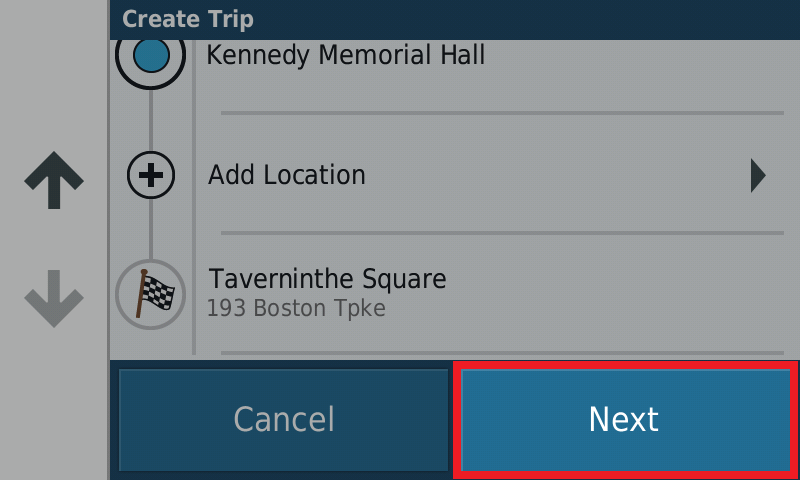

11. Touch Next. The route will now calculate

 PND zumo 595 - Trip Planner - calculate route

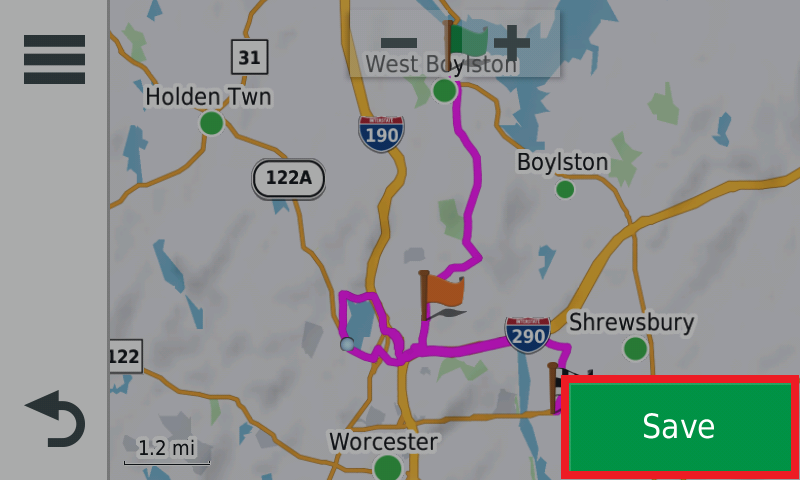

12. Touch Save

PND zumo 595 - Trip Planner - save route

13. Type the desired name for the route and touch Done

The trip will now be saved to your device.


Edit a Trip

1. Touch Apps

PND zumo 595 - Trip Planner - select apps

2. Touch Trip Planner

PND zumo 595 - Trip Planner - select TP

3. Touch the name of the trip

PND zumo 595 - Trip Planner - select trip

4. To edit the locations, touch a location, and choose an option. Click on Editing Options below to see the options available.

PND zumo 595 - Trip Planner - location options


Editing Options

  • Touch the PND - Trip Planner - add stop icon add icon to add a stop between locations.
  • Touch the PND settings wrench v2 wrench icon to change a location.
  • Touch RV 785 - Trip Planner move icon to change the order of points.
    • Touch and hold the PND - drag icon transparent move icon next to a point and drag it to a location on the list.

PND zumo 595 - Trip Planner - change order

  • Touch the PND - Trip Planner waypoint icon orange flag icon to convert a waypoint into a shaping point.
    • This builds a route passing through that point without navigating to it.
    • The icon will change to a  PND - Trip Planner shaping point blue shaping point icon and the route will recalculate.

PND zumo 595 - Trip Planner - shaping point

  • Touch the VIRB trash transparent cropped delete icon to remove a point.
    • Then touch Yes.

PND DA 50 - Trip Planner - delete point

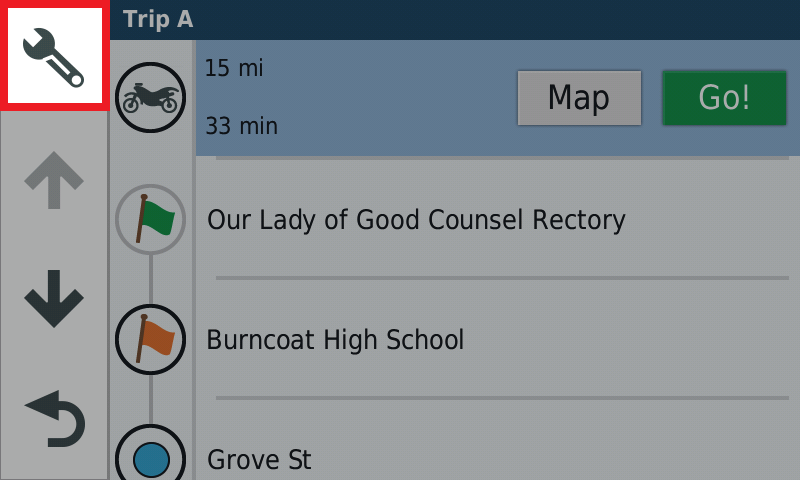

5. Touch the PND settings wrench v2 wrench icon for more editing options

PND zumo 595 - Trip Planner - edit trip options

Select from the following options:

  • Share: Transfer the trip to another zūmo device.

    • Routes can be shared over Bluetooth or saved to an SD card.

  • Route Preference: Sets the preferred way to route the trip.

  • Shape Route

  • Optimize Order: Calculate the most efficient order to travel to all the points.

    • The start and end points will not be changed.

    • The route must have at least four points total.

  • View Turns: Lists turn-by-turn written directions.

  • Delete Trip: Removes the trip from Trip Planner.

  • Rename Trip: Changes the name of the trip.

  • Edit Schedule: Changes the departure and arrival times.

The trip will now be changed. When the trip has been edited to your satisfaction, touch Go! to proceed with navigation.


Delete a Trip

1. Touch Apps

PND zumo 595 - Trip Planner - select apps

2. Touch Trip Planner

PND zumo 595 - Trip Planner - select TP

3. Touch thePND settings wrench v2 wrench icon

PND DA 50 - Trip Planner - edit trip

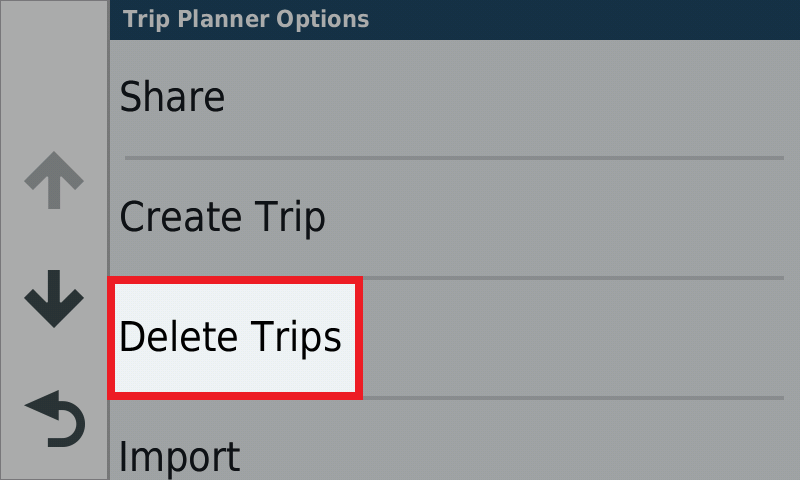

4. Touch Delete Trips

PND zumo 595 - Trip Planner - delete trips

5. Touch the trip(s) to delete to place a  PND check iconcheckmark next to them, then touch Delete

 PND DA 50 - Trip Planner - select trips to delete

6. Touch Yes

PND DA 50 - Trip Planner - confirm delete trip

The trip(s) will now be deleted.


To Navigate a Trip Using Trip Planner

1. Touch Apps

PND zumo 595 - Trip Planner - select apps

2. Touch Trip Planner

PND zumo 595 - Trip Planner - select TP

3. Select the Trip

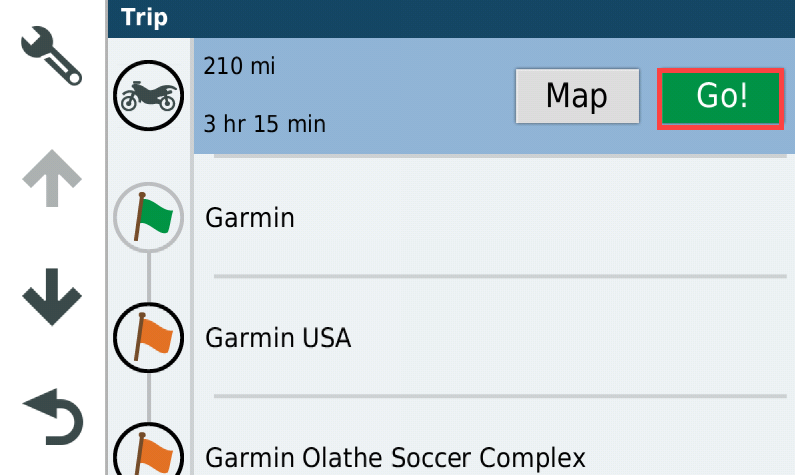

4. Touch Go!

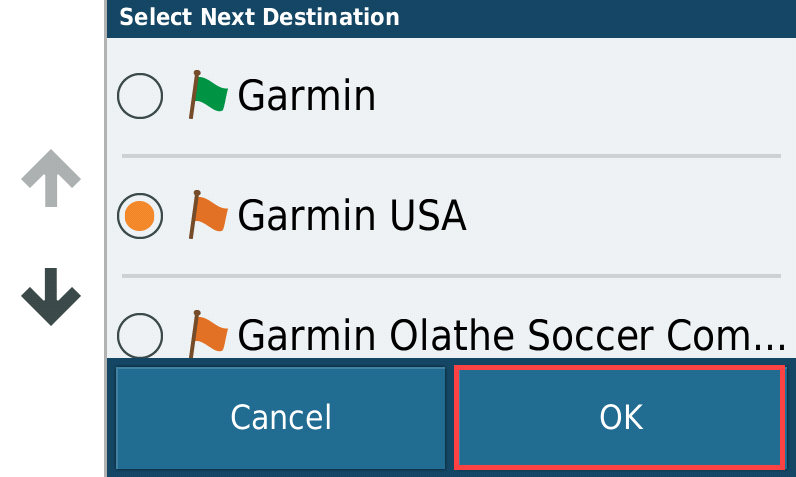

5. Select the Next Destination of the Route

  • Select the Green Flag to route from your current location to the beginning of the route, and then the full trip.

  • Select the Orange Flag to skip the starting location and route from your current location to the waypoint selected in the route, and then the remaining trip destinations in order.

  • Select the Checkered Flag to route from your current location skipping all the points in the route and taking you the quickest way to the destination point.



6. Touch OK

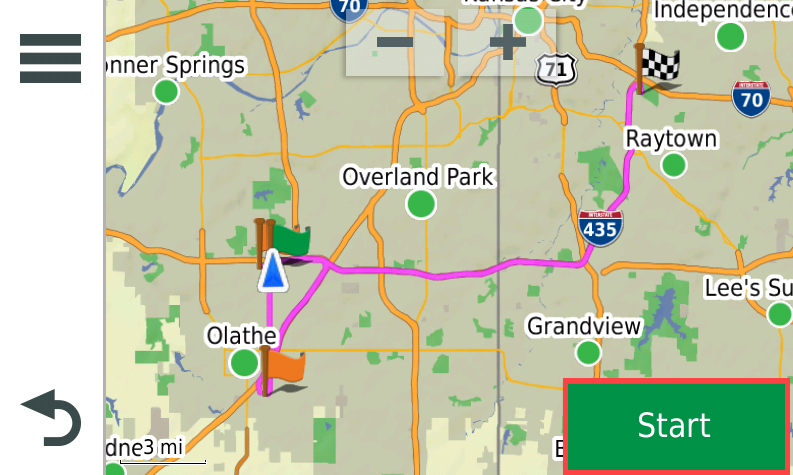

7. Touch Start
