Viewing More Map Data Fields on a BMW Motorrad Navigator IV, zumo 660 and zumo 665

Some automotive devices have a map setting which allows you to view more data fields (speed, direction, time, elevation) when you are on the navigation screen. By default, there are only two data fields at the bottom of the screen, at least one of which is customizable.

If the More Data map setting is enabled, there will be four data fields which are customizable.

Follow These Steps to Enable This Setting on Your Device:

1. Touch Tools

2. Touch Settings

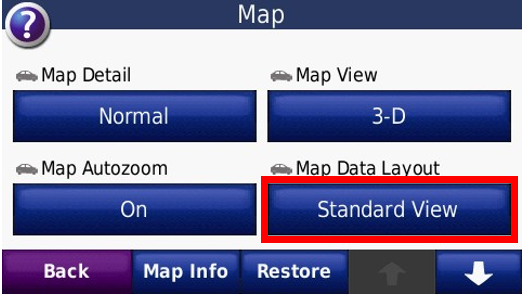

3. Touch Map

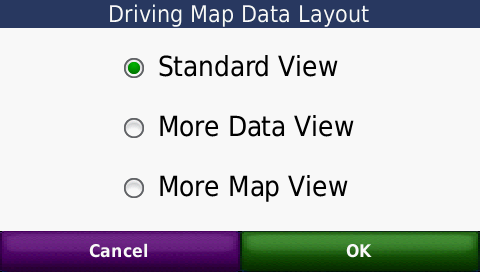

4. Change the setting under Map Data Layout to More Data View or More Map View

• • The More Map View option makes the data fields semi-transparent and moves them to the four corners of the screen

5. Touch OK to save the change

The device will now display more data fields on the navigation screen. Most of these data fields will be customizable.
