Understanding Future Elevation Plot on My Fitness Watch

Some watches have the ability to provide a future elevation plot which shows the upcoming elevation changes for the terrain you are navigating. To get a future elevation plot, the watch needs elevation data for where you will be going, either from a course or a saved GPS activity. It is recommended to use a course to get the most accurate elevation data.

NOTE: Elevation Plot is only available on outdoor activities that support navigation and courses.

Compatible Watches:

• Forerunner® 255 | Forerunner® 255S | Forerunner® 255 Music | Forerunner® 255S Music

• Forerunner® 265 | Forerunner® 265 Music

• Forerunner® 570

• Forerunner® 955 | Forerunner® 955 Solar

• Forerunner® 965

• Forerunner® 970

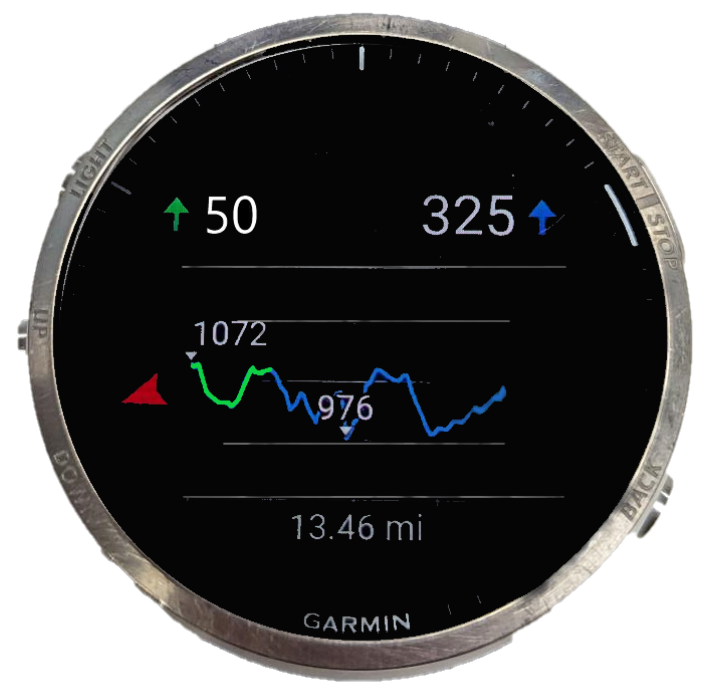

Information Available on the Elevation Plot Data Screen

• Total Distance

  • Example: 13.46 mi (image below)

• Graph of Elevation Changes

  • Example: The green and blue data graph (image below)

• Ascent Remaining

  • Example: The blue portion of the graph and the 325 listed (image below)

• Total Elevation Gain Taken

  • Example: The green portion of the graph and the 50 listed (image below)

How To Access Elevation Plot:

NOTE: Steps may vary between models. For details on your specific model refer to the owner's manual.

1. Press the START Key.

2. Select an Activity.

3. Hold .

4. Select one of the following:

   • Select Training > Garmin Segments > Select the Segment.

   • Select Navigation > Courses > Select Start > Select Do Course.

5. Select Elevation Plot.
