Managing Xero A1i PRO Arrow Profiles
Arrow Profiles allow for quick and easy access to a variety of setups for the use of different arrows, based on the arrow's weight and length, different arrow heads, based on weight or type: Field Tip, Mechanical Broadhead, or Fixed Broadhead, and even things such as a change in Altitude. All of these factors should be considered as variables that can affect arrow performance when it comes to an Arrow Profile. As such, any changes or variances to these factors would be reason enough to create a new Arrow Profile.
NOTE: Mechanical Broadheads and Fixed Broadheads will produce more drag on an arrow during flight than Field Tips and will show greater ballistic variance as distances increase.

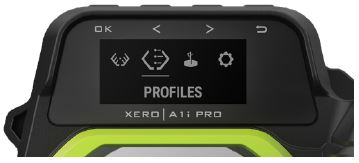

The image below shows the icon for Arrow Profiles in the Xero® A1i PRO bow sight's menu.
Adding Arrow Profiles
- Select
from the Main Menu.
- Select Add Arrow Profile.
- Select an option:
- New to create a new arrow profile.
- Copy to copy an existing arrow profile.
- Enter a name for the arrow profile being created.
- Select
to confirm the name.
- If needed, select Yes to start the calibration process for the arrow profile.
Managing Arrow Profiles
- Select
from the Main Menu.
- Select an existing profile.
- select an option:
- Activate to activate the profile.
- Calibrated Ranges to adjust the calibrated ranges for the profile.
- Fixed Pins to adjust the fixed pins for the profile.
- Arrow Tip to change the type of arrow tip for the profile.
- Arrow Diameter to change the arrow diameter for the profile.
- Validate Pin Stack or Validated Pin Stack to validate or re-validate the pin stack for the profile.
- Edit Name to edit the name of the profile.
- Reset Profile to reset all calibration data for the current profile.
- Delete to remove the profile.
NOTE: The maximum number of Arrow Profiles that can be set on a Xero A1i PRO sight is 10.
