Customizing the Trip Data Fields on the Map Screen for a dezl 780 and dezlCam 785

Your automotive device allows you to customize the data field on the navigation screen.

To Change the Trip Data Field:

1. Touch View Map

2. Touch the data field that does NOT display Speed

3. Touch "+" next to the desired option to save the change

This selected data will now be displayed in the data field while driving. To change the field at any time, repeat the above steps.

 It is possible to add 3 additional data fields on the map by enabling the Trip Data map tool on the device.

To Enable Trip Data:

1. Touch the Settings wheel

2. Touch Navigation

3. Touch Map & Vehicle

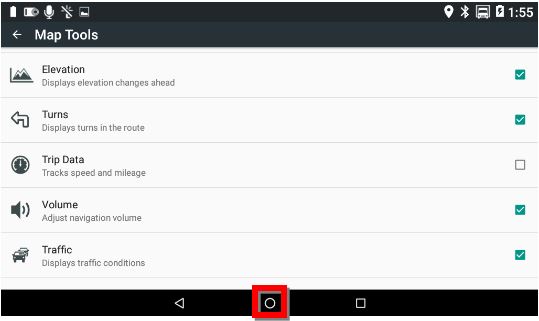

4. Scroll down and touch Map Tools

5. Touch the box next to Trip Data to enable it

• • Trip Data is already enabled if a checkmark is in the box

7. Touch the circle on the bottom of the screen to return to the main menu screen

8. Touch View Map

9. Touch the wrench in the lower right corner

10. Touch Trip Data

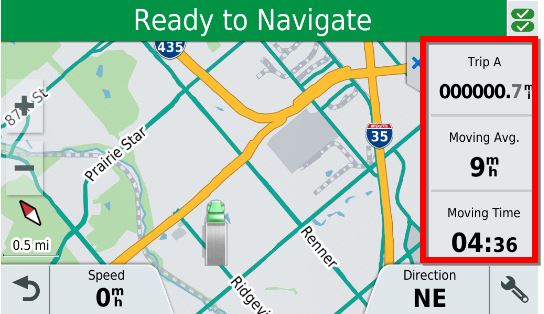

Three additional data fields will appear on the right side of the screen. You can customize these by touching any one of them, and touching the + icon next to the desired data type.

Your Device Offers the Following Customizable Data Field Options:

• Arrival Time
• Arrive In
• Destination Distance
• Via Point Arrival Time
• Time to Via Point
• Via Point Distance
• Distance to Turn
• Time to Turn
• Next Mile Marker (not available on all highways)
• Direction
• Speed
• Max Speed
• Moving Average
• Overall Average
• Stopped
• Moving Time
• Total Time
• Sunrise / Sunset Time
• Time of Day
• Elevation
• Location
• GPS Accuracy

Some of these additional data fields will only be available when the device is on an active route.
