Navigating to a waypoint on the Geko 201 and 301

Basic navigation with your Geko™ 201 or Geko™ 301 outdoor handheld requires only three steps: Mark, Move, and Return. Mark your location as a waypoint, move a distance away, and then return after choosing one of several methods to help you find your way.

Mark a Waypoint

1. 1. Press in and hold the OK button for two seconds to display the Mark Waypoint page.
      NOTE: Your current location is marked as a waypoint and automatically assigned a three digit number.
   2. Press the OK button to save the waypoint.


Viewing the Map Page while Moving

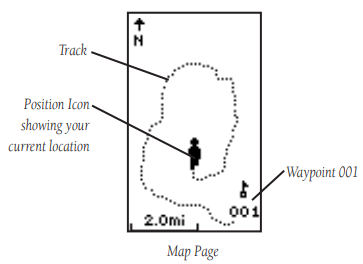

1. Use the PAGE button to access the Map Page and view the new waypoint.
2. Press the DOWN button to zoom in for a more detailed view of the map.
3. Walk or drive around for a few minutes, make a right or left turn, then continue for a few more minutes and then stop.
   NOTE: The 'Position Icon' shows your location and the dotted line shows your path of travel, called a Track.


Return to a waypoint Using Goto

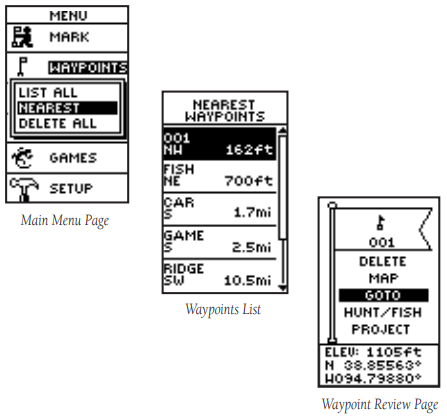

1. 1. Press the PAGE button a few times until the Menu Page displays.
   2. Use the UP or DOWN button to highlight 'Waypoints' and then press the OK button.
   3. Use the UP or DOWN button to highlight 'Nearest' and then press the OK button.
   4. Use the DOWN button to highlight the waypoint and then press the OK button to display the Waypoint Review Page.
   5. With the on-screen 'GOTO' button highlighted, press the OK button to activate the Goto navigation feature.
      NOTE: The Navigation Page automatically displays, and the remaining distance to your destination is shown at the top of the page.
