Creating, Editing, or Deleting a Trip on an Automotive Device Using Trip Planner

Creating a multiple-point trip allows navigation among several points, including shaping points. Trips can be saved to the device's internal storage for use at a later date by using Trip Planner. The device will store up to 100 trips.

Click below for steps to create, edit, and delete trips from Trip Planner.

Create a Trip

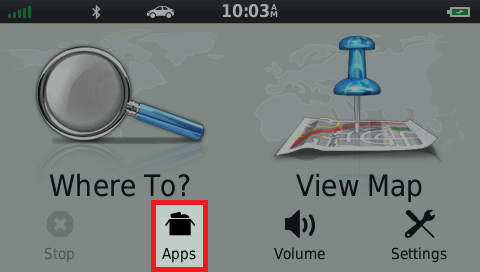

1. Touch Apps

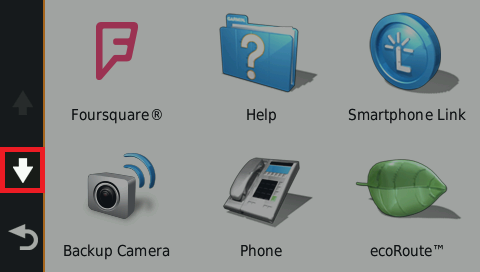

2. Touch Trip Planner. Touch the down arrow to scroll if Trip Planner is not visible.

3. Touch New Trip

4. Touch Select Start Location

NOTE: The Start Location is the first stop on the route. You can use your current location as the starting location, but it isn't necessary. The device will skip your current location if that is where you are when it begins to navigate.

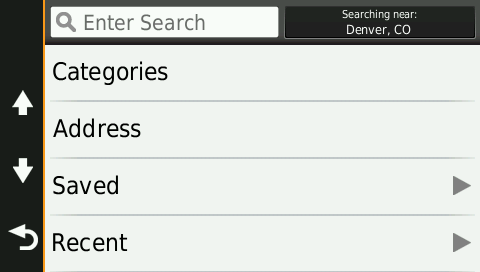

5. Locate the desired starting point using the search options

6. Touch Select

7. Touch the Plus to add a second point

8. Follow steps 5 through 7 to locate and add up to 30 total points

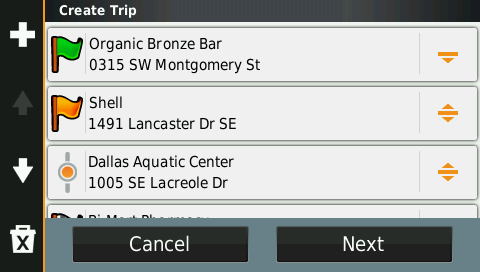

To change a waypoint into a shaping point, touch the orange flag icon, then touch Yes
- See Skip Shaping Points on Automotive Devices for more information about shaping points
To adjust the order of points as you add them, touch and hold the move icon next to the point you'd like to move, then drag it to the desired location on the list
To remove points, touch the trash icon and the point you would like to remove, then touch Delete

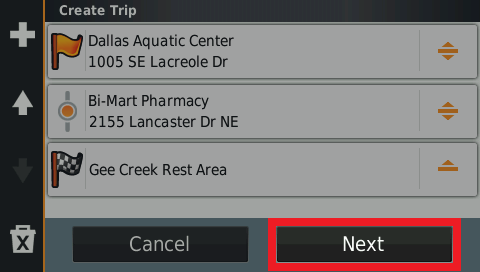

9. Touch Next when all points have been added

10. Touch Save

11. Type a name for the route and touch Done

The route is saved to the Trip Planner automatically.

Edit a Trip

1. Touch Apps

2. Touch Trip Planner

3. Touch the name of the route you would like to edit

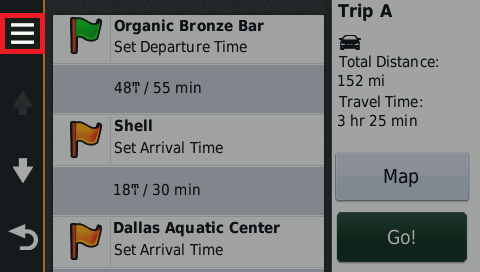

4. Touch the menu button

Select from the following options:

Edit Destinations: Add or remove points from the route

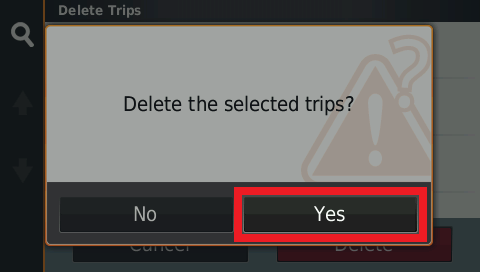

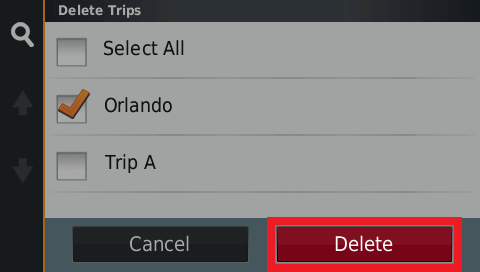

Delete Trip: Removes the trip from Trip Planner
Rename Trip: Customize the name of the trip
Optimize Order: Have the device calculate the most efficient way to travel to the points
- You must have at least four waypoints to optimize the order
- The start point and end point will not be changed
Route Preference: Sets the preferred way to route the trip
- See How the Routing Preferences Work on an Automotive Device for more information

Touch Go! to proceed with navigation.

NOTE: To reverse the order of the trip, the order of points would need to be rearranged manually. This would replace the trip originally entered and would not create a new trip.
