Choosing an Alternate Route on an Automotive Device

Automotive devices calculate a recommended route based on the navigation settings, the mapping installed (and vehicle profile on dēzl™ devices).

In some cases you may want to take a different route and save it.

  • You can select an alternate route or use shaping points.
    • Shaping points are waypoints added to a route to direct the device to use specific roads when navigating without adding a location to stop at.
  • You can save and further edit an Active Route the device is currently on in Route Planner.

See the steps to select, edit, and save routes in the dropdowns below:

(Examples shown below are on a Garmin dezl device)

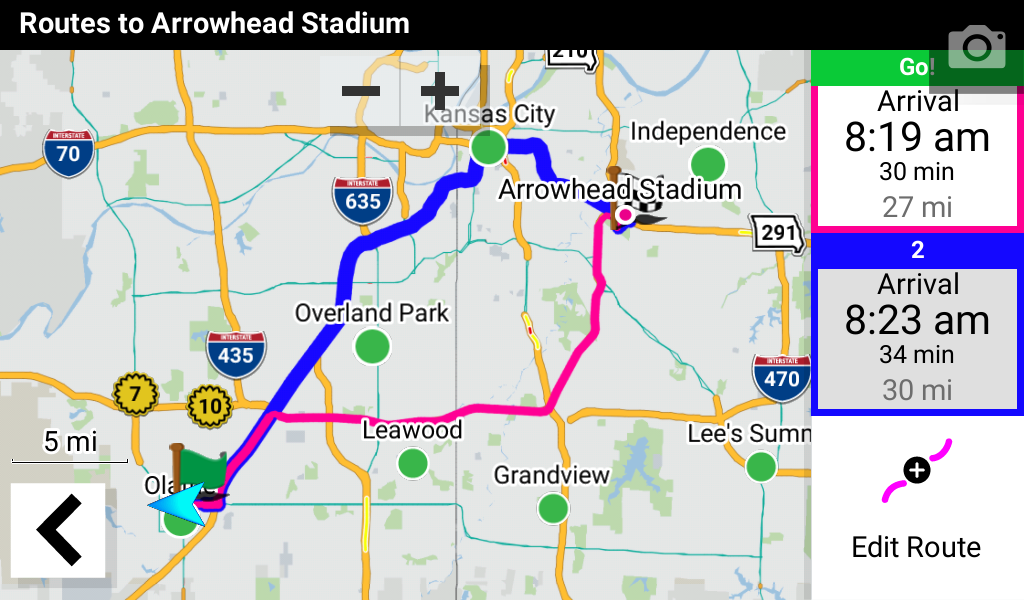

To Select an Alternate Route

1. Touch the option instead of Go

2. Select the preferred route and touch Go


To Edit the Route Manually

You can insert shaping points or stops to change how the route navigates.

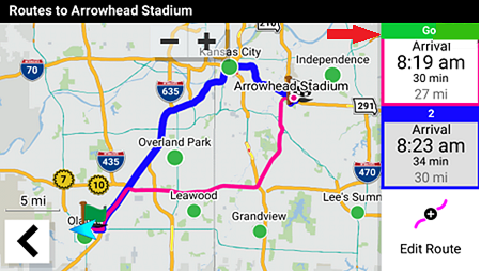

1. Select the trip you want to edit

(The calculation box that shows Go will be the route ready to edit. Tap on the other box to to edit the other route).

Route Planner Tap on Route (Go)

2. Touch Edit Route

  Route Planner Edit Route.

3. Touch OK if prompted

4. Begin editing by selecting a stop or shaping point. See steps below.


To Add a Stop or Location

1. Begin by selecting a route segment which is a section of the route between two locations (tap on the map) , then touch Insert

Route Planner Select Segment Insert 2

2. Touch the Search icon

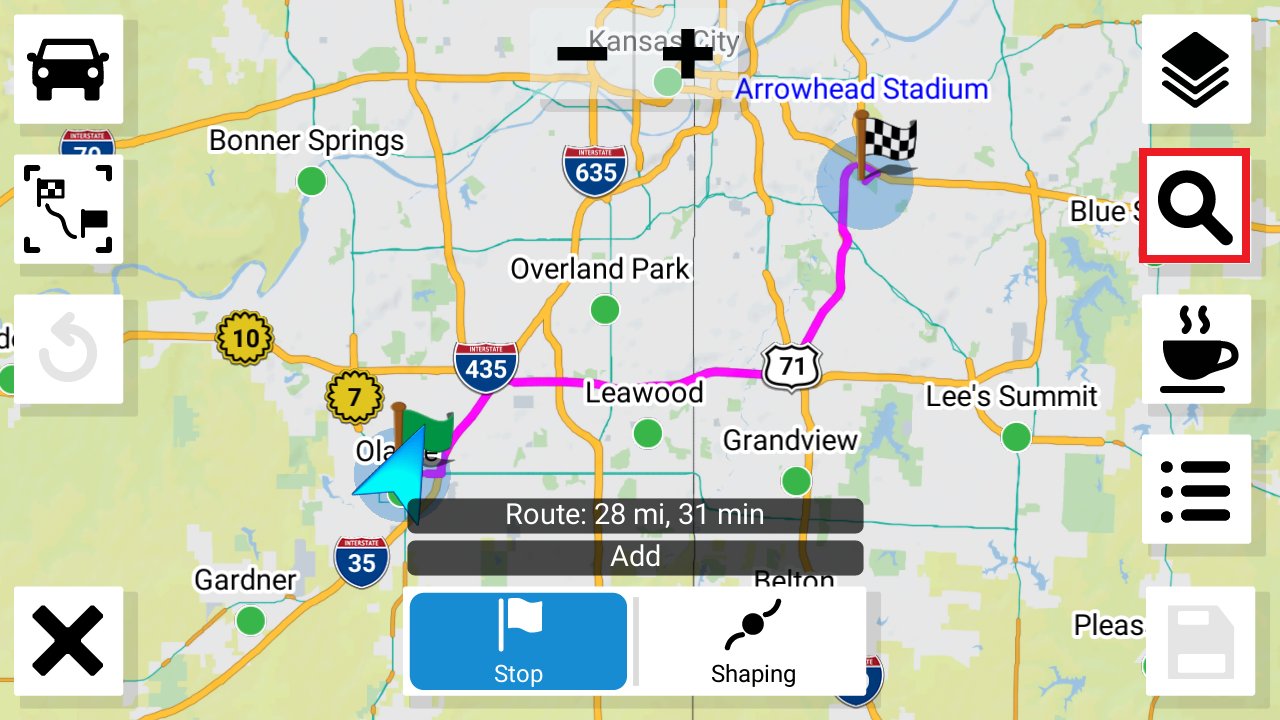

Route Planner Search

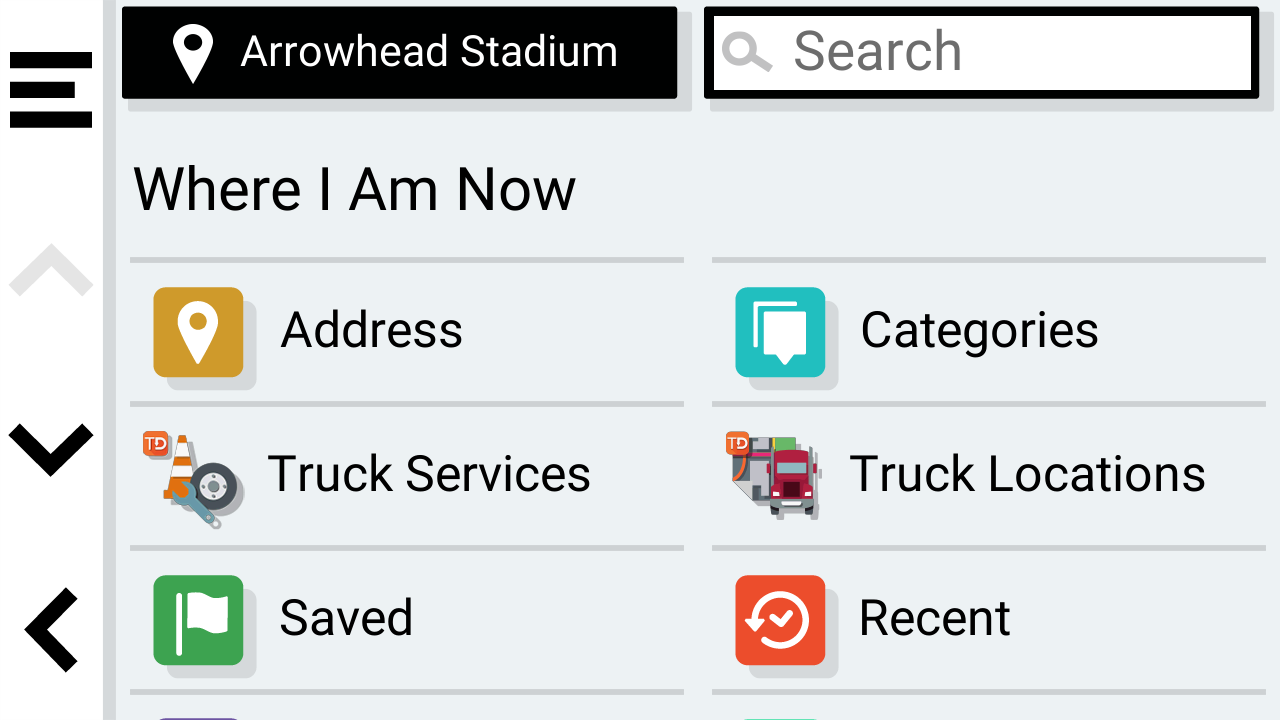

3. Select any search method to find the location

Route Planner Search Method

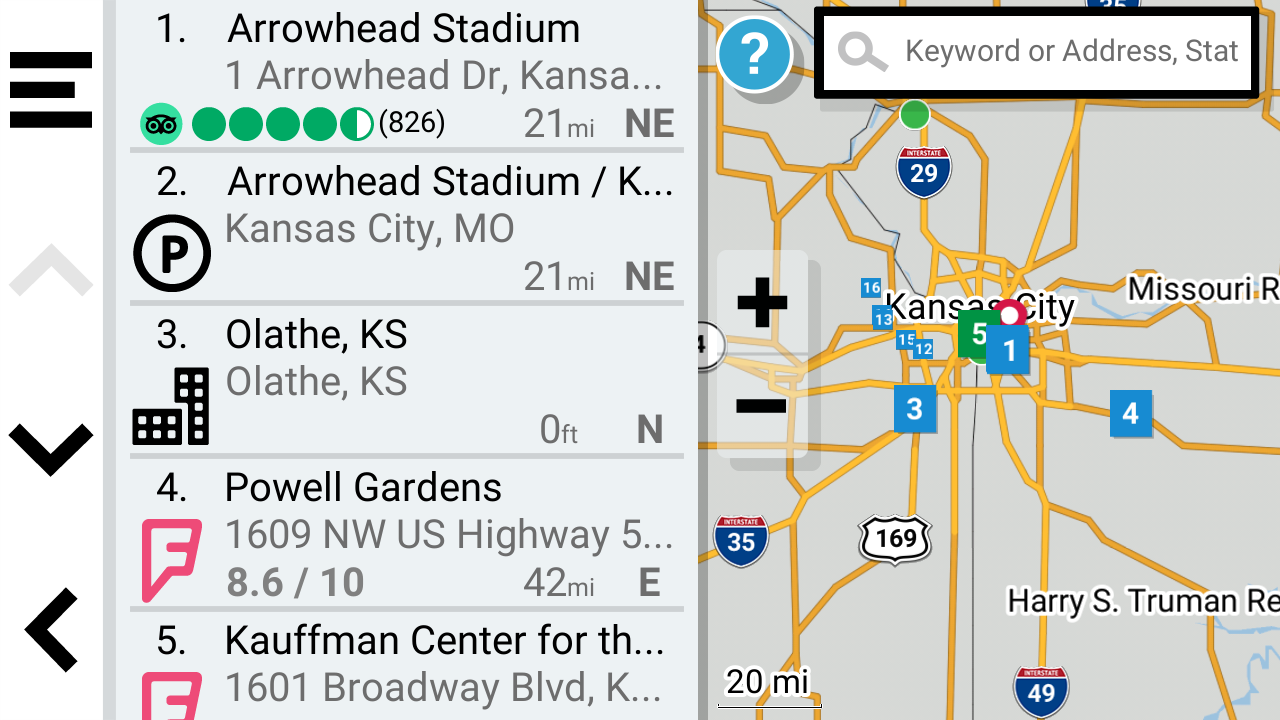

4. Touch the desired location from the list

Route Planner location results

5. Touch Select

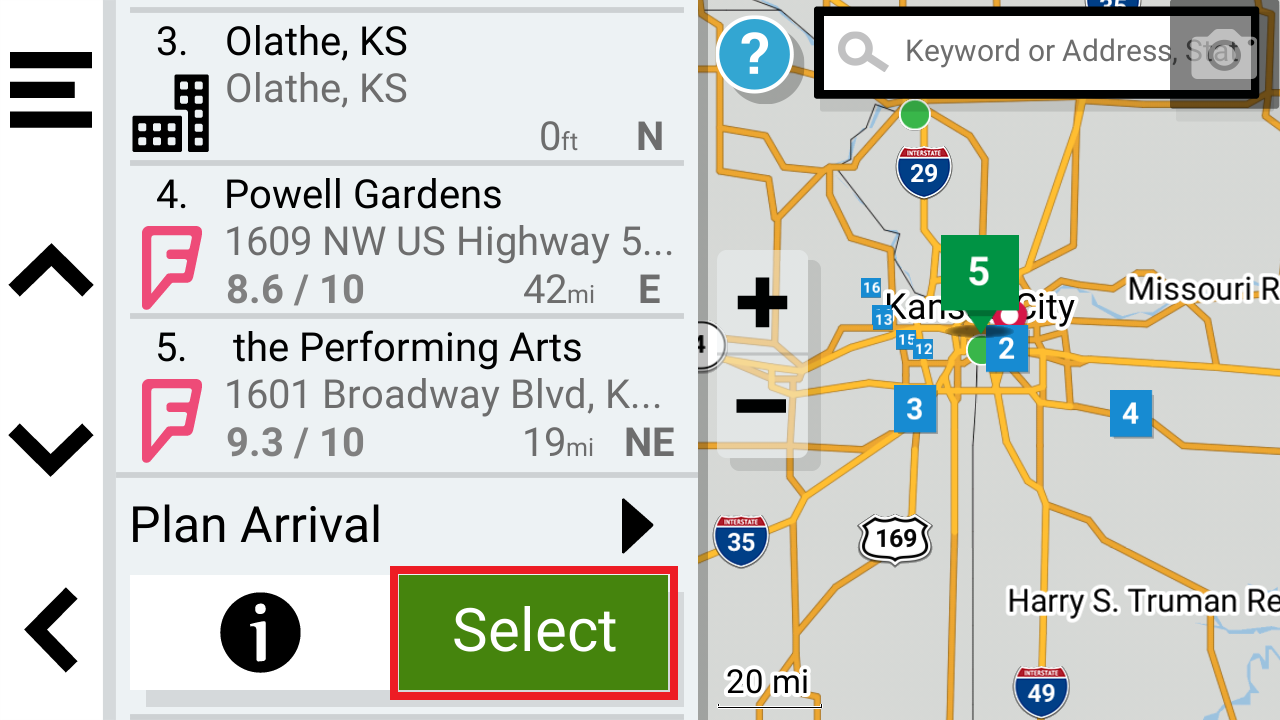

Route Planner Select Search

The stop will be added to the route. Repeat these steps as needed.

6. Touch the Save icon when finished.

Route Planner Save Stops 1


NOTE: When adding a stop to your route, the new stop may become the final destination unless you choose a route segment as described in step #1.

  • To change this you can reorder your stops to your correct destination.
  • Touch the list icon List icon, then touch and hold the arrow(s) of the location to move it to the final destination (as shown below)

Route Planner List Icon on Map

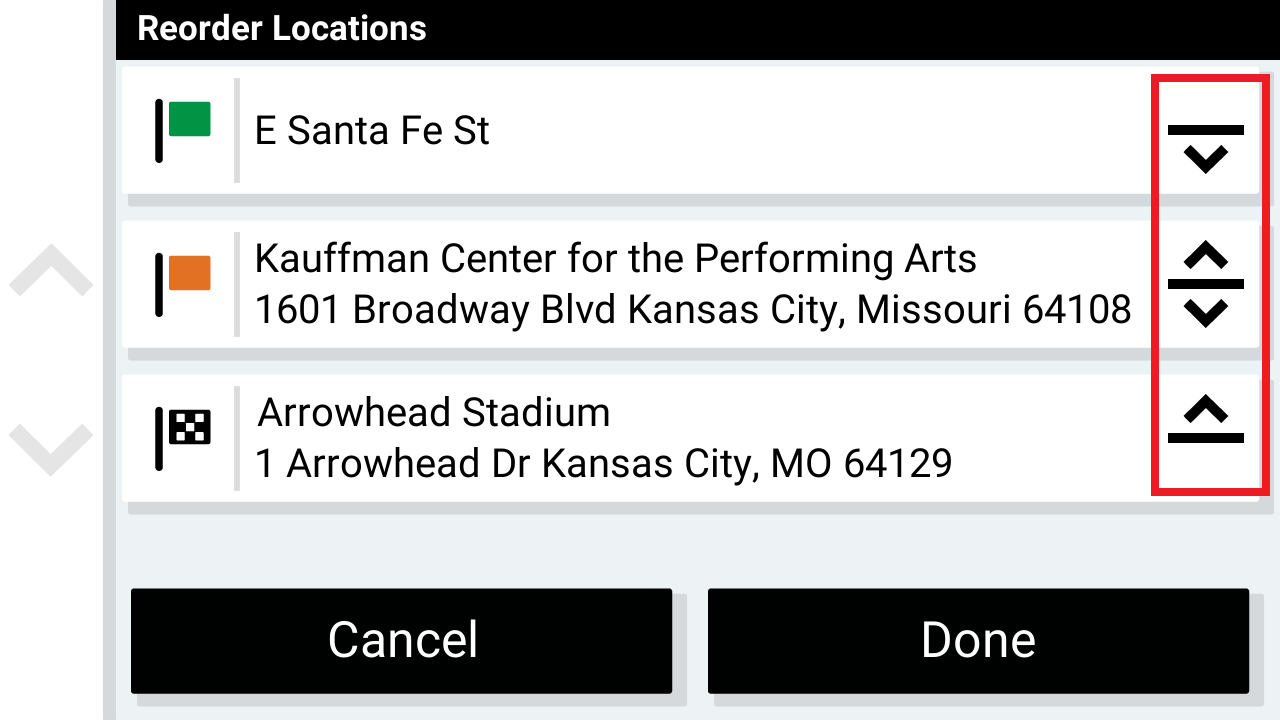

Route Planner Reorder

Repeat these steps to add additional stops to your route.


To Add a Shaping Point

You can insert shaping points to change how the route navigates.

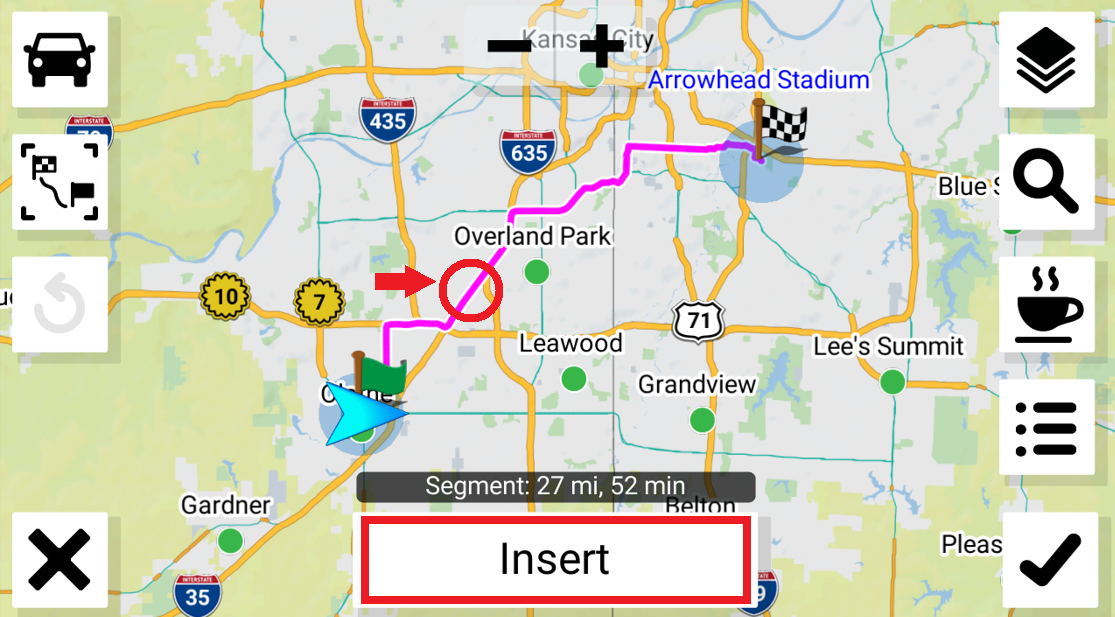

1. Begin by selecting a route segment which is a section of the route between two locations (tap on the map) , then touch Insert

Insert Shaping Point

2. Select the Shaping button, then select a point on the map to shape the route the way you want to go.

  • The device will calculate the route with the shaping point you added.

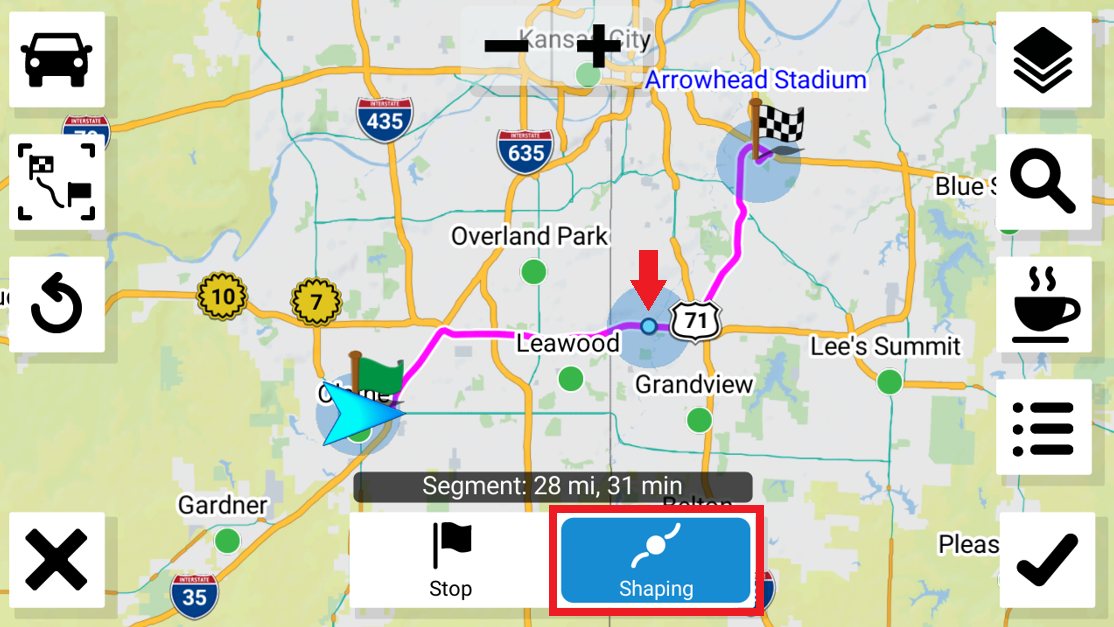

Select Shaping Button and Point on map.png

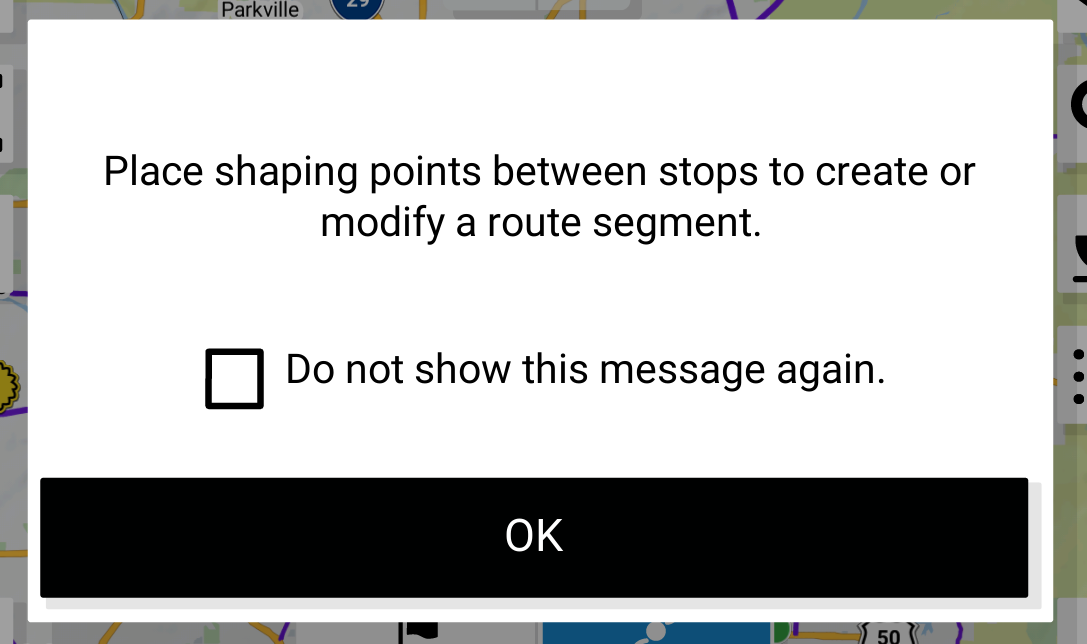

  • Tap OK, if prompted

OK to Shaping Point Message

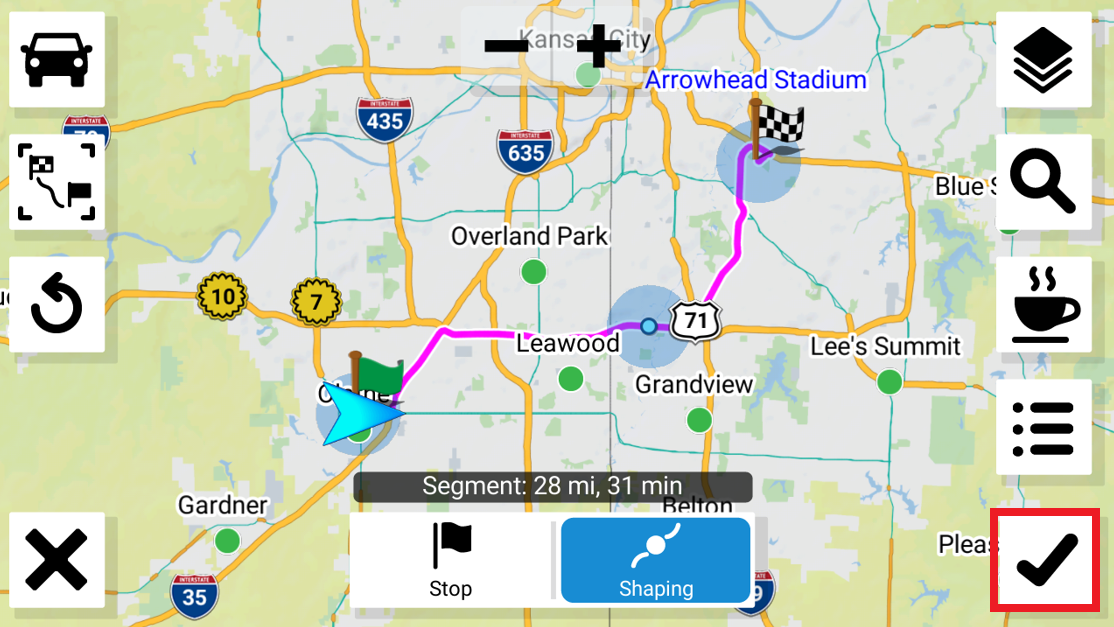

3. Touch the check mark to confirm the changes

Route Planner Check Mark 2

4. Touch the save button to save the changes and start the route

Route Planner Editing Save Button

You can add up to 30 shaping points to your route.


To Edit and Save an Active Route

1. Touch Route Planner from the main page



  • Or choose Apps, then Route Planner

Drive 53 Apps

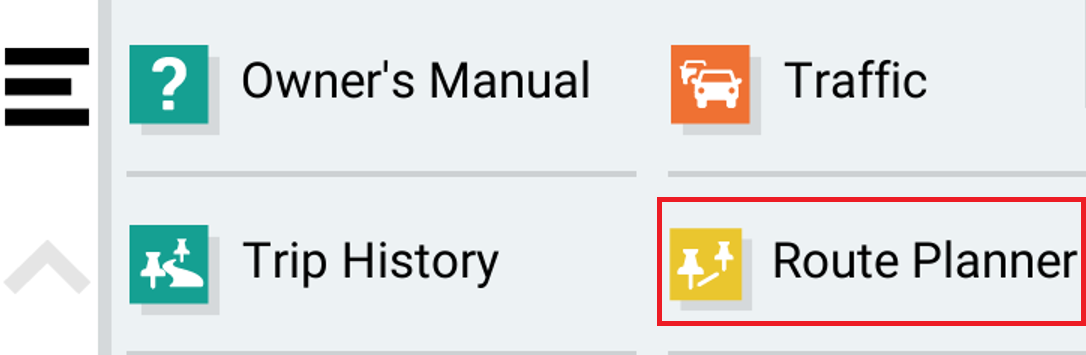

Drive 53 Route Planner

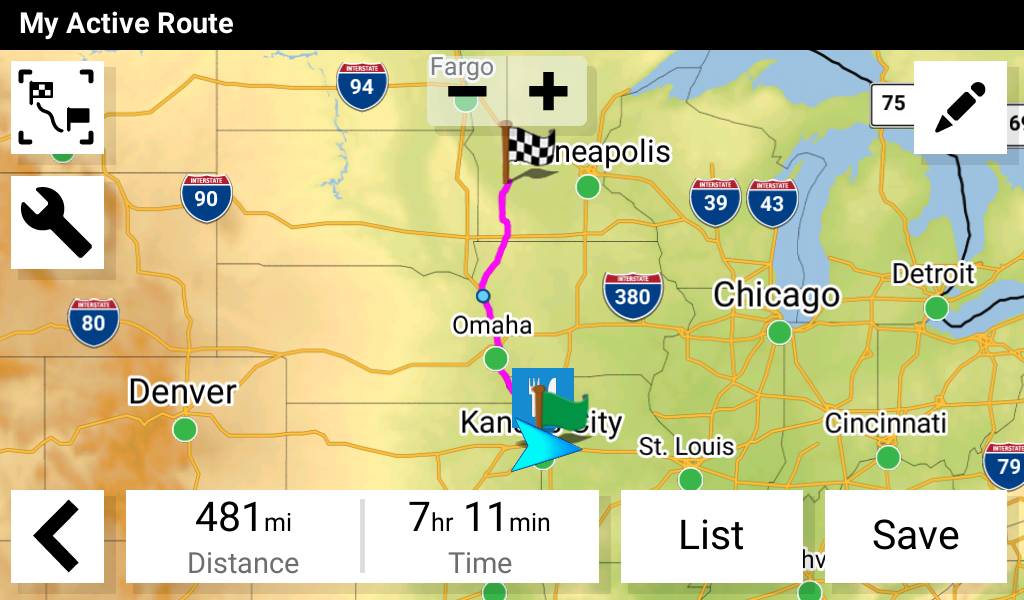

2. Touch My Active Route



3. If edits to the active route are needed, use the editing and shaping tools on the map screen.

  • The route recalculates each time you make a change.

4. Once edits have been made, touch Save



5. Type the desired name for the route, then touch Done



The custom route will now be saved in Route Planner.
