Select
.
Select Navigation.
Select Courses.
Select a course.
Select Ride Settings.
Locate ClimbPro and toggle On.
Select your product to confirm this information applies to you
What is the ClimbPro Feature on an Edge Device
The ClimbPro feature helps manage your effort for the upcoming climbs on a course. Once a course is created and sent to your compatible device, ClimbPro allows you to view details about the climbs before and during your ride. This includes the number of climbs, when they occur, average gradient, and total ascent. ClimbPro is dependent on the built-in map on Edge® cycling computers, so ensure your Edge's map is up to date. Refer to Current Versions of TopoActive Maps for more information.
NOTE: Newer Edge models offer ClimbPro while riding without a course in addition to while navigating. For more information about this feature, see here .
Topics
Which Edge Cycling Computers Feature ClimbPro?
The following Edges will have ClimbPro.
Edge® 130 Plus
Edge® 530
Edge® 540 | Edge® 540 Solar
Edge® 830
Edge® 840 | Edge® 840 Solar
Edge® 1030 | Edge® 1030 Plus
Edge® 1040 | Edge® 1040 Solar
Edge® 1050
Edge® Explore 2
Edge® MTB
How Do I Turn the ClimbPro Feature On?
Select your model below to reveal the steps:
Select Menu.
Select Settings
Select Activity Profiles.
Select a profile.
Select ClimbPro.
Toggle On.
Select
or the Menu.
Select Activity Profiles.
Select a profile.
Select Climbs.
Toggled On.
How Does ClimbPro Determine a Climb?
The ClimbPro feature analyzes the course and identifies climbs based on the following criteria:
A climb must be a minimum of 500 meters in length.
The average gradient must be a minimum of 3%.
The climb score must be a minimum of 1,500
- Score = Length (m) x grade %
All three criteria must be met for a climb to be identified. If you are not seeing any climbs but your course has elevation data, it indicates it does not meet all three requirements above. If there are flat sections or descents in the climb, ClimbPro will still treat it as a single climb if the average grade is 3% or more.
Once identified, climbs are categorized based on the length and gradient, indicated by color:
How Can I Update My Climb Detection Setting?
If your software is up-to-date, update the climb detection setting on your Edge by following these steps:
Select Menu.
Select Settings (Edge 530 only).
Select Activity Profiles.
Select a profile.
Select Data Screens (Edge 530 | Edge 830 | Edge 1030 | Edge 1030 Plus only).
Select ClimbPro or Climbs.
Select Climb Detection and choose your preferred option.
What Information Will ClimbPro Display During My Ride?
ClimbPro features two unique modes to display information, as described below. Information shown can vary between Edge models. Refer to your owner's manual and search for "ClimbPro" for details.
During a Climb

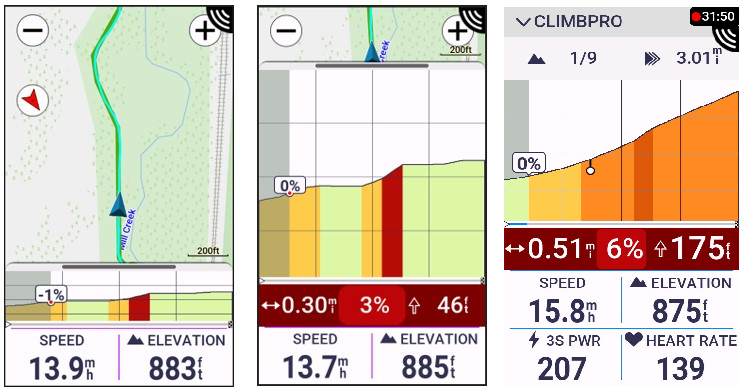

At the start of a climb, the ClimbPro screen as shown below will appear automatically. As you are completing each climb segment, the profile of the climb will become more detailed. The information that the screen will display includes:
The number of the climb including total climbs for the course.
The distance remaining in the climb.
The ascent remaining for the climb.
A chart showing the profile of the climb.
The
icon or white bubble represents where you are currently at on the climb.
The
icon represents the course Virtual Partner (see How Does the Virtual Partner Feature Work When Following a Course or Segment).
The average grade for the climb.
Configurable data fields (defaults are Grade and Elevation).
Map overview (Edge 1050 only).
Swipe up or down on the elevation profile to change the configuration of the screen as shown below.
Out of a Climb
When you are out of a climb, the ClimbPro feature will provide the following information:
The total ascent.
The total climb distance.
All upcoming climbs.
The remaining distance to each upcoming climb (Dist. to).
The average gradient for each climb (Grade).
The length of each climb.
You can also select an upcoming climb from the list to view a more detailed profile for each upcoming climb.
Navigation Free ClimbPro

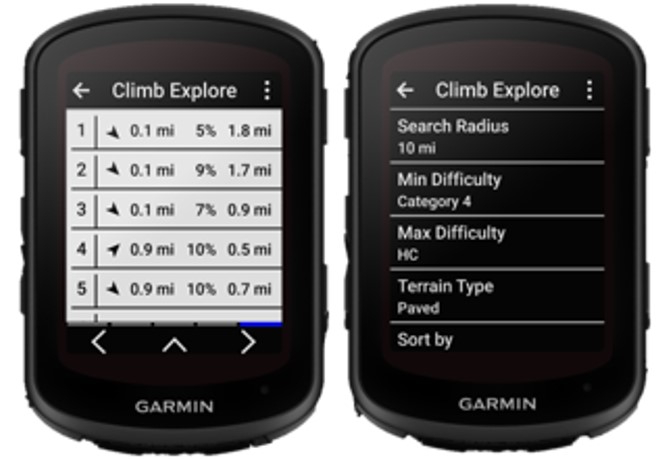

The Edge 540/840/1040/1050 Series and Edge MTB can show nearby climbs without following a course. You can find nearby climbs on your Edge using the Climb Explore widget or by panning the map. Refer to ClimbPro: Tethered Versus Free Climbing for more information about this feature.
