Installing a NMEA 0183 GPS Antenna (HVS) to a Garmin® Chartplotter

To determine the wiring for a chartplotter and antenna combination, select the group the chartplotter belongs to.


GPSMAP® Chartplotter Series

GPSMAP® 2xxx chartplotters

GPS 17 / GPS 17N

17


GPS 17x / GPX 19x* / GPS 24xd NMEA 0183

*The 19x HVS and GPS 24xd comes with an orange resistor wire that must be connected in between the two orange wires.  Legacy 24xd

GPSMAP® 3xxx chartplotters

GPS 17 / GPS 17N

17n


GPS 17x / GPX 19x* / GPS 24xd NMEA

*The 19x HVS comes with an orange resistor wire that must be connected in between the two orange wiresLegacy 24xd

GPSMAP® 4xxx chartplotters

GPS 17 / GPS 17N

gps 4xxx


GPS 17x / GPS 19x* / GPS 24xd NMEA 0183

*The 19x HVS comes with an orange resistor wire that must be connected in between the two orange wiresLegacy plotter 4000-5000 24xd

GPSMAP® 5xxx chartplotters


GPS 17 / GPS 17N

5xxx


GPS 17x / GPS 19x* / GPS 24xd NMEA 0183

*The 19x HVS comes with an orange resistor wire that must be connected in between the two orange wiresLegacy plotter 4000-5000 24xd

GPSMAP® 6xxx chartplotters


GPS 17 / GPS 17N

6xxx


GPS 17x / GPS 19x / GPS 24xd NMEA 0183

Legacy 6000-7000  24xd

GPSMAP® 70xx chartplotters


GPS 17 / GPS 17N

70xx


GPS 17x / GPS 19x / GPS 24xd NMEA 0183

Legacy 6000-7000  24xd

GPSMAP® 74xx chartplotters| GPSMAP® 76xx chartplotters


GPS 17 / GPS 17N

Once connected, see  'Port settings ' for setting up the port correctly on the device. GPSMAP 7400 and GPS17N wiring


GPS 17x / GPS 19x / GPS 24xd HVS

Once connected, see  'Port settings ' for setting up the port correctly on the device. gpsmap  GPS 17x 19x 24xd HVS wiring

GPSMAP® 82xx chartplotters


GPS 17 / GPS 17N

82xx


GPS17x / GPS 19x /GPS 24xd HVS

gpsmap 8200 and gps ant wiring

GPSMAP® 8400 chartplotters 10", 12", 16" | GPSMAP® 8600 chartplotters 10", 12", 16"


GPS 17 / GPS 17N

Once connected, see  'Port settings ' for setting up the port correctly on the device. 8400


GPS 17x / GPS 19x / GPS 24xd NMEA 0183

Once connected, see  'Port settings ' for setting up the port correctly on the device.84008600 10 12 16 17 19 24 0183

GPSMAP® 8400 chartplotters 17", 22", 24" | GPSMAP® 8600 chartplotters  17", 22", 24"


GPS 17 / GPS 17N

Once connected, see  'Port settings ' for setting up the port correctly on the device.8400 8600


GPS 17x / GPS 19x / GPS 24xd NMEA 0183

Once connected, see  'Port settings ' for setting up the port correctly on the device.8400 8600 large display GPS 17 19 24xd 0183

GPSMAP® 5x7 chartplotters| GPSMAP® 7x1 chartplotters |GPSMAP® 8x0 chartplotters |GPSMAP® 10x0 chartplotters


GPS 17 / GPS 17N

Once connected, see  'Port settings ' for setting up the port correctly on the device.GPSMAP 547 840 1040 17


GPS 17x / GPS 19x / GPS 24xd NMEA 0183

Once connected, see  'Port settings ' for setting up the port correctly on the device.547 741 840 1040 17 19 24 0183

GPSMAP® 7x2 chartplotters | GPSMAP® 7x3 chartplotters | GPSMAP® 9x2 chartplotters |GPSMAP® 9x3 chartplotters |GPSMAP® 10x2 chartplotters |GPSMAP® 12x2 chartplotters |GPSMAP® 12x3 chartplotters Plus, Touch models| GPSMAP® 16x3 chartplotters


GPS 17 / GPS 17N

Once connected, see  'Port settings ' for setting up the port correctly on the device.

NOTE: If the resistor is used on the orange wire, set Port to NMEA standard. If no resistor, use NMEA high speed.

The image below does not specify all units, but it applies to all units listed in the title. gpsmap 7x23 9x23 12x23 10x2 17 0183


GPS 17x / GPS 19x GPS 24xd NMEA 0183

Once connected, see  'Port settings ' for setting up the port correctly on the device.

NOTE: If the resistor is used on the orange wire, set Port to NMEA standard. If no resistor, use NMEA high speed.

The image below does not specify all units, but it applies to all units listed in the title.gpsmap 7x2x39x2x312x2x310x2 24xd


Echomap™ Chartplotter Series

echoMAP™ 50s chartplotters | echoMAP™ 50dv chartplotters | echoMAP™ 70s chartplotters | echoMAP™ 70dv chartplotters

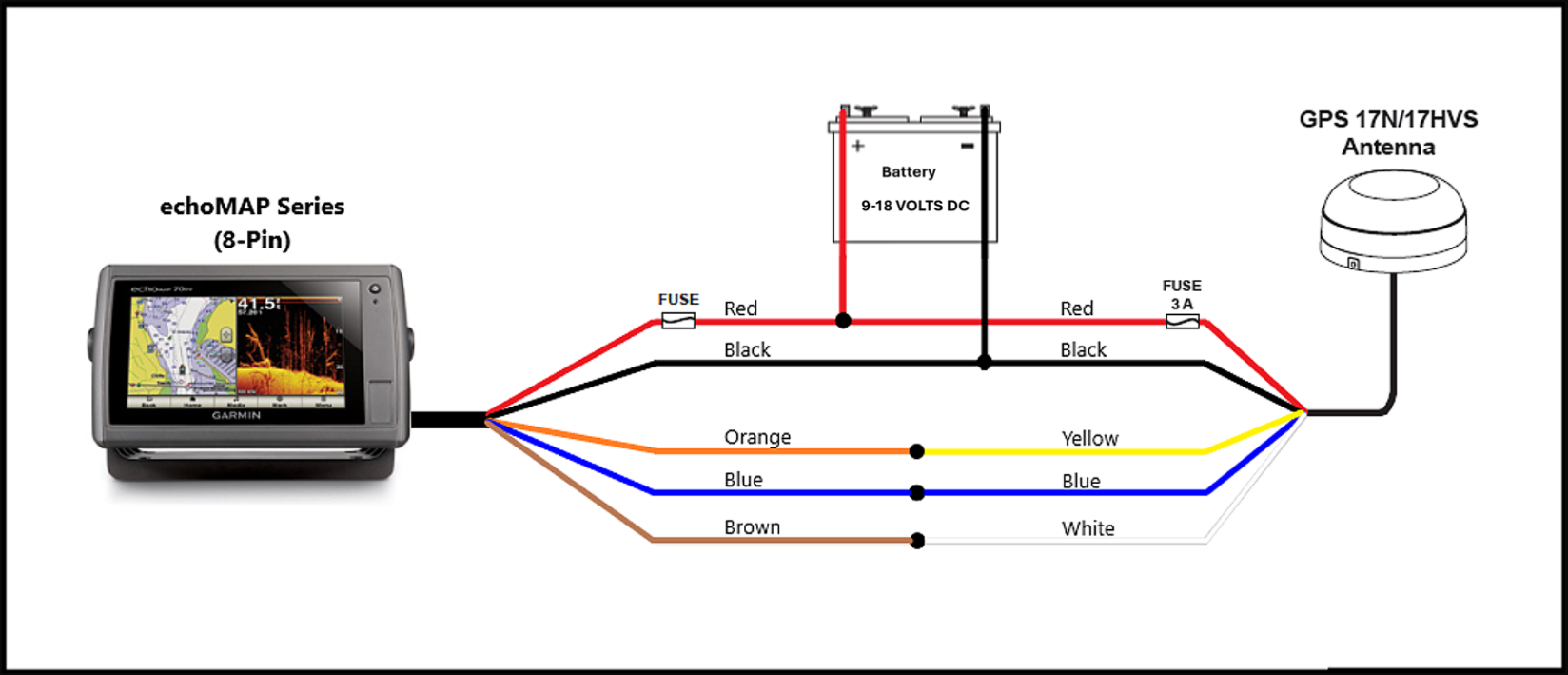

GPS 17 / GPS 17N

Once connected, see  'Port settings ' for setting up the port correctly on the device.


GPS 17x / GPS 19x / GPS 24xd NMEA 0183

Once connected, see  'Port settings ' for setting up the port correctly on the device.


echoMAP™ CHIRP chartplotters | ECHOMAP™ Plus chartplotters | ECHOMAP™ Ultra chartplotters | ECHOMAP™ UHD chartplotters

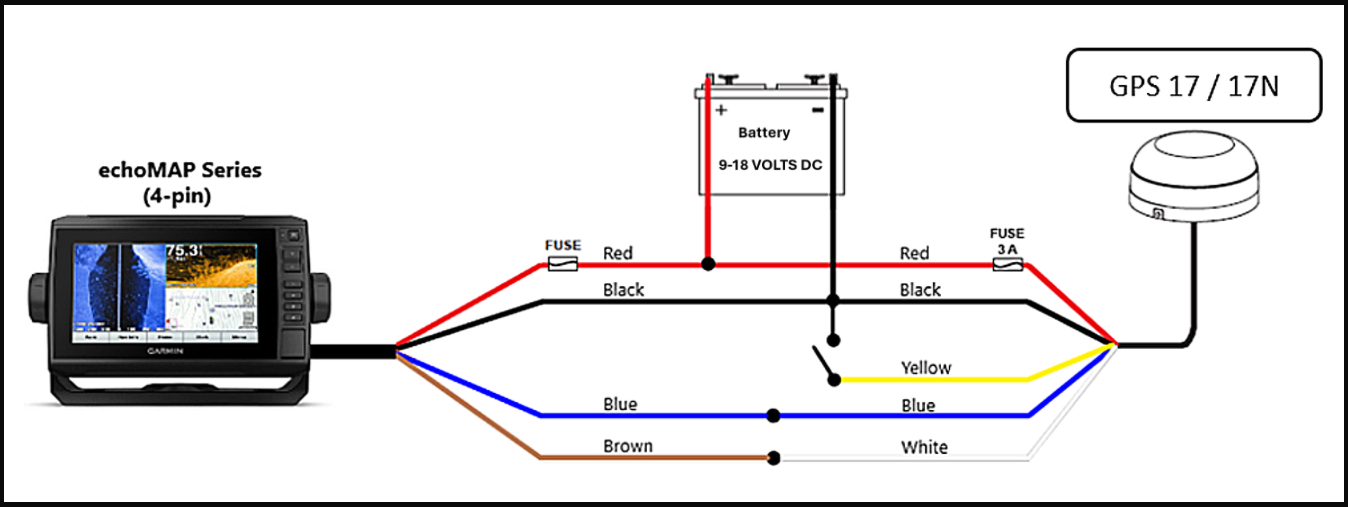

GPS 17 / GPS 17N

Once connected, see 'Port settings' for setting up the port correctly on the device.

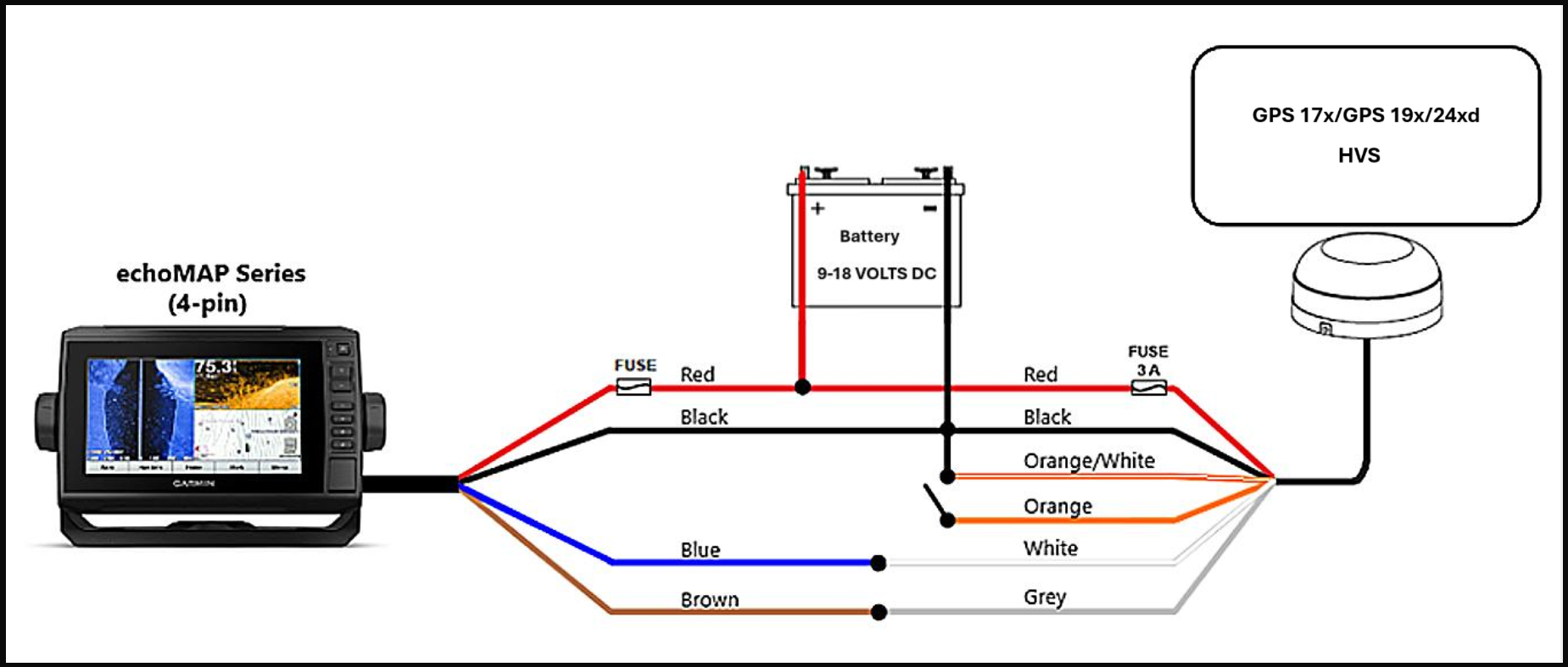

GPS 17x / 19x / GPS 24xd NMEA 0183

Once connected, see 'Port settings' for setting up the port correctly on the device.


Port settings

Adjust the communications ports listed below to match the GPS antenna installed on the vessel. See the owner's manual for device-specific steps; .

echoMAP™ series:

Select the appropriate Serial Port

    • GPS 17, 17N, 17x - Select NMEA Standard

    • GPS 19x / GPS 24xd - Select NMEA High Speed

GPSMAP™ series:

Select the appropriate input port

    • GPS 17, 17N, 17x - Select NMEA Standard

    • GPS 19x / GPS 24xd - Select NMEA High Speed

Select the appropriate output port

    • GPS 17, 17N, 17x - Select NMEA Standard

    • GPS 19x / GPS 24xd - Select NMEA High Speed


Checking if the antenna is transmitting:

  • GPS 17 / 17N HVS White is the output wire

  • GPS 17X / 19X HVS / GPS 24xd "Gray" is the output wire

Place the positive lead of the Volt meter on the output wire and put the negative lead to ground. If there is a pulse in the reading the antenna is transmitting. If there is no pulse and it is a steady reading it is not transmitting and will need to be replaced.
