Customizing the Trip Data Fields on the Map Screen for an Automotive Device

Your automotive device allows you to customize the trip data fields on the navigation screen.

To Change the Trip Data Field:

1. Touch View Map

2. Touch a data field that does not display Speed

3. Touch "+" next to the desired option to save the change

This selected data will now be displayed in the data field while driving.

It is possible to add up to 4 additional data fields on the map by enabling the Trip Data map tool on the device.

To Enable Trip Data:

1. Touch View Map

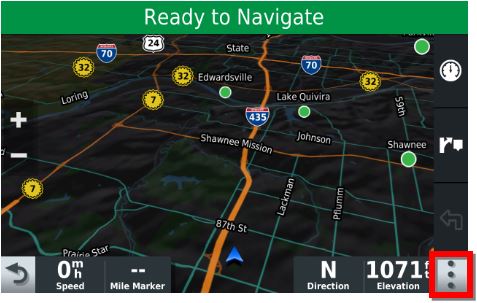

2. Touch the menu button or in the lower right corner

3. Touch Trip Data

Additional data fields will appear on the right side of the screen. You can customize these by touching any one of them, then touching the + icon next to the desired data type, which will automatically change the type of data displayed.

• The Camper/RV 890, Camper/RV 895, Camper/RV 1090, Camper/RV 1095, dezl LGV/OTR800, and dezl LGV/OTR1000 will have four additional data fields.
• The dezl OTR500 and dezl LGV/OTR700 will have three additional data fields.

Your Device May Offer the Following Customizable Data Field Options:

Note: Not all devices will have every option listed below.
