Creating, Editing, or Deleting a Trip on an Automotive Device

Creating a multiple-point route allows navigation among several points. Routes can be saved to the device's internal storage for use at a later date.

To Create a Route:

1. Touch Where To?

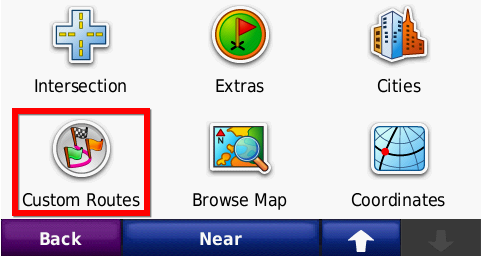

2. Touch Custom Routes

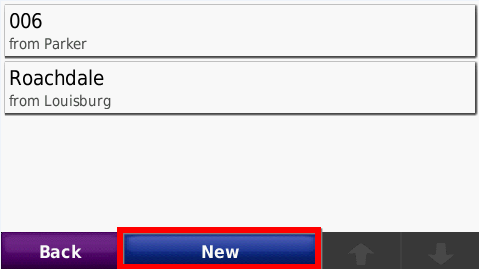

3. If no previous routes have been created, touch Yes when the prompt appears asking if you'd like to create one. Touch New if previous routes have already been created.

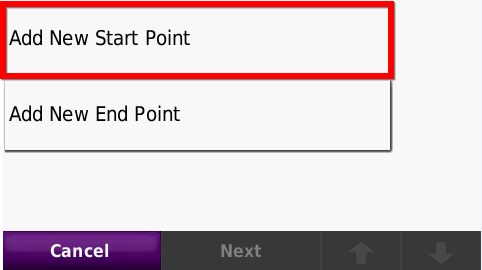

4. Touch Add New Start Point

NOTE: The Start Point is the first stop on the route. You can use your current location as the starting point, but it isn't necessary. The device will skip your current location if that is where you are when it begins to navigate.

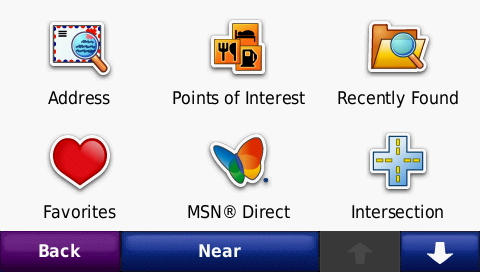

5. Use the various search functions to find and touch the desired starting point

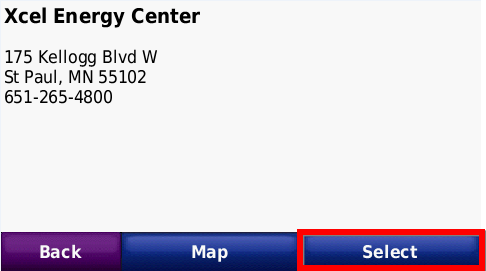

6. Touch Select

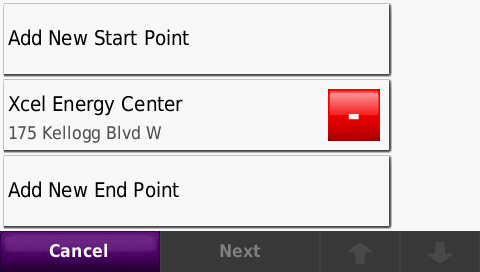

7. Touch Add New Start Point or Add New End Point to add a second point



8. Follow steps 5 and 6 to locate and add the second point

9. Add up to 200 total points by touching Add New Start PointAdd New End Point or green arrow pointing left with white plus inside

Touching green arrow pointing left with white plus inside will add a destination in between the two points indicated

Remove points by touching white minus sign with red background next to the point(s) you want to remove

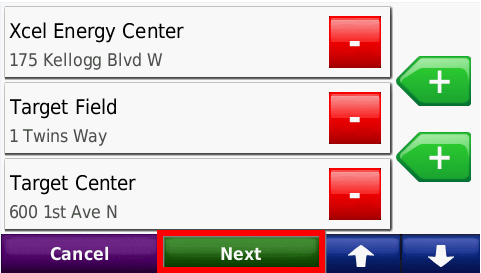

10. Touch Next once all desired points have been added. The device will calculate the route and display it on the map preview screen

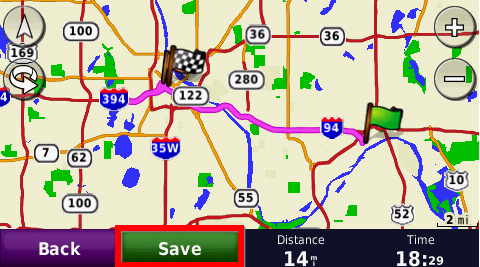

11. Touch Save to finish or touch Back to return and add/remove more points

The route can be edited once it has been saved. The device can optimally reorder the points or they can be manually reordered. The route may also be deleted.


To Edit or Delete a Route:

  1. Touch Where to?
  2. Touch Custom Routes
  3. Touch the route you would like to edit
  4. Touch Edit (skip this step on some devices)
  5. Select from the following options:
    • Change Name: Customize the name of the saved route as it appears within the Routes menu
    • Add/Remove Points: Add or remove destinations to the saved route
    • Manually Reorder Points: Manually select the order to be routed to all the entered points
    • Optimally Reorder Points: Have the device calculate the most efficient order to travel to all the entered points.
      • Note: The start point and endpoint will remain as entered and will not be changed when optimized.
      • Note: To optimize the order, you must have at least two waypoints added in addition to your Start and Endpoints.
    • Recalculate: Select this option to have the device recalculate the route if navigation settings have been changed or a map update has been completed
    • Delete: This appears as a button at the bottom of the screen rather than a menu item
      • This will permanently remove the route from the Routes list

Touch Go! to proceed with navigation.
