Customizing the Trip Data Fields on the Map Screen for an Automotive Device

Your automotive device allows you to customize the trip data fields on the navigation screen.

To Change the Trip Data Field:

1. From the main menu, touch View Map

2. Touch the data field that does not display Speed



3. Touch "+" next to the desired option to save the change

This selected data will now be displayed in the data field while driving.


It is possible to add 3 additional data fields on the map by enabling the Trip Data map tool on the device.

To Enable Trip Data:

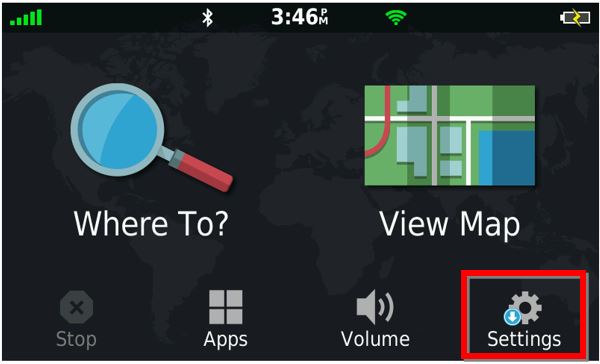

1. Touch Settings



2. Touch Map & Vehicle



3. Scroll down and touch Map Tools

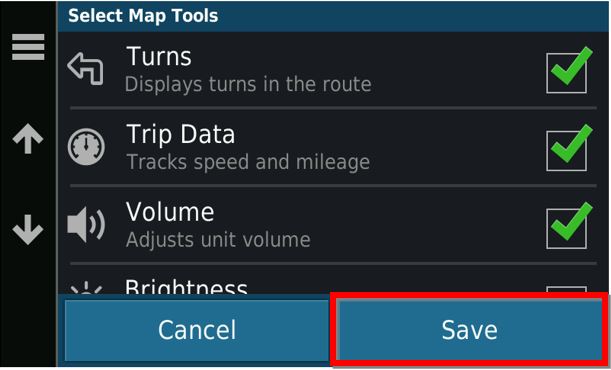

4. Touch the box next to Trip Data to enable it

    • Trip Data is already enabled if a checkmark is in the box



5. Touch Save

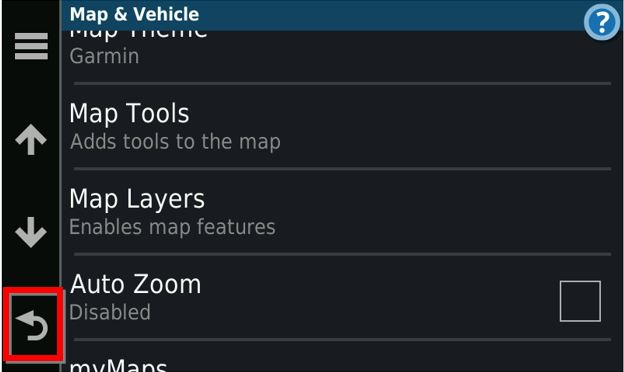

6. Hold down the back button

7. Touch View Map

8. Touch the  wrench or  bars in the lower right corner

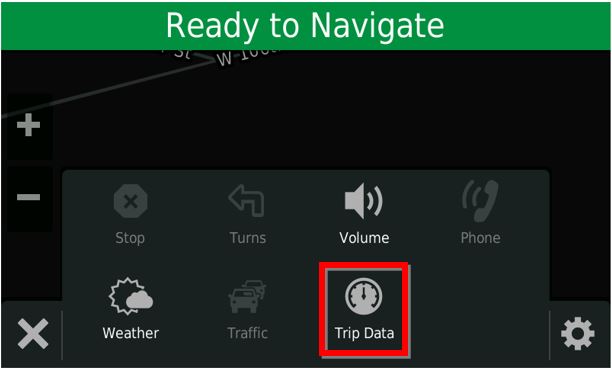

9. Touch Trip Data

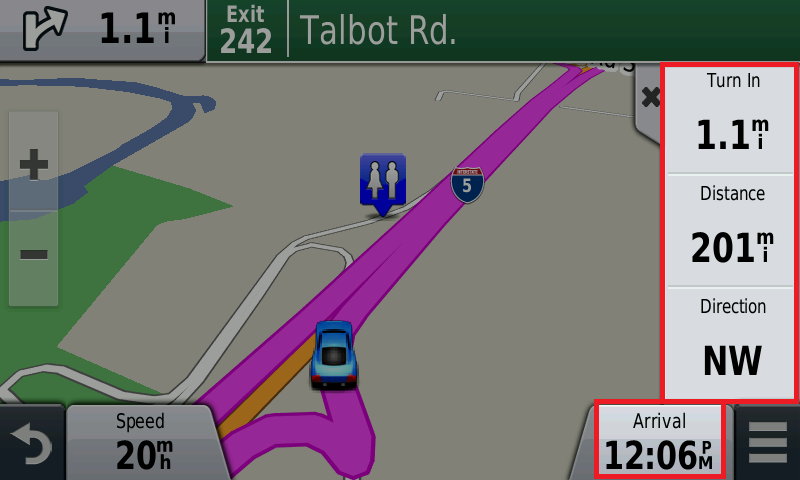

Three additional data fields will appear on the right side of the screen. You can customize these by touching any one of them, touching the + icon next to the desired data type, then touching the  back button.




Your Device Offers the Following Customizable Data Field Options:

Available with or without routeAvailable during active route only
  • Trip A mileage
  • Trip B mileage
  • Direction
  • Speed
  • Maximum speed traveled
  • Moving average (average speed while in motion)
  • Overall average
  • Stopped (amount of time spent while stopped)
  • Moving time
  • Total time
  • Time of day
  • Elevation
  • Location (coordinates)
  • GPS accuracy
  • Temperature (available on devices paired with Smartphone Link App)
  • Arrival time
  • Arrive in (remaining time to arrival)
  • Destination distance
  • Via point arrival time
  • Time to via point
  • Via point distance
  • Distance to turn
  • Time to turn
