Setting Up, Saving, and Clearing the Track Log on the eTrex Legend H and Vista H

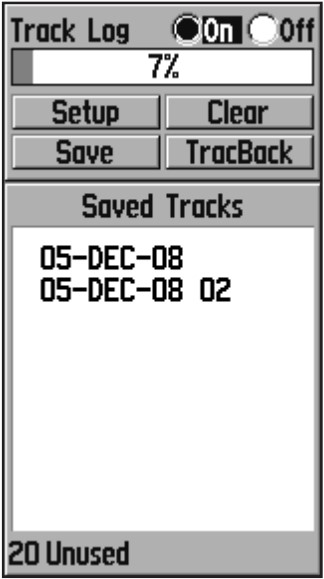

eTrex Tracks Page

The eTrex® outdoor handheld draws an electronic Track Log on the Map page as you travel, and starts recording as soon as the unit gets a location fix. After you have used the eTrex for a few trips, the map display can become a bit crowded from keeping track of your every move. You can clean up the screen by clearing the track log (the lines left on the Map page). You can also save your current track log before clearing it.

Track Setup

  1. Press Menu/Find twice to open the Main Menu page.
  2. Use the Thumbstick to highlight 'Tracks' and then press it in to select it.
  3. Use the Thumbstick to highlight and select 'On' or 'Off' to enable/disable track recording.
  4. Highlight 'Setup' and then press in on the the Thumbstick.
  5. You can check 'Wrap When Full' by highlighting it and then pressing in on the the Thumbstick.
    You can highlight the 'Record Method,' 'Interval,' and 'Style' fields and press in on the the Thumbstick to display their options. 'Interval' options change to accommodate the 'Record Method' choices.

Saving the Current Track Log

  1. Press Menu/Find twice to open the Main Menu page.
  2. Use the Thumbstick to highlight 'Tracks' and then press it in to select it.
  3. Use the Thumbstick to highlight 'Save' and then press it in to select it. Select 'Yes' or 'No' when prompted with 'Do You Want To Save the Entire Track?'
    • If you select 'Yes,' a 'Saving Track' message appears followed by the Saved Track Page. The new saved track is a representation of the entire track log from beginning to end.
    • If you select 'No,' a map showing the entire track appears. Follow the prompts to select the beginning and ending points for the track by using the Thumbstick to move the panning arrow and select the desired points on the map.
  4. A 'Saving Track' message appears followed by the Saved Track page. Use the Thumbstick to highlight and select 'OK' to save the track.

The track is now saved in the 'Saved Tracks' list on the Tracks page.


Clearing the Track Log

  1. Press Menu/Find twice to open the Main Menu page.
  2. Use the Thumbstick to highlight 'Tracks' and then press it in to select it.
  3. Use the Thumbstick to highlight 'Clear' and then press it in to select it.
  4. Use the Thumbstick to highlight 'Yes' and then press it in to select it.
