XB-6000 Firmware Update Instructions

Requirements: Firmware installation requires a computer running either Windows-XP or later, or Mac OS X 10.7 “Lion” or later.


Follow these steps to update the firmware in the XB-6000:

  1. Download the updated firmware package from  Software Downloads for Vesper XB-6000 / XB-8000

  2. Install the package by double-clicking on the file and follow the installation instructions

  3. Turn on the XB-6000 and wait a few seconds for it to start up

  4. Connect the computer to the XB-6000 over USB

  5. Run the vmAIS Configuration and Status program that was installed in step 2. On Windows, find it in the Windows Start menu in the Vesper Marine folder

  6. Select the correct COM port under the Com Port dropdown menu and click the “Connect” button

  7. Select the “Firmware Update” tab

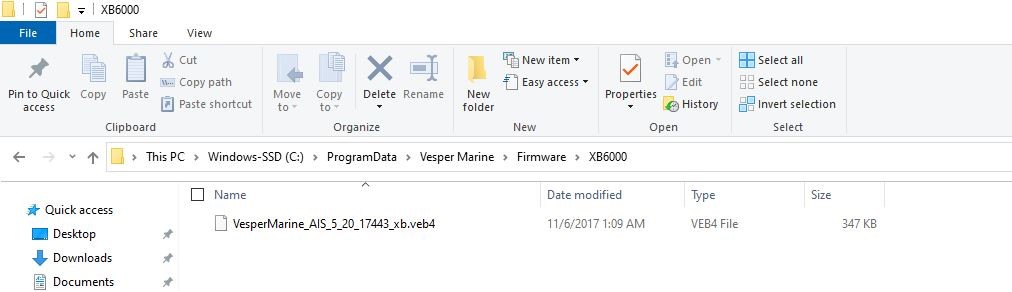

  8. Use the “Browse” button to select the firmware file. Example file names (the numbers will be different for each firmware release): VesperMarine_AIS_5_20_17443_xb.veb4

  9. Click the “Load Firmware” button. The progress of the upgrade is shown on the computer screen

    XB-6000 Firmware Update Instructions

  10. Do not remove the power from the XB-6000. Wait until the process has completed fully before disconnecting the power. For assistance, contact us at https://support.garmin.com/
