Charging the Foretrex 201

The Foretrex® 201 outdoor device operates on a built-in battery. Before using the Foretrex 201, you must charge the internal battery.

To Charge the Foretrex 201

  1. Wipe the contacts dry, if needed.

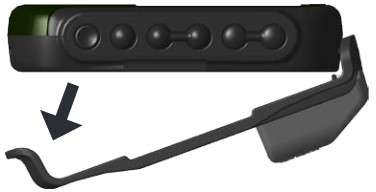

  2. Snap the Charging Cradle to the unit with the 4-contact end in first.

    Foretrex 201 Charging Clip

  3. Connect the AC Charging Cable in to the connector labeled “5.0V DC” on the Charging Cradle.

  4. Connect the AC Charging Cable to a power source. The message “Battery Charging in Progress” appears on the screen of the Foretrex when it is charging.

    Foretrex 201 Battery Charge Screen

  5. Leave the Foretrex until it is completely charged, at least two (2) hours. When the message “Battery Charging Completed” appears on the screen, the unit is fully charged and ready for use.


Foretrex 201 Battery Life

When the Foretrex is fully charged, you should get about 15 hours out of the battery before it needs to be charged again. The Foretrex charges in about one to three hours.

 Foretrex 201 Battery Gauge
