General Purpose Input Output (GPIO) using the Cortex® Handset

Programming GPIO Sensors

Programming GPIO Sensors can be done easily using both the Cortex™ Handset or using the Cortex Onboard™ App on compatible smartphones. For more information on either path, see Related Content.

GPIO Sensor Wiring Examples

Here are a number of wiring examples for the Cortex® General Purpose Input Output (GPIO) connection.

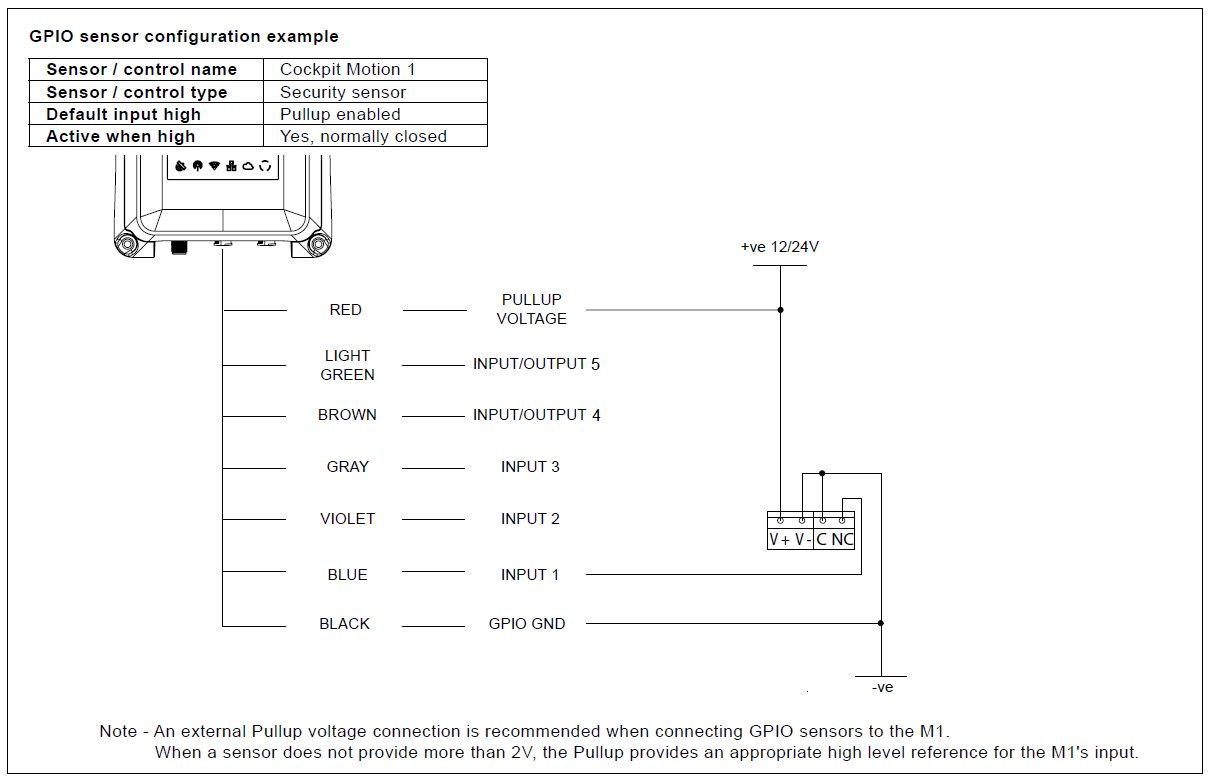

Motion Sensor

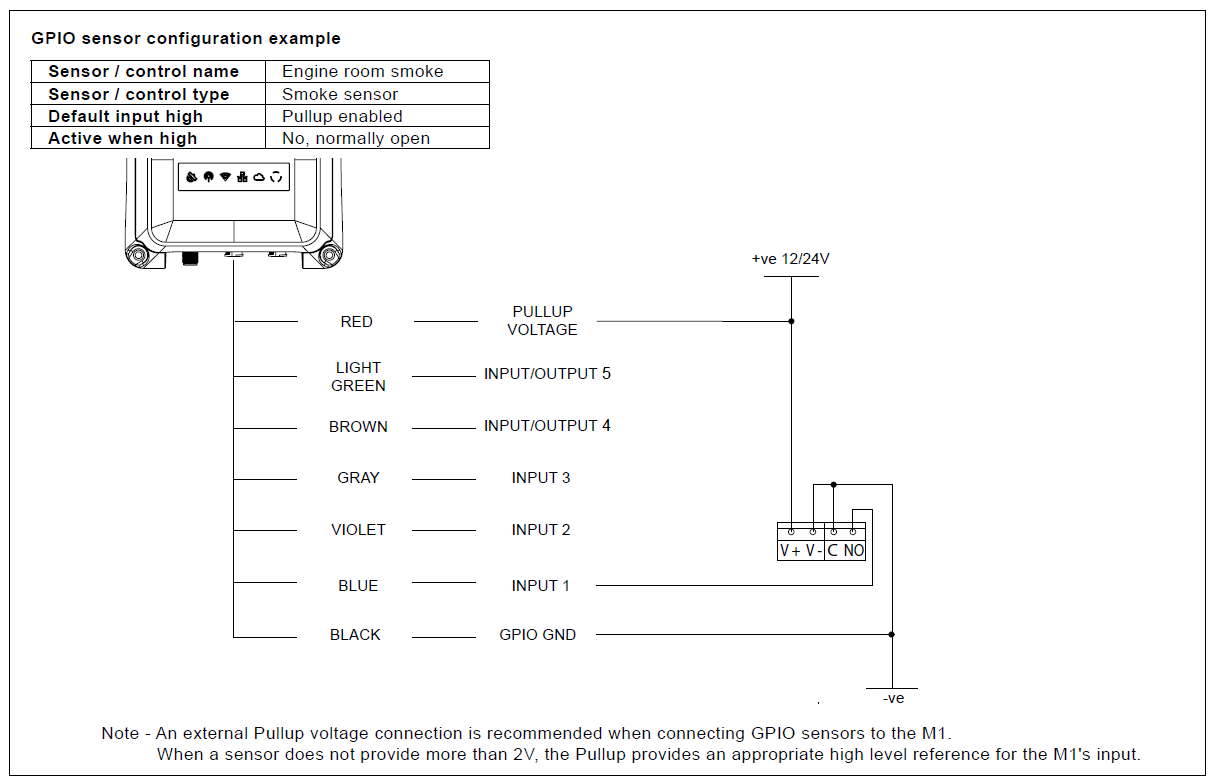

Smoke / Heat Sensor

High Water Sensor

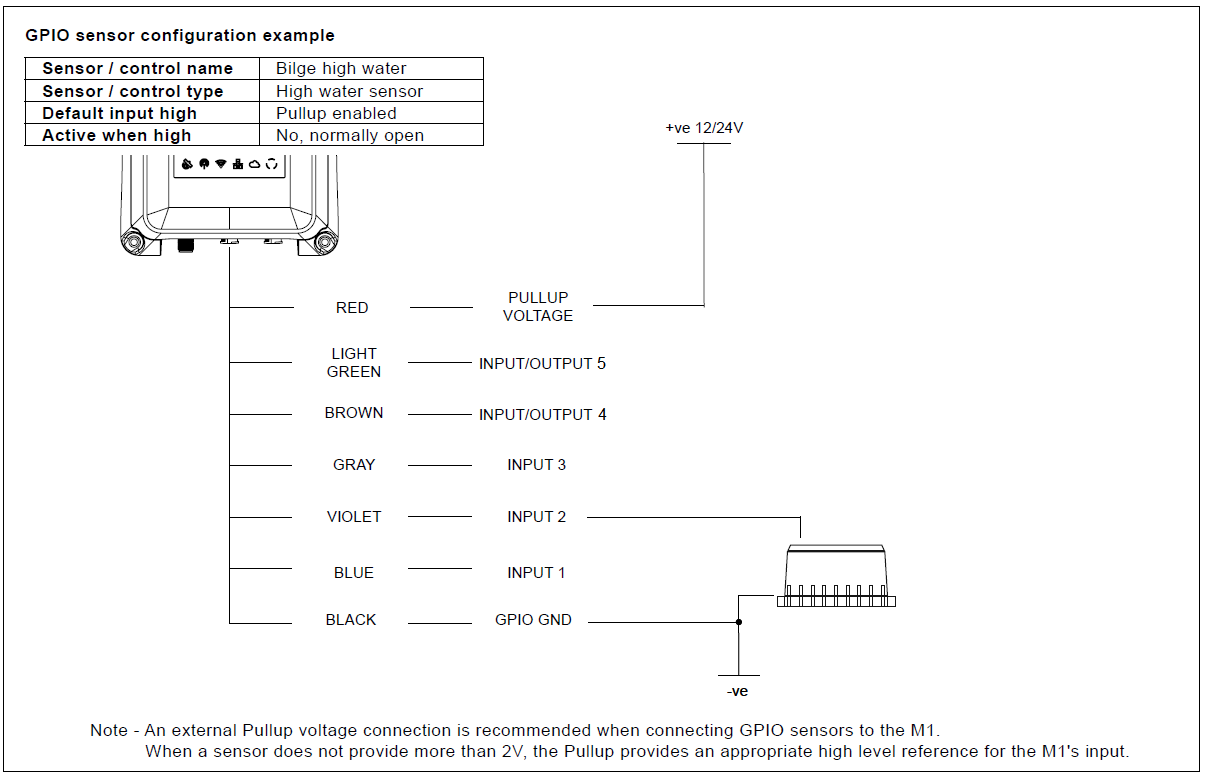

wiring diagram of the bilge - highwater sensor

Lighting Remote Control

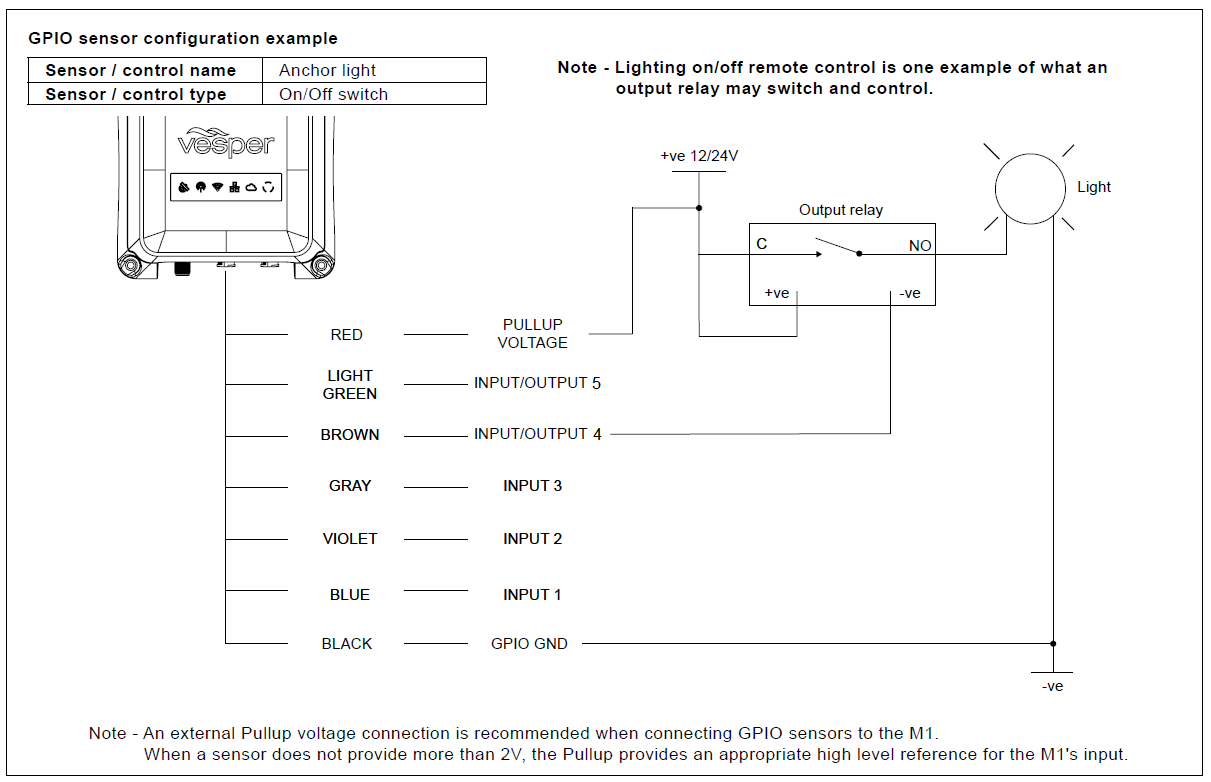

wiring diagram of the lighting remote control

Bilge Pump Activation Sensor

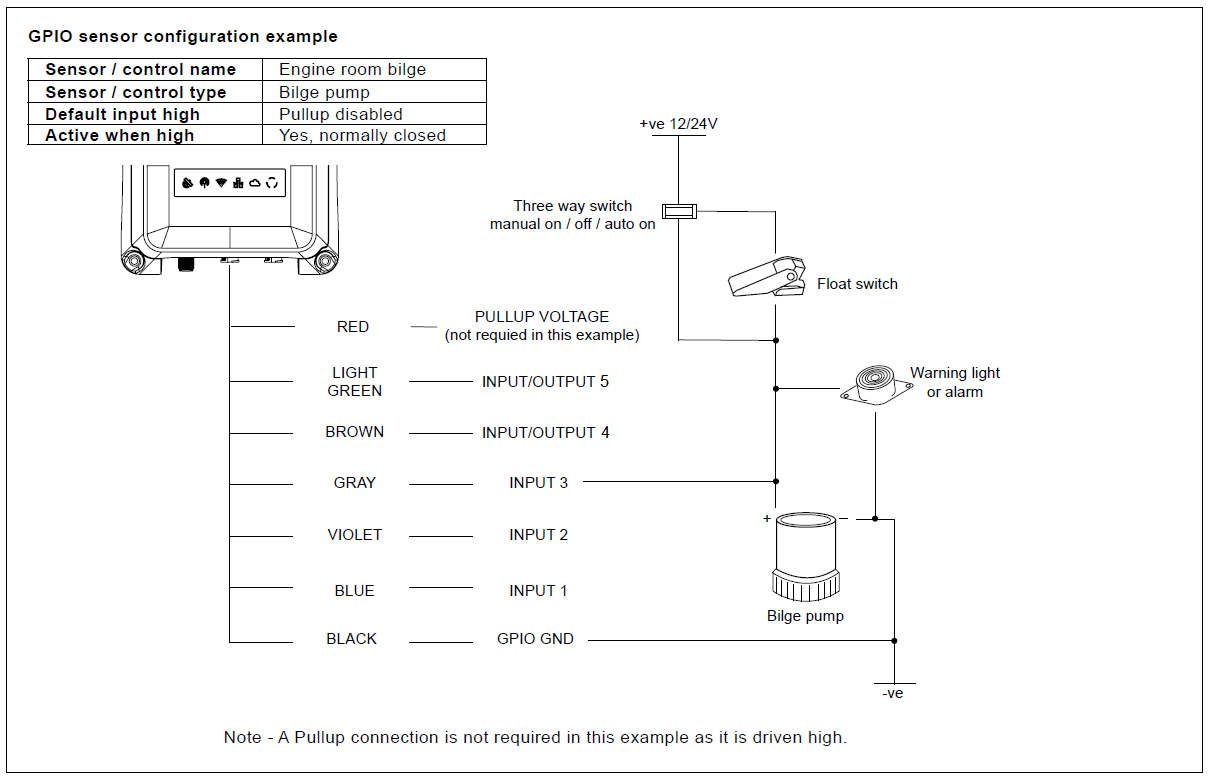

wiring for the bilge pump

Hatch / Door Open Sensor

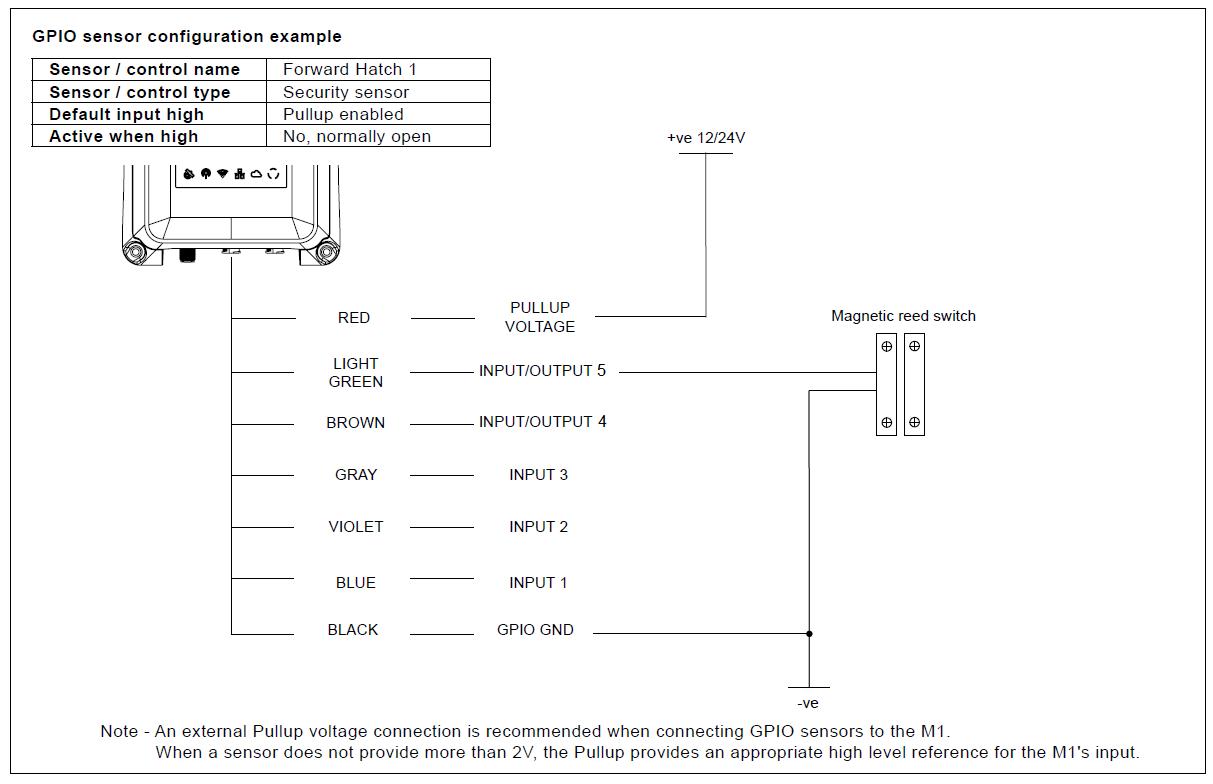

wiring for the hatch door sensor

Stealth Mode Switch

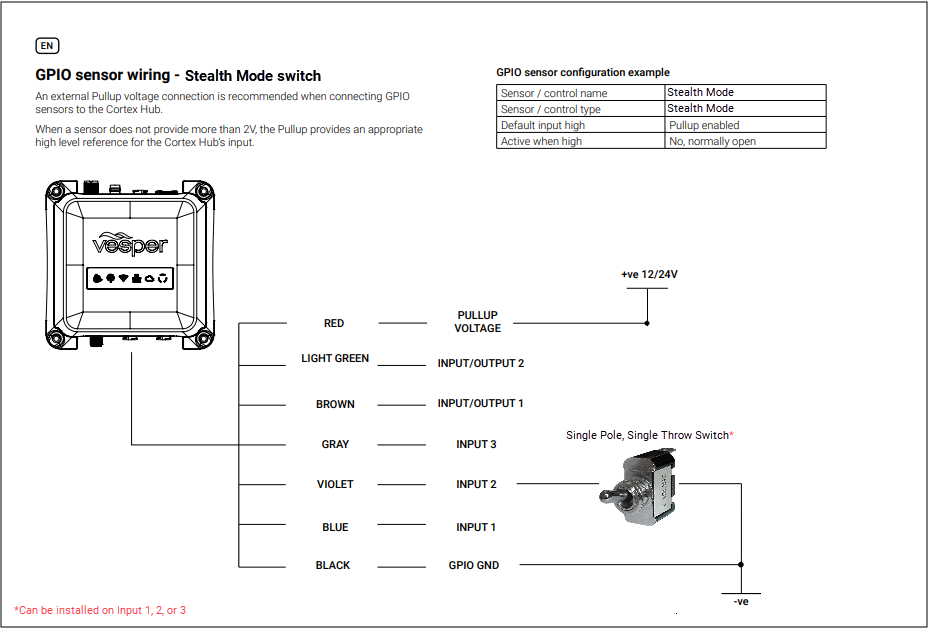

GPIO Sensor Wiring - Stealth Mode Switch
