Setting Up, Saving, and Clearing the Track Log on the eTrex Venture

The eTrex Venture® outdoor handheld draws an electronic Track Log on the Map page as you travel, and starts recording as soon as the unit gets a location fix. After you have used the eTrex® handheld for a few trips, the map display can become a bit crowded from keeping track of your every move. You can clean up the screen by clearing the track log (the lines left on the Map page). You can also save your current track log before clearing it.

Track Setup

  1. Press PAGE until the Main Menu page appears.

  2. Use the THUMBSTICK to highlight 'Tracks' and then press it in to select it.

  3. Use the THUMBSTICK to highlight and select 'On' or 'Off' to enable/disable track recording.

  4. Use the THUMBSTICK to highlight Options Icon, then press in on the the THUMB STICK to open the options menu.

  5. Highlight 'Tracks Log Setup' and then press in on the the THUMB STICK.

  6. You can check 'Wrap When Full' by highlighting it and then pressing in on the the THUMB STICK.

    You can highlight the 'Record Method' and 'Interval' fields and press in on the the THUMB STICK to display their options. 'Interval' options change to accommodate the 'Record Method' choices.

    eTrex Venture Track Log Setup


Saving the Current Track Log

  1. Use the THUMBSTICK to highlight 'Tracks' and then press it in to select it.

  2. Use the THUMBSTICK to highlight 'Save' and then press it in to select it.

  3. The Save Back Through window appears giving you a time frame for saving a track or 'Entire Log.'

    eTrex Venture Save Back Through

  4. Use the THUMBSTICK to highlight the time and date that you would like to save the track through, then press in on the THUMBSTICK to save the track log and display the Track page.

The track is now saved in the 'Saved Tracks' list on the Tracks page.


Clearing the Track Log

  1. Press PAGE until the Main Menu page appears.

  2. Use the THUMBSTICK to highlight 'Tracks' and then press it in to select it.

  3. Use the THUMBSTICK to highlight 'Clear' and then press it in to select it.

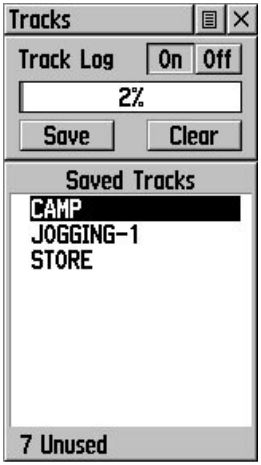

    eTrex Venture Tracks Page

  4. Use the THUMBSTICK to highlight 'Yes' and then press it in to select it.
