Connecting the XB8000 to WatchMate® iOS App

Connecting a XB8000 to an iOS device via Wi-Fi requires a few simple steps.

1. Power up the XB8000 device

   • Make sure it is functioning and indicating all is ok with its green status light

2. Check that the settings on the Wi-Fi on the iOS device are set to allow for local network connections. See Related Content

3. On the iOS device, select Settings

4. Select Wi-Fi

5. Find the SSID of the device

   • e.g. Vesper-XB-KW*****

     6. Click on this SSID and type in the password WatchMate for the XB8000

• Here the settings should include Auto join and Private Address.  It is normal to see the No Internet Connection banner

Now go to the WatchMate app on the iOS device. Open the device then do the following:

1. Press on the bottom right

2. Select Settings

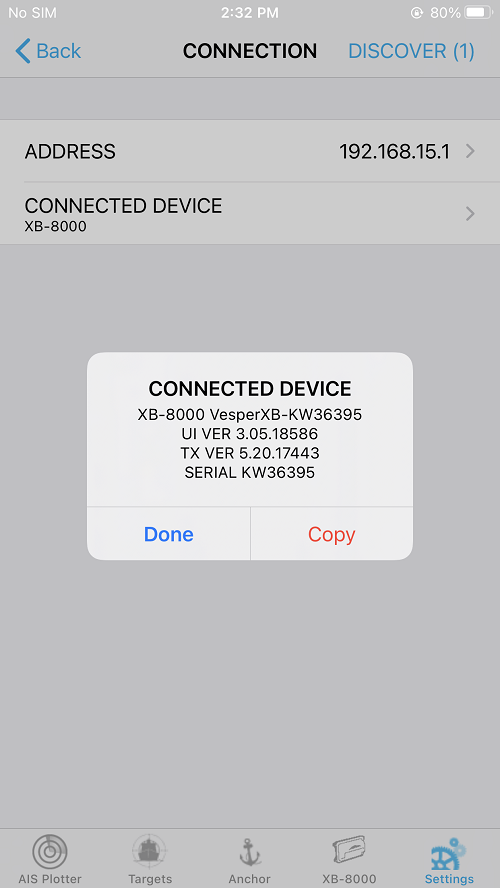

3. Select Connected Device

   • The IP address 192.168.15.1 will be listed here along with Connected Device "XB-8000"

The app can now be used.
