GI 275 Synthetic Vision Enablement
To Purchase/Install the GI 275 SVT Enablement in Fly.Garmin.com
Select the Devices tab.
Add your GI 275 with its System ID.
Select the GI 275.

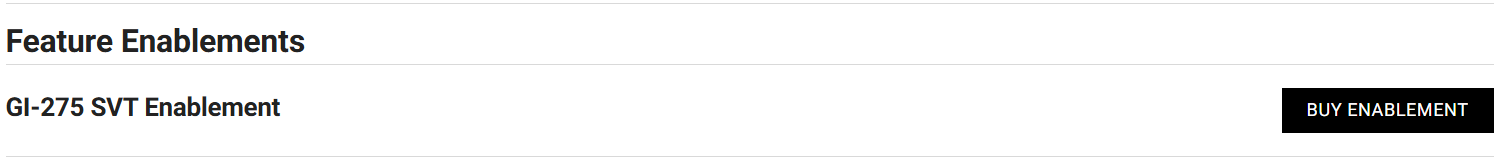

Scroll down and select Buy Enablement within the Feature Enablement section.
Once the enablement is purchased, select the Devices tab.
Select the GI 275.

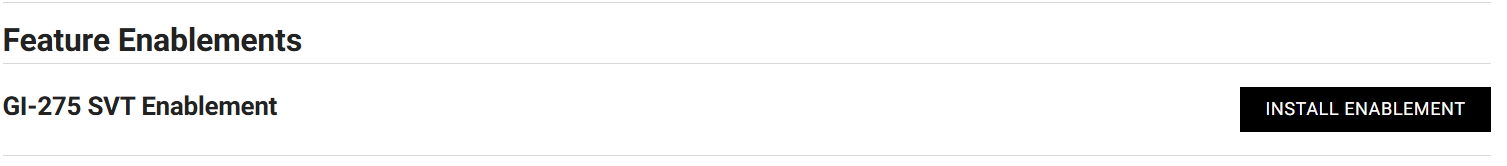

Scroll to the bottom on the Device Details page, and select Install Enablement within the Feature Enablement section.
This will take you to the Install Enablements section.
Plug your USB Drive into your computer and select the black Launch Garmin Aviation Database Manager button.
Once the Garmin Aviation Database Manager is open, follow the steps to install the feature enablement into your USB Drive.
Take the USB drive to the aircraft and plug it into your USB dongle, or GSB 15.
Power the avionics on.
Note: AHRS must be aligned, the unit must have a current heading, and GPS signal. There must also be a Terrain and Obstacle database installed, as well as a Magnetometer input.
Navigate to Options.
Touch Terrain SVT and verify there is a green bar under SVT.
Once synthetic vision is successfully installed, the USB Drive may be removed.
To find a Garmin Dealer, please visit the Garmin Dealer Locator.
See the product page for more information on the GI 275.
Watch these videos for more information on the GI 275.
Click here For information on how to install the Garmin Aviation Database Manager.
