Creating, Editing, or Deleting a Route on a dēzl Device Using Route Planner

Routes with multiple stops can be saved to the device for use at a later date by using the Route Planner app. The device will store up to 100 routes.

Select the relevant steps below to learn how to use Route Planner to plan a route on your device.

To Create a Route

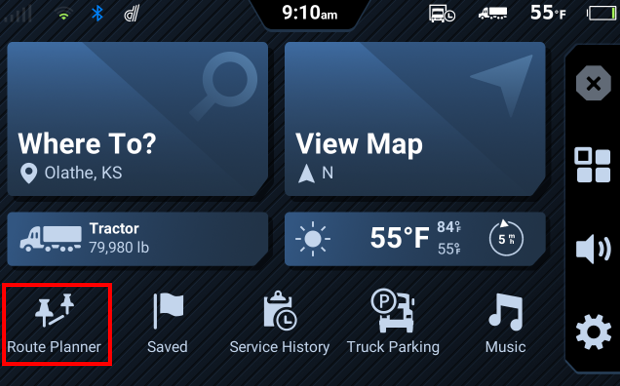

1. Touch Route Planner

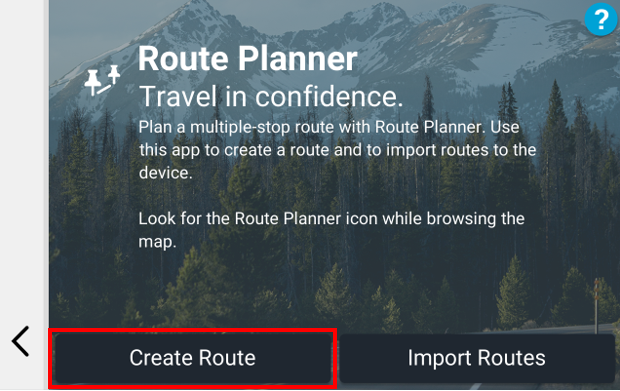

 2. Touch Create Route

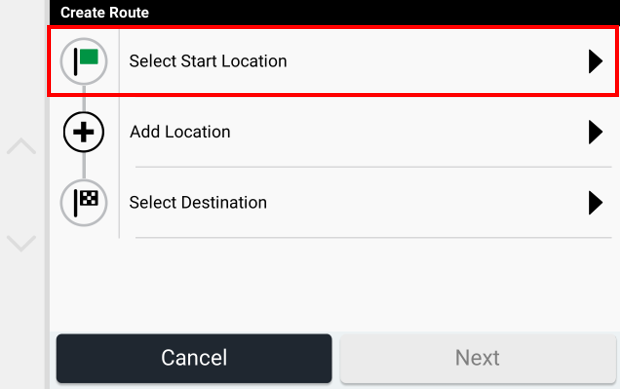

3. Touch Select Start Location

NOTE: The Start Location is the first stop on the route. You can use your current location as the starting location, but it isn't necessary. The device will skip your current location if that is where you are when it begins to navigate.

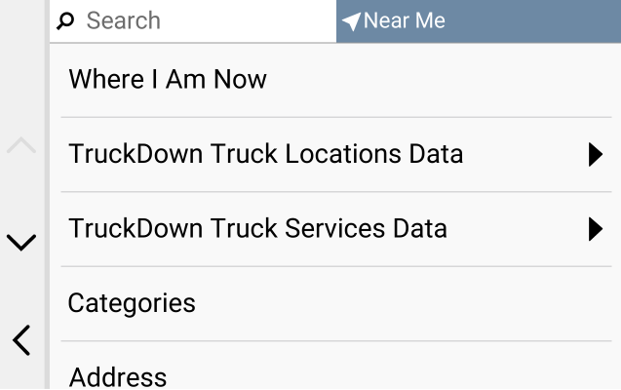

4. Select the starting point using the search options

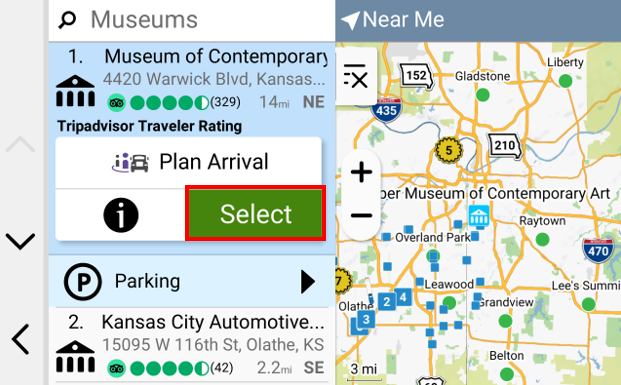

5. Touch Select

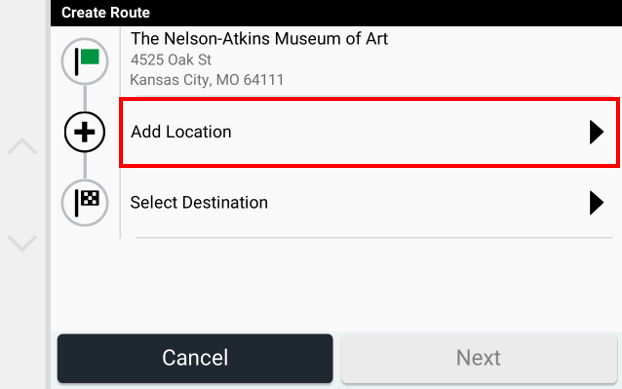

6. Touch Add Location to add a second point



7. Follow steps 4 through 6 to locate and add up to 30 total points. Touch a point to show additional options if changes need to be made.

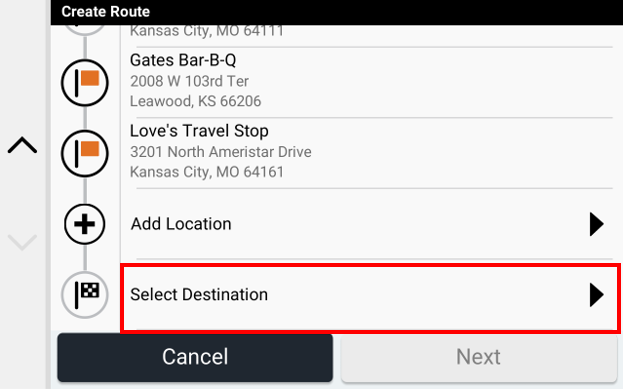

8. Touch Select Destination and follow steps 4 and 5 to select a destination

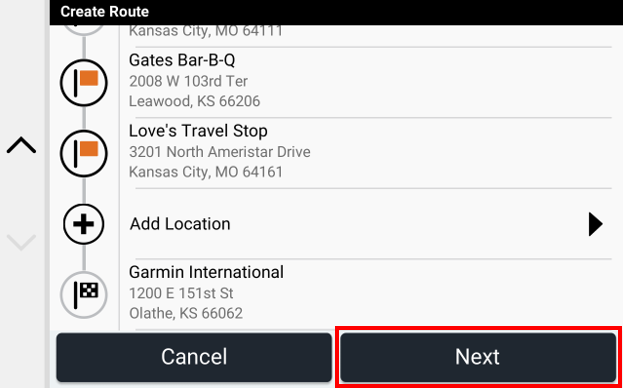

9. Touch Next. The route will now calculate

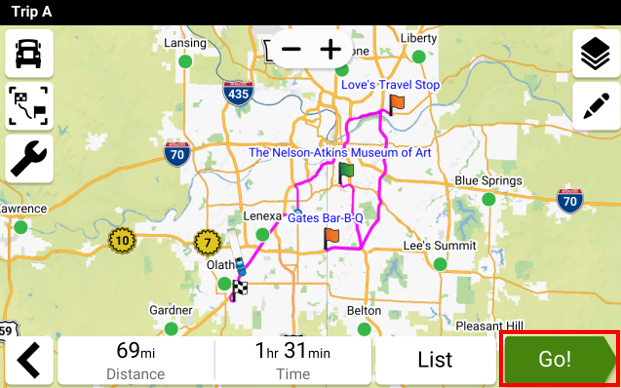

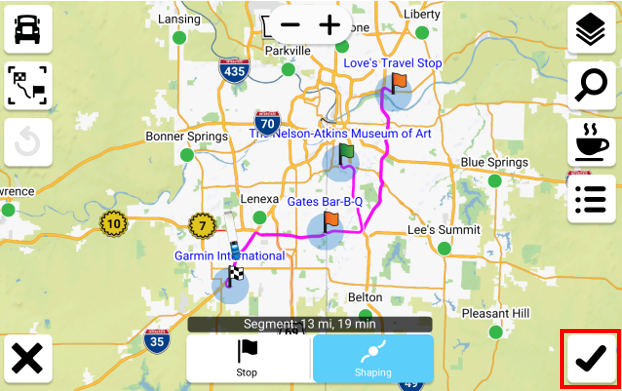

10. Review the route on the map. Touch the X if any changes need to be made. Touch the checkmark if no changes need to be made.

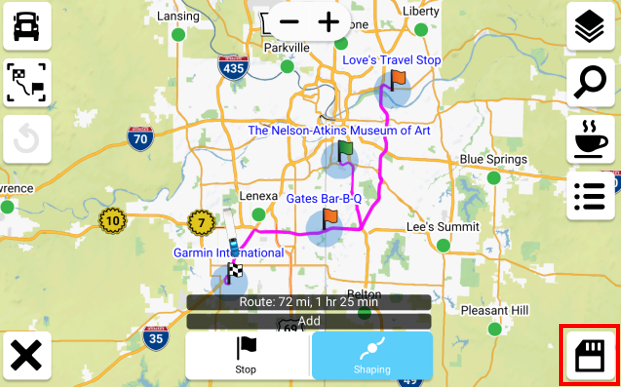

11. Touch the save button

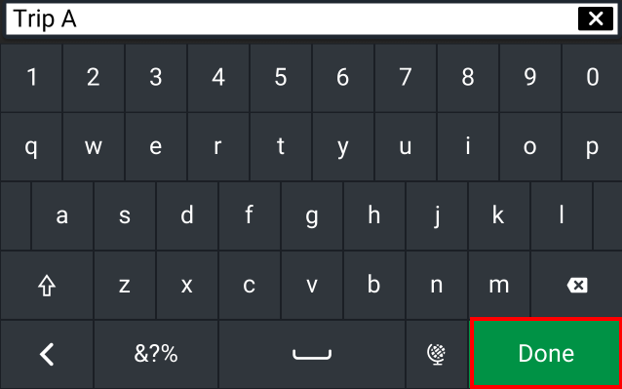

12. Type a name for the route and touch Done

The route is now saved to Route Planner.

To Add Shaping Points

You can insert shaping points to change how the route navigates.

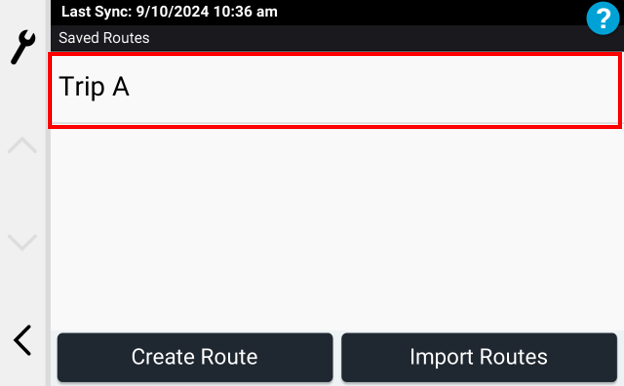

1. Select the saved route in Route Planner

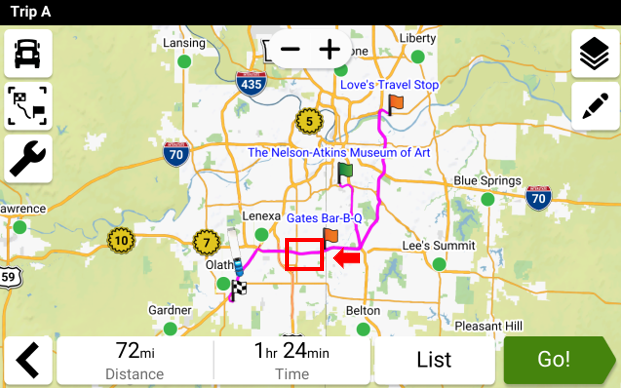

2. Begin by selecting a route segment, which is a section of the route between two locations

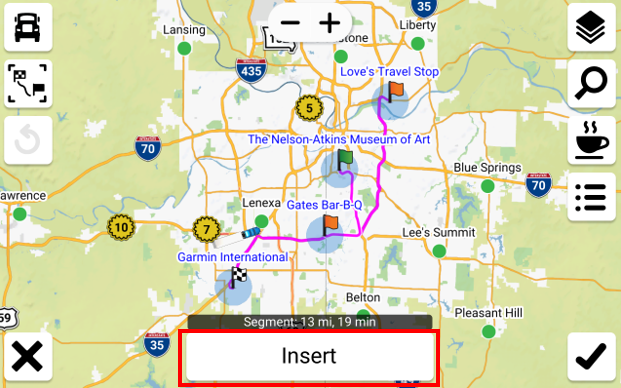

3. Touch Insert

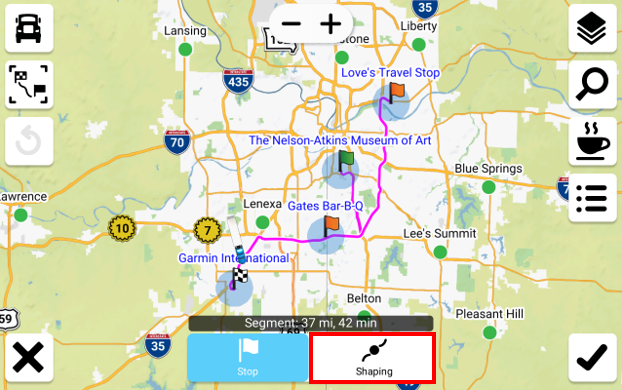

4. Touch Shaping

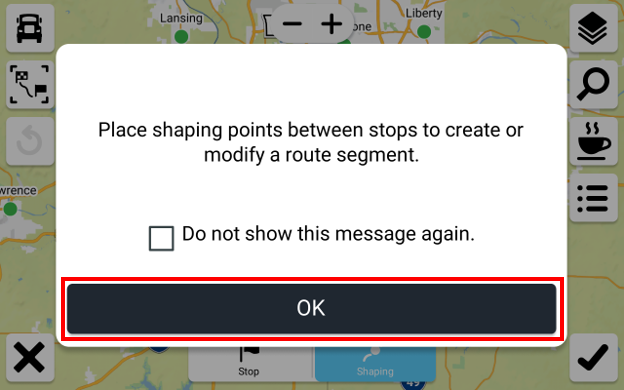

5. Touch OK

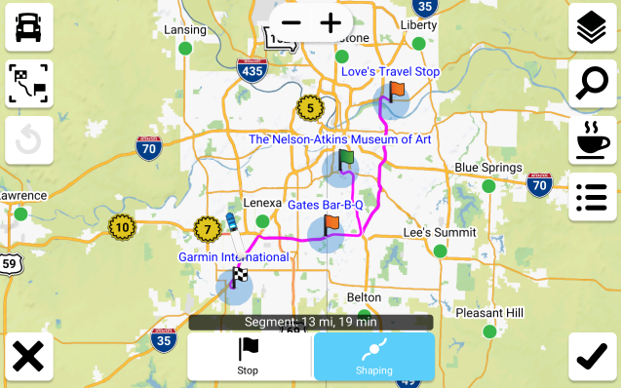

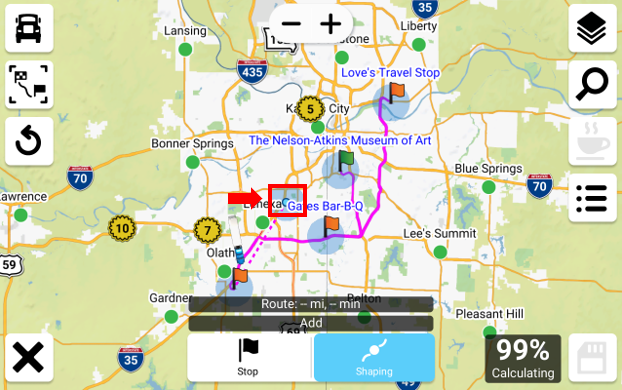

6. Touch a spot on the map to shape the route

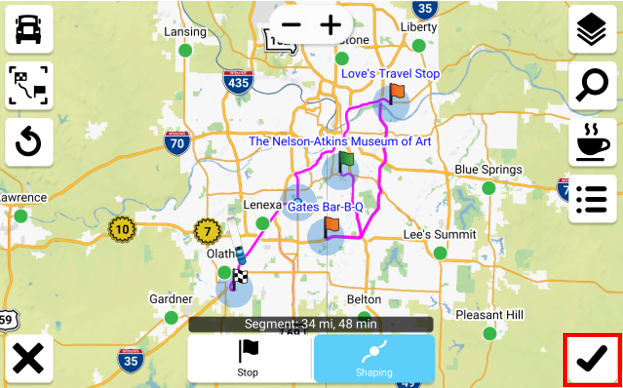

7. Touch the check mark to confirm



8. Touch the save button to save changes



9. Touch Go to start the route



To Edit a Route from the List Screen

1. Touch Route Planner

2. Touch the name of the route you want to edit

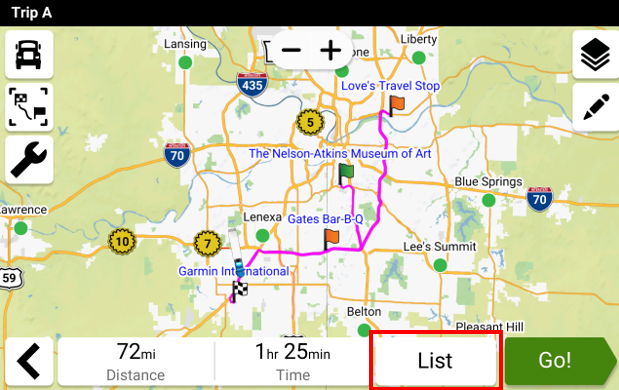

3. Touch List

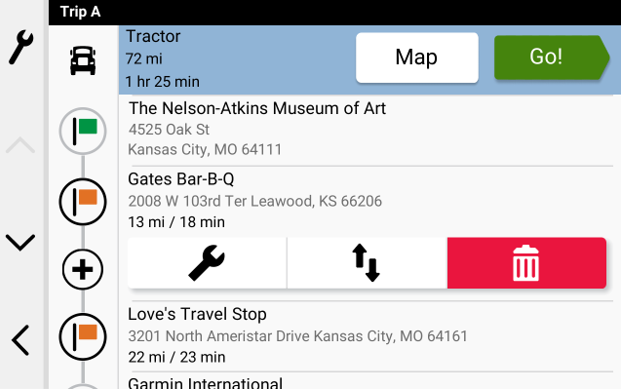

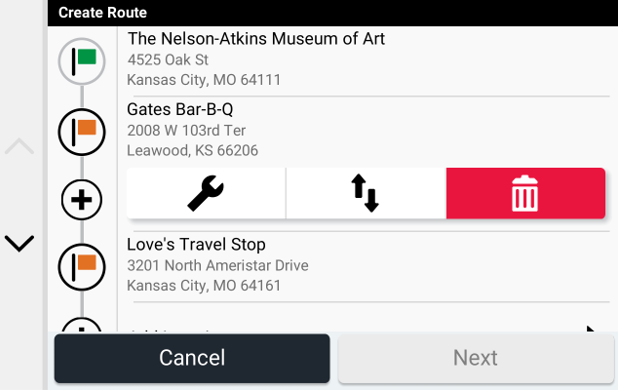

4. Touch a point to show additional options if changes need to be made.



  • Touch the add icon to add a stop between locations.

  • Touch the  wrench icon to change a location.

  • Touch to change the order of points.

    • Touch and hold the  move icon next to a point and drag it to a location on the list.

  • Touch the orange flag icon if you wish to convert a waypoint into a shaping point

    • This builds a route passing through that point without navigating to it

    • The icon will change to a   blue shaping point icon and the route will recalculate

  • Touch the  delete icon to remove a point

    • Then touch Yes

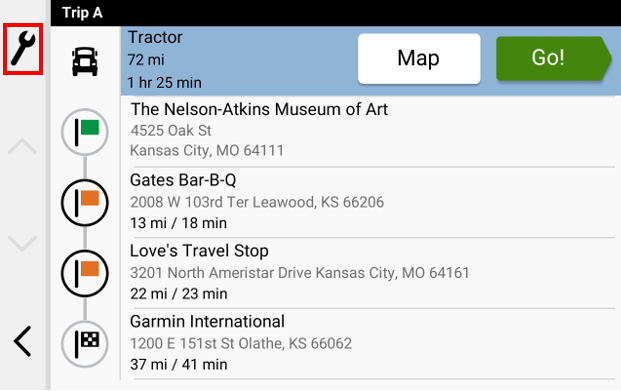

5. Touch the wrench icon for more editing options.



  • Select from the following options:

    • Delete: Removes the route from Route Planner.

    • Duplicate: Create the same route again.

    • Optimize Order: Change the order of the points in the route to the most efficient route.

      • A software update may be required to access the option.

    • Rename: Change the name of the route.

    • View Turns: View turn-by-turn written directions.

    • Suggested Attractions: Suggest attractions along the route to add to the route.

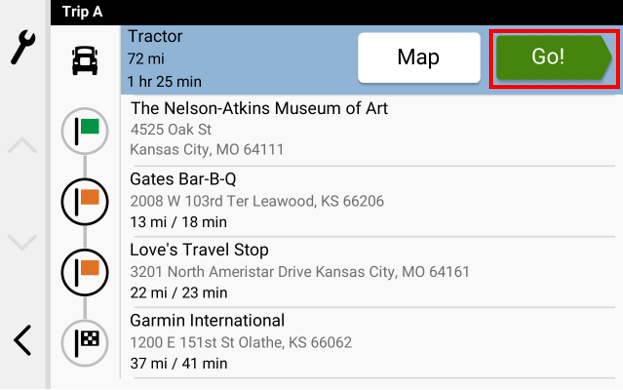

6. Touch Go! to proceed with navigation.



The device will now calculate and begin the route.

To Edit a Route from the Map Screen

1. Touch Route Planner

2. Touch the name of the route you want to edit.

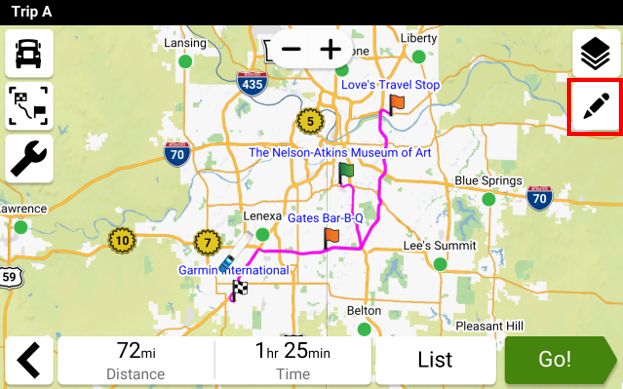

3. Touch the Pencil icon

4. Touch Insert

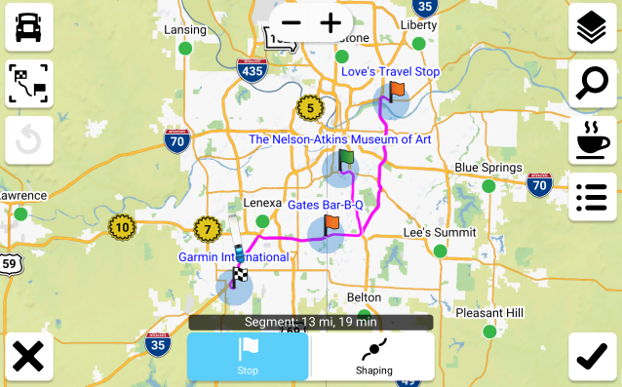

5. Use the options below to edit the route:
  • Touch Stop to add a Waypoint to the route by touching the map
  • Touch Shaping to add a shaping point to the route by touching the map
  • After adding a shaping point, select the List icon, then move or reorder the shaping points as needed.

  • Touch the Three squares icon to enable additional map layers

  • Touch the Search icon to search for Points of Interest

  • Touch the Coffee icon to search ahead along the route

  • Touch the List icon to Reorder locations

  • Touch the Vehicle icon  to switch the vehicle profile between car and truck

    • The Trip will be calculated based on what vehicle profile was selected for the Trip within the planner, regardless of what profile is currently chosen on the device. Additionally, the Trip will be calculated based on the device's current navigation settings as well; navigation settings cannot be adjusted within the planner.

  • Touch the Route Preview icon  to center the map to display the full route

  • Touch the Undo Arrow to undo any unwanted changes made to the route

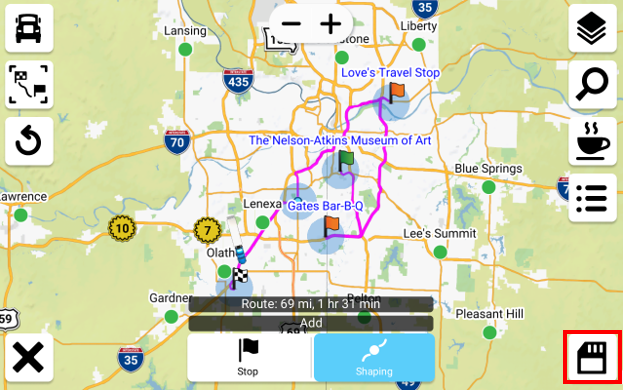

  • Touch the Save icon to save any changes made to the route

To Delete a Route

1. Touch Route Planner

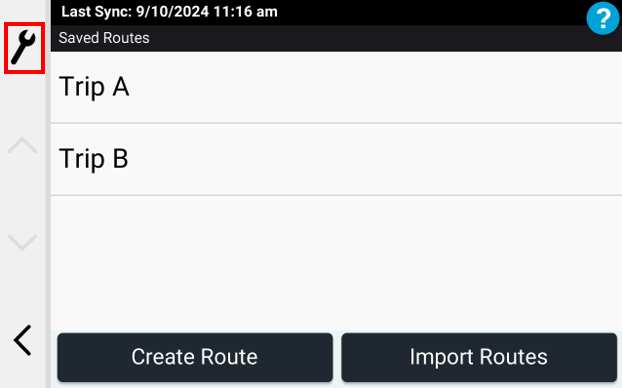

2. Touch the wrench icon

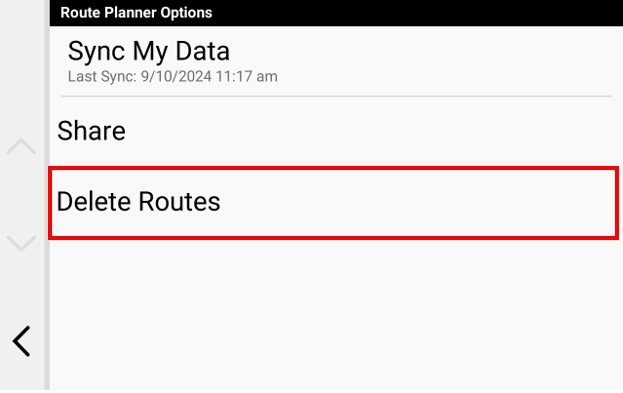

3. Touch Delete Routes

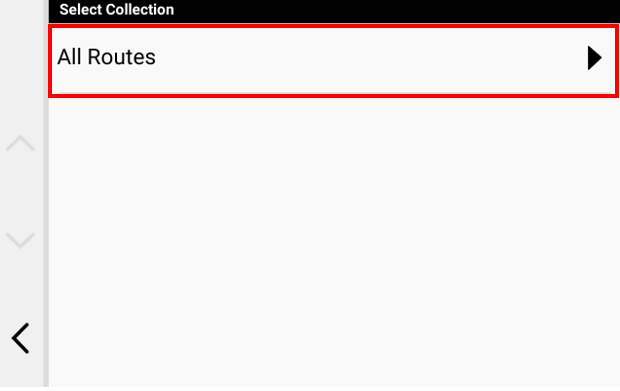

4. Select All Routes

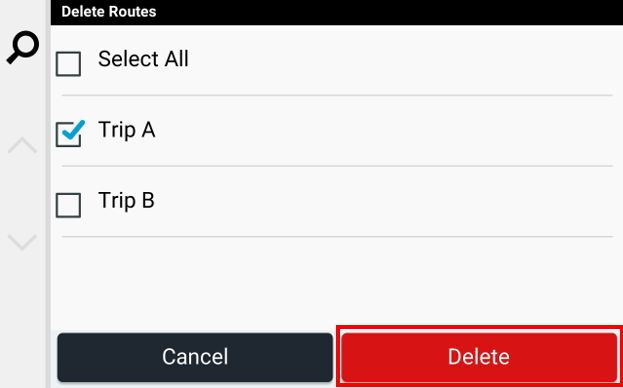

5. Select the routes to delete and touch Delete

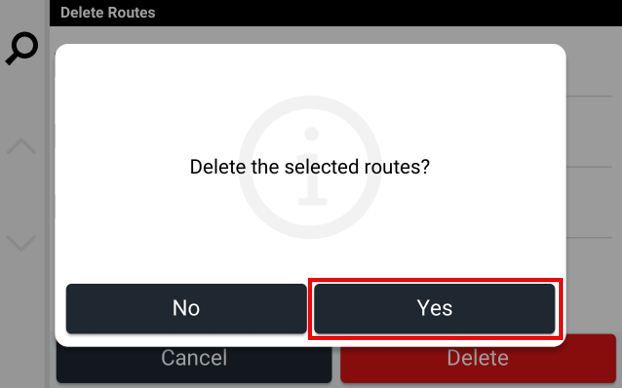

6. Touch Yes



The selected routes will now be deleted.

To Start Navigating a Saved Route

1. Touch Route Planner

2. Select the Route

3. Touch Go

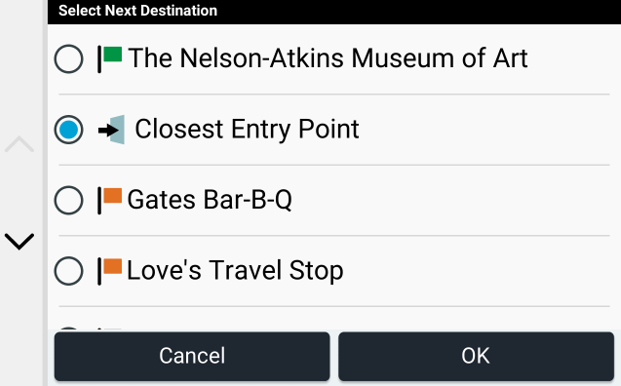

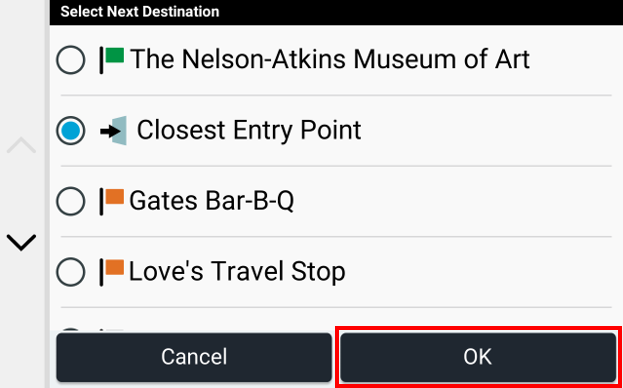

4. Select the Next Destination of the Route

  • Select the Green Flag to route from your current location to the beginning of the route, and then the full route.

  • Select the Orange Flag to skip the starting location and route from your current location to the waypoint selected in the route, and then the remaining route destinations in order.

  • Select the Checkered Flag to route from your current location skipping all the points in the route and taking you the quickest way to the destination point.

  • Select the Closest Entry Point to skip the starting location and calculate the quickest way to get on the planned route.

5. Touch OK

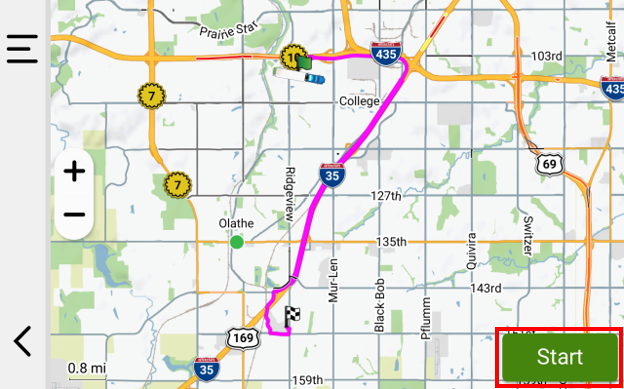

6. Touch Start
