View Upcoming Elevation Change on the Camper/RV 660 Device

To help avoid or plan for steep uphill or downhill grades along your current route:

Note: The device must be in an active route for the Elevation option to be selected.

1. Touch View Map

2. Touch the 3 Bars

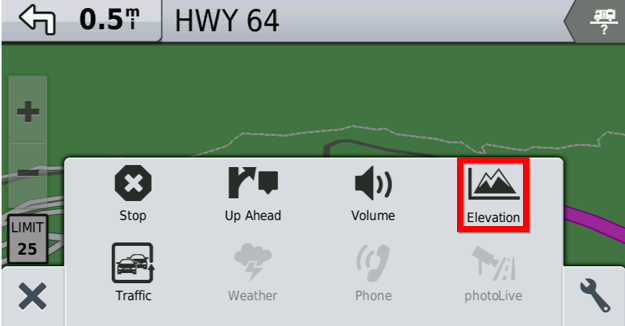

3. Touch Elevation

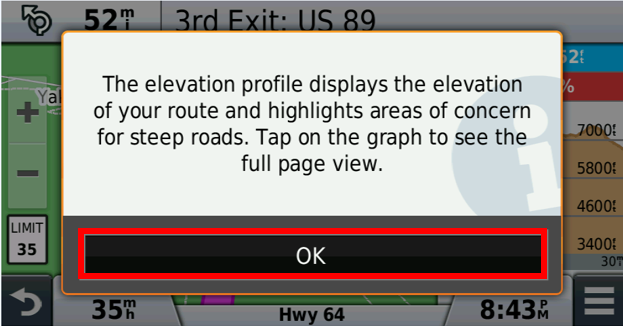

4. Touch OK if prompted

5. Touch the chart to expand it to the full screen

The device will now display the current elevation, distance to the next steep grade, and a chart of elevation over distance.

• The blue line represents your current location on the route
• The brown line represents a tunnel

Steep grades are highlighted in red on the chart. Selecting the + or - will change the distance range of the chart and swiping left or right will scroll the chart.

A grade alert will appear when approaching a grade warning sign on the road. If the alert shows a grade percentage, it will be from the warning sign on the road.
