My Basemap and Terrain Cycle is not Matching what is on flyGarmin

This support article explains why the Basemap and Terrain information displayed on your Garmin integrated flight deck, including the G1000®, G1000® NXi, G3000®, and G5000® might differ from the cycle numbers listed on the flyGarmin® website.

The database update schedule from flyGarmin will show the latest available cycle number for each specific database, including the Basemap and Terrain databases.


Basemap:

  • G1000: The startup page displays a software version, not a cycle number.  Use the table below to correlate the software version to the Basemap cycle.

Basemap Cycle Numbers and Versions

Basemap Cycle 24M1 - Version 5.21 or Version 2.06Basemap Cycle 22M1 - Version 5.20 or  Version 2.05Basemap Cycle 20M3 - Version 5.19 or Version 2.04
Basemap Cycle 20M2 - Version 5.18Basemap Cycle 20M1 - Version 5.17Basemap Cycle 19M1 - Version 5.16
Basemap Cycle 18M1 - Version 5.15Basemap Cycle 17M1 - Version 5.14Basemap Cycle 16M1 - Version 5.13
Basemap Cycle 15M1 - Version 5.12/5.11Basemap Cycle 14M1 - Version 5.10/.01/.00End


  • G1000 NXi, G3000, G5000: The startup page also displays a software version for Basemap.  Find the Basemap cycle from the Databases page on the avionics or use the table above for correlation.

Examples:

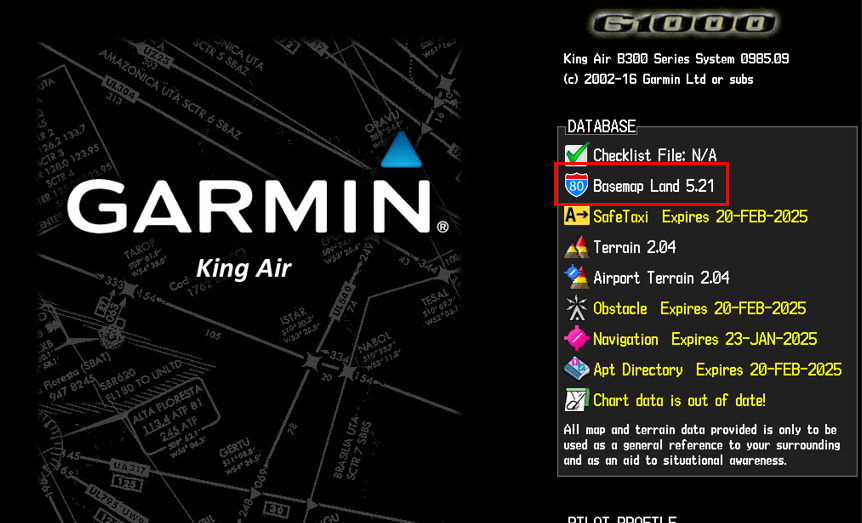

  • G1000 Example of Basemap from the Start Up page:
    • G1000 basemap
  • G1000 NXi Example of Basemap from the Start Up page:
    • G1000 NXi Startup Screen basemap

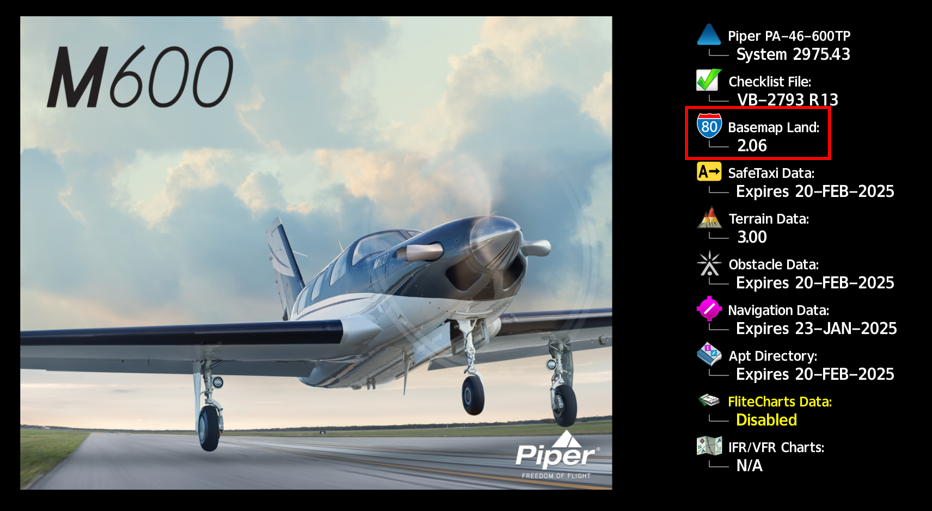

  • G3000 and G5000 Example of Basemap from the Start Up page:
    • G3000 basemap splash screen

Terrain:

  • The Start Up page may show a software version instead of a cycle number.
  • To find the Terrain cycle number:
    • G1000: Check the Aux - System Status page.
    • G1000 NXi: Check the Aux - Databases page.
    • G3000/G5000: Check the Database Status page (accessible from the GTC).

Examples:

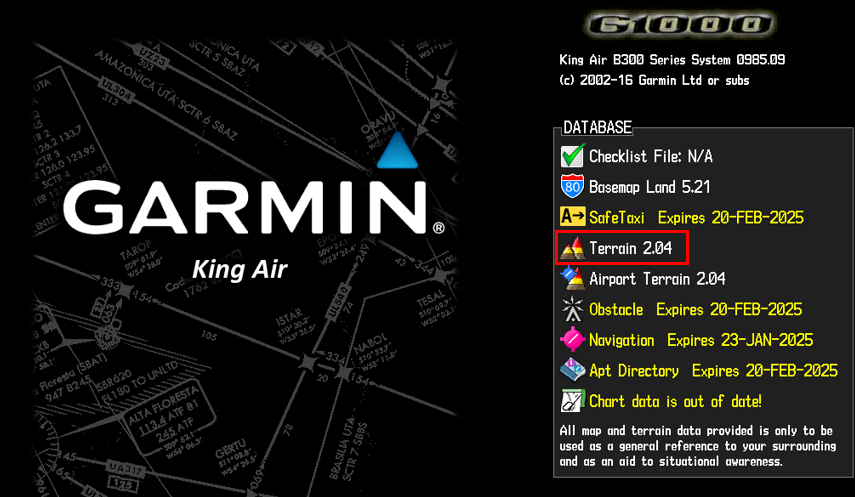

  • G1000 Example from the Start Up page for Terrain:
    • G1000 terrain splash screen

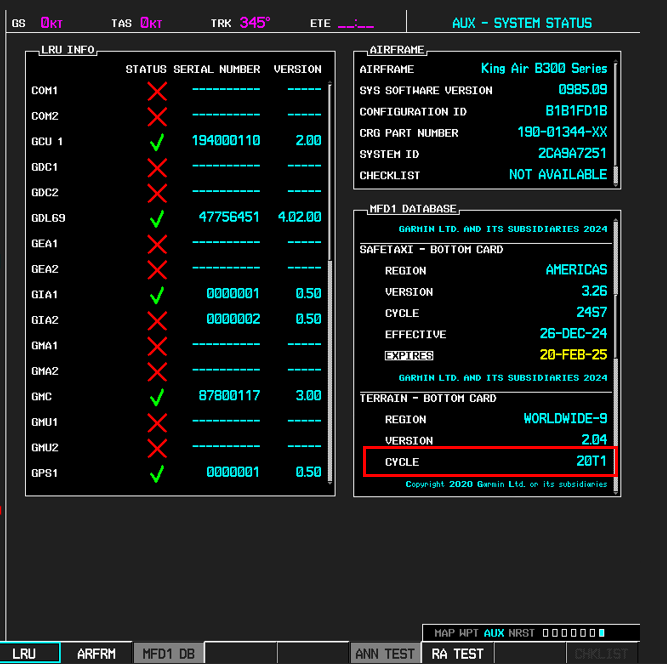

  • G1000 Example from the System Status page for Terrain:
    • G1000 terrain sys status

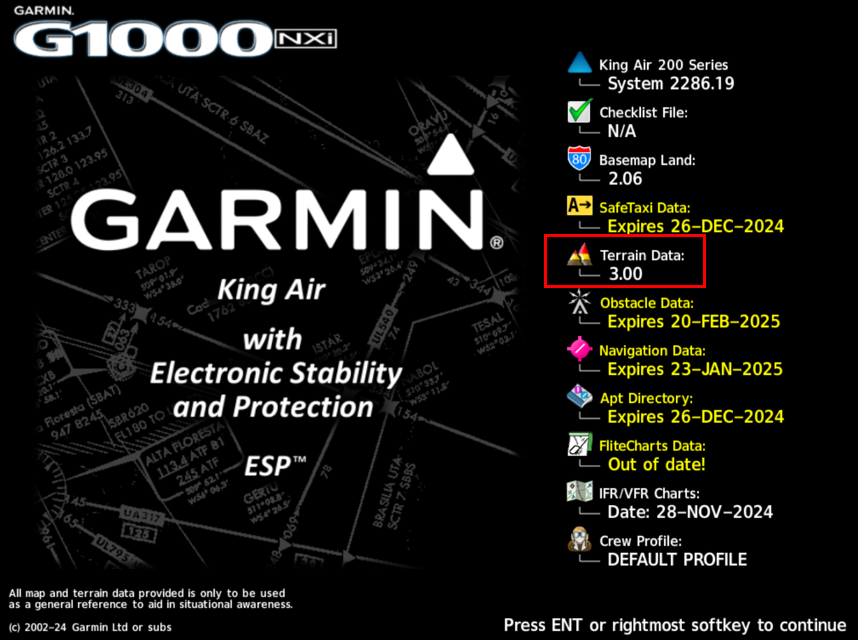

  • G1000 NXi Example from the Start Up page for Terrain:
    • G1000 NXi Startup Screen terrain

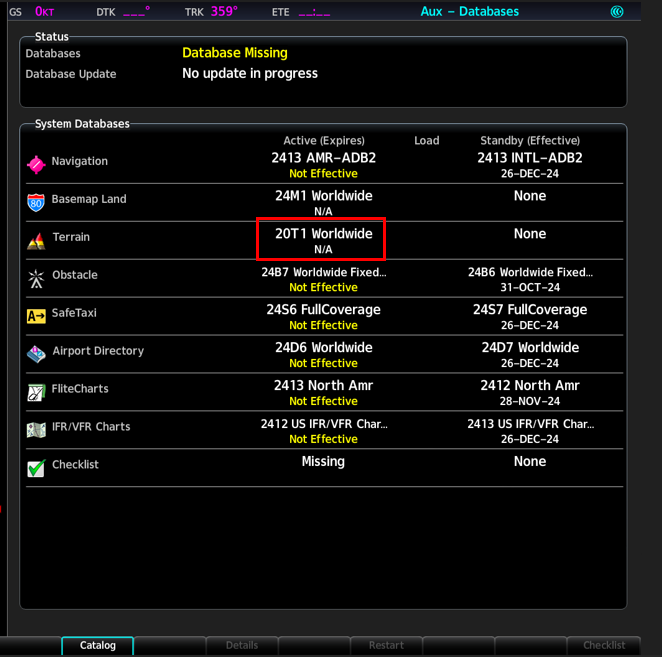

  • G1000 NXi Example from the Aux - Databases page for Terrain:
    • G1000 NXi Aux - Databases - terrain

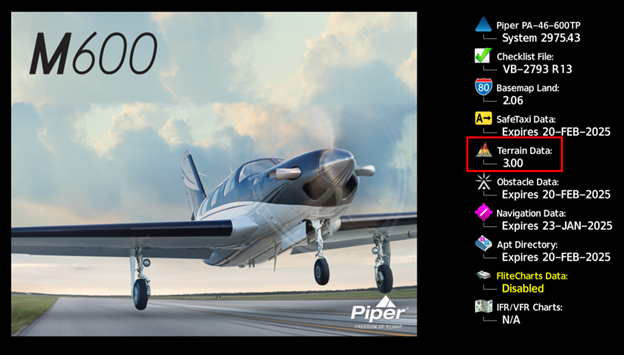

  • G3000 and G5000 Example from the Start Up page for Terrain:
    • G3000 terrain startup page

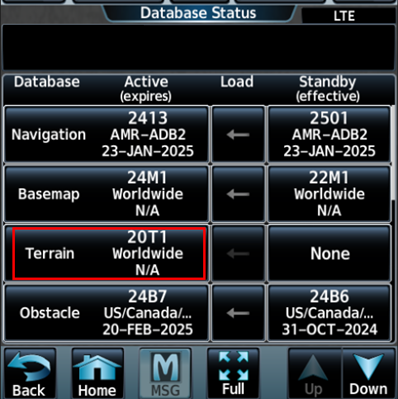

  • G3000 and G5000 Example from the Database Status page for Terrain from the GTC:
    • g3000 terrain database status

Important Notes:

  • Terrain and Basemap databases are released on an "as-needed" basis, not on a regular schedule.
  • These databases do not have effective or expiration dates.
